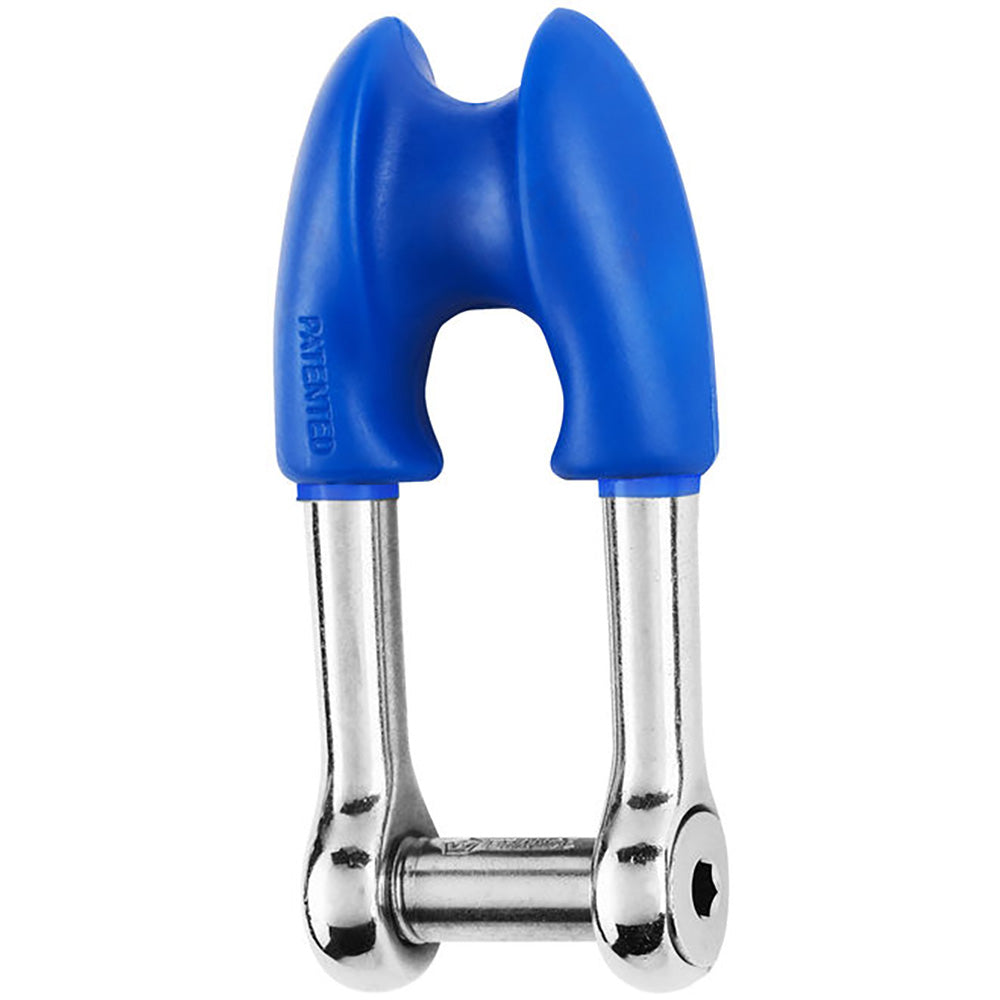

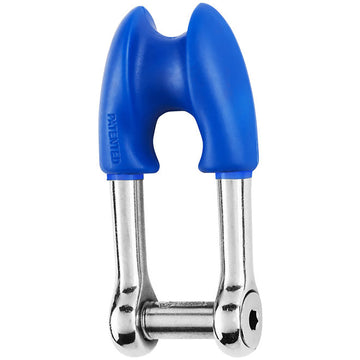

Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"
Wichard Thimble Shackle Allen Head Pin offers unmatched durability and security tailored for marine and industrial applications. Crafted from grade 316L stainless steel, this thimble shackle ensures a reliable connection, allowing a rope to be spliced seamlessly without the need for an additional thimble.
Key Features:
- Forged Construction: Made from high-quality 316 stainless steel, providing exceptional corrosion resistance and longevity.
- Captive Pin Design: The innovative captive pin feature eliminates the risk of losing the pin during use, enhancing safety.
- High Load Capacity: With a working load limit of 3350 lb (1520 kg) and a breaking load of 11020 lb (5000 kg), it meets demanding nautical and industrial standards.
Ideal for sailors and marine professionals needing reliable hardware, this product is supported by a robust safety factor of 5 times the breaking load, ensuring quality and satisfaction in every use.
Upgrade your rigging system today with the Wichard Thimble Shackle, and experience the perfect balance of strength, reliability, and innovation!
Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"
Features:
- Thimble shackle with allen head pin forged in grade 316L stainless steel
- Allows a rope to be spliced without adding and additional thimble
- With the captive pin, no risk to lose the pin
- Outstanding working and breaking loads
Applications:
- Mainsheet halyards
- Max rope size: 16 mm
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 3350 / (kg) 1520
- Breaking load: (lb) 11020 / (kg) 5000
- Weight: (lb) 0.313 / (g) 142

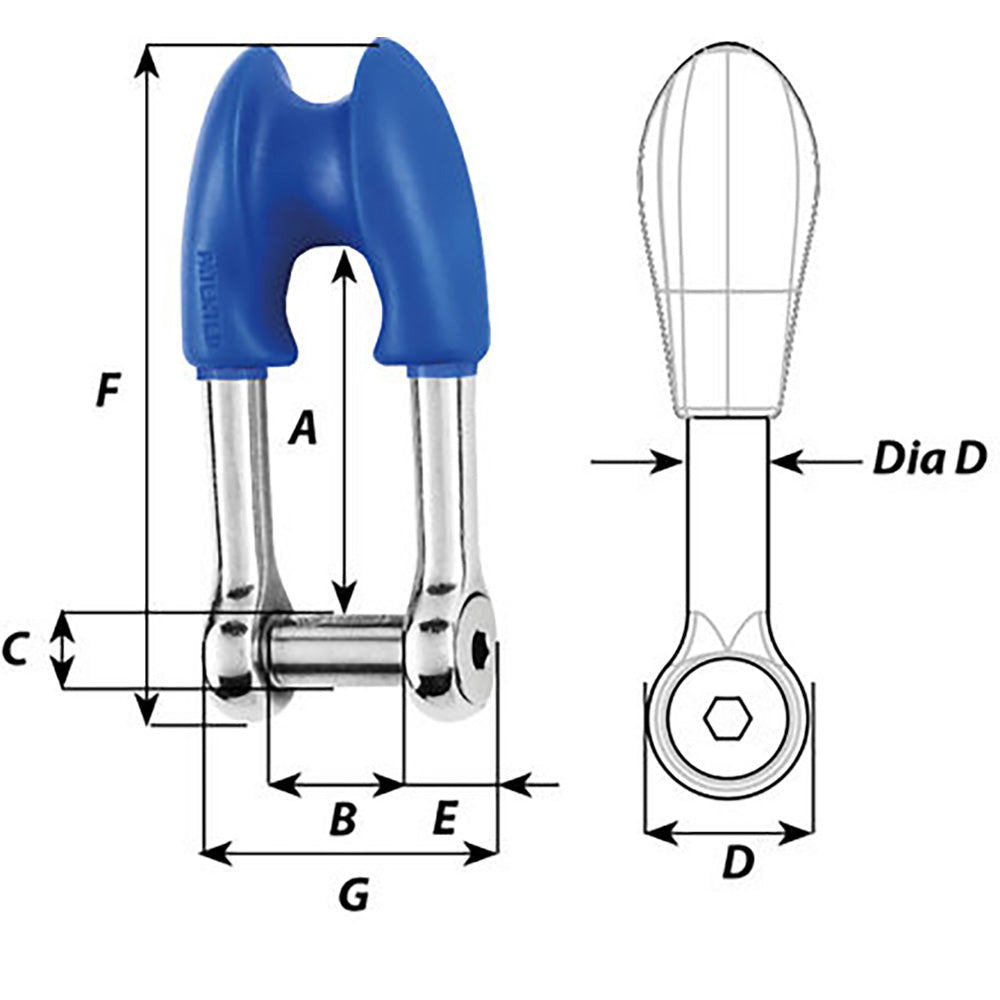

Dimensions:
- A: (inch) 2 1/64" / (mm) 51
- B: (inch) 25/32" / (mm) 20
- C: (inch) 25/64" / (mm) 10
- D: (inch) 25/32" / (mm) 20
- D diameter: (inch) 25/64" / (mm) 10
- E: (inch) 5/16" / (mm) 8
- F: (inch) 3 25/32" / (mm) 96
- G: (inch) 1 39/64" / (mm) 41
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
