Wichard Self-Locking Large Opening Shackle - 6mm Diameter - 1/4"
Wichard Self-Locking Large Opening Shackle offers unmatched security and reliability tailored for industrial lifting applications. Crafted from high-quality grade 316L stainless steel, this shackle is designed to withstand the rigors of demanding environments.
Key Features:
- Self-Locking Mechanism: The pin securely locks into one of the indentations, eliminating the risk of loosening from vibrations.
- Outstanding Load Capacity: With a working load limit (WLL) of 660 lbs (300 kg) and a breaking load of 3300 lbs (1500 kg), this shackle is perfect for robust lifting tasks.
- Durable Construction: Made from 316 stainless steel, it guarantees long-lasting performance and corrosion resistance in various applications.
Ideal for industrial settings where safety and reliability are paramount, this product is supported by a CE marking, ensuring compliance with rigorous quality standards. Experience peace of mind knowing you are using a high-performance shackle designed for heavy-duty applications. Upgrade your lifting equipment today!
Self-Locking Large Opening Shackle - 6mm Diameter - 1/4"
Features:
- Self-locking large shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- For applications where a large opening shackle is required
Specifications:
- Materials 316 stainless steel grade
- Working load: (lb) 990 / (kg) 450
- WLL: (lb) 660 / (kg) 300
- Breaking load: (lb) 3300 / (kg) 1500
- Weight: (lb) 0.06 / (g) 27

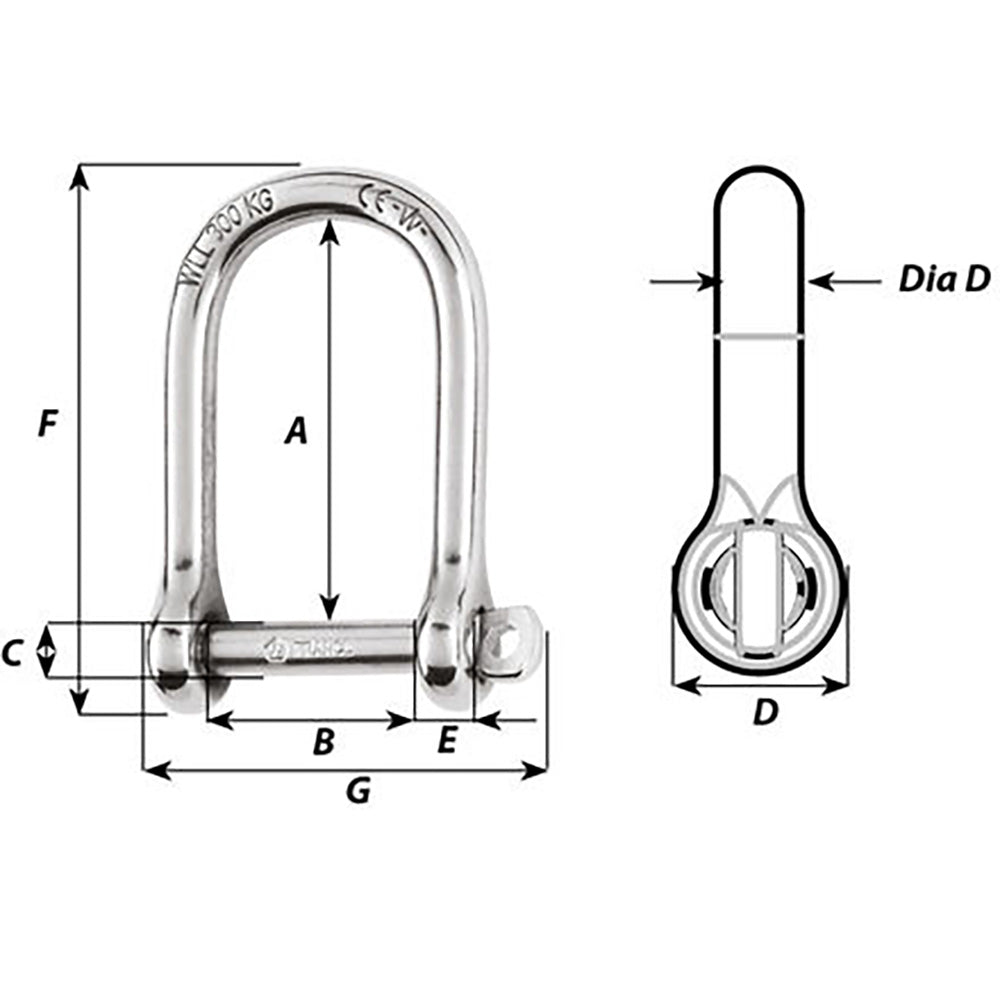

Dimensions:
- A: (inch) 1 21/32" / (mm) 42
- B: (inch) 1 / (mm) 25.5
- C: (inch) 15/64" / (mm) 6
- D: (inch) 35/64" / (mm) 14
- D diameter: (inch) 15/64" / (mm) 6
- E: (inch) 15/64" / (mm) 6
- F: (inch) 2 9/32" / (mm) 58
- G: (inch) 1 47/64" / (mm) 44
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
