Wichard Self-Locking Large Opening Shackle - 10mm Diameter - 13/32"

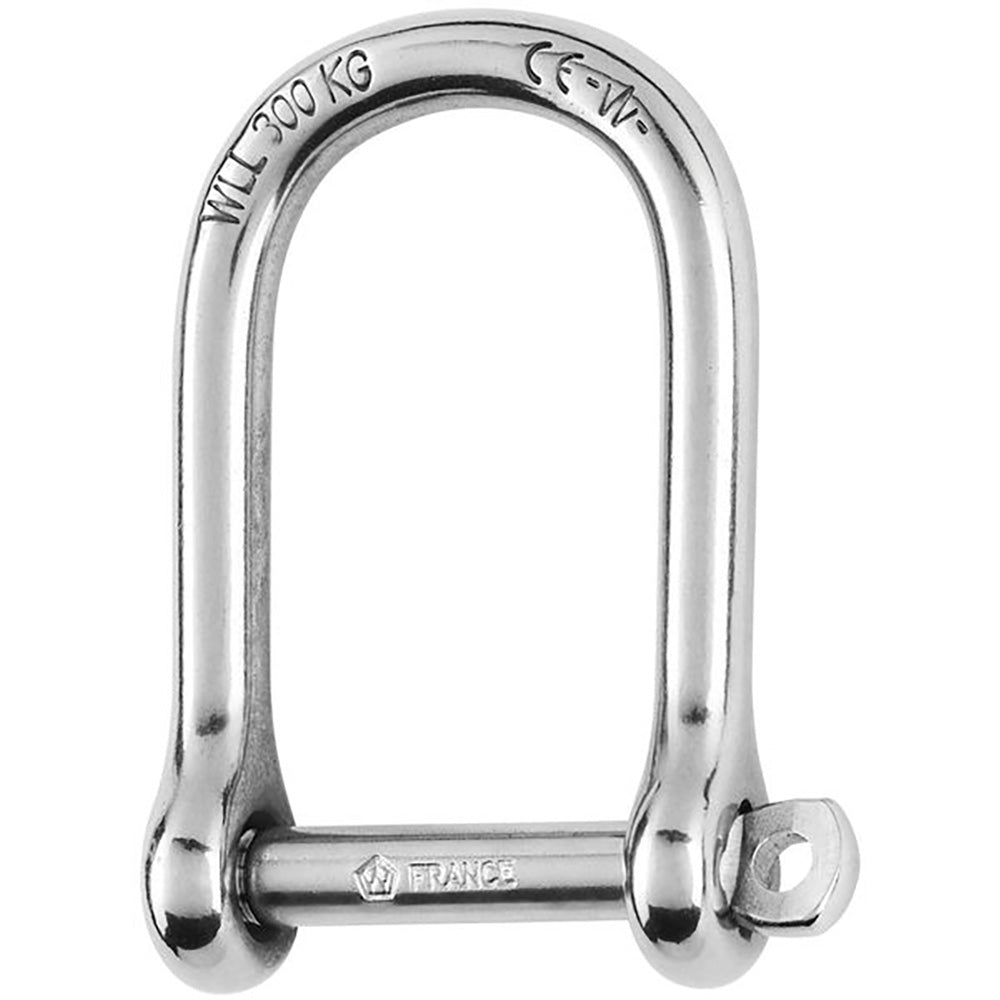

Wichard Self-Locking Large Opening Shackle offers unmatched security and durability tailored for industrial lifting applications. This high-quality shackle is forged from grade 316L stainless steel, ensuring it remains reliable even under demanding conditions.
Key Features:
- Self-Locking Mechanism: The pin securely locks into one of the indentations, eliminating any risk of loosening due to vibrations.
- Exceptional Strength: With a working load limit (WLL) of 1760 lb (800 kg) and a breaking load of 8810 lb (4000 kg), it’s designed for heavy-duty use.
- Large Opening Design: Ideal for applications requiring a larger shackle opening, offering versatility in various lifting situations.
Ideal for heavy lifting in industrial settings, this product is supported by CE marking, ensuring quality and satisfaction. With a safety factor of five times the breaking load, you can trust the Wichard Self-Locking Shackle for all your lifting needs.
Upgrade your lifting equipment today with the Wichard Self-Locking Large Opening Shackle and experience the difference!
Self-Locking Large Opening Shackle - 10mm Diameter - 13/32"
Features:
- Self-locking large shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- For applications where a large opening shackle is required
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 2820 / (kg) 1280
- WLL: (lb) 1760 / (kg) 800
- Breaking load: (lb) 8810 / (kg) 4000
- Weight: (lb) 0.28 / (kg) 4000

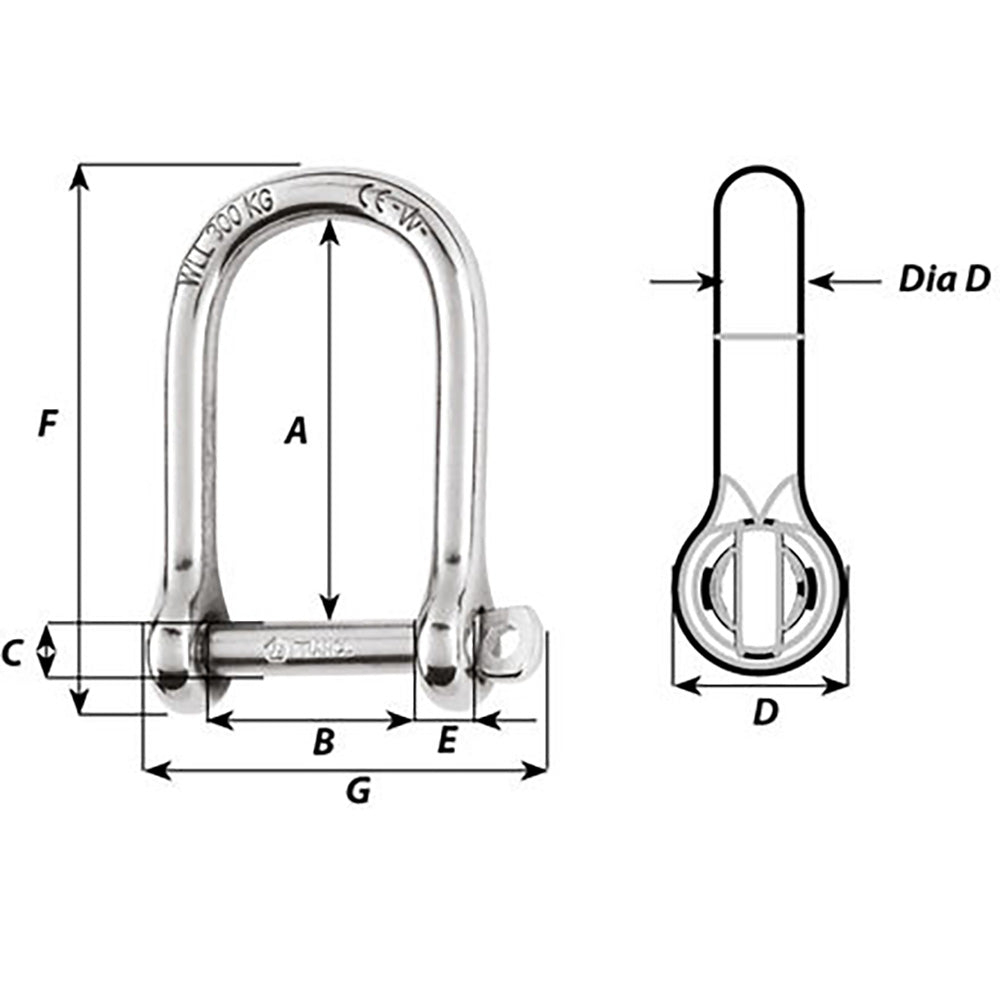

Dimensions:
- A: (inch) 2 53/64" / (mm) 72
- B: (inch) 1 37/64" / (mm) 40
- C; (inch) 25/64" / (mm) 10
- D: (inch) 53/64" / (mm) 21
- D diameter: (inch) 25/64" / (mm) 10
- E: (inch) 25/64" / (mm) 10
- G: (inch) 2 51/64" / (mm) 71
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
