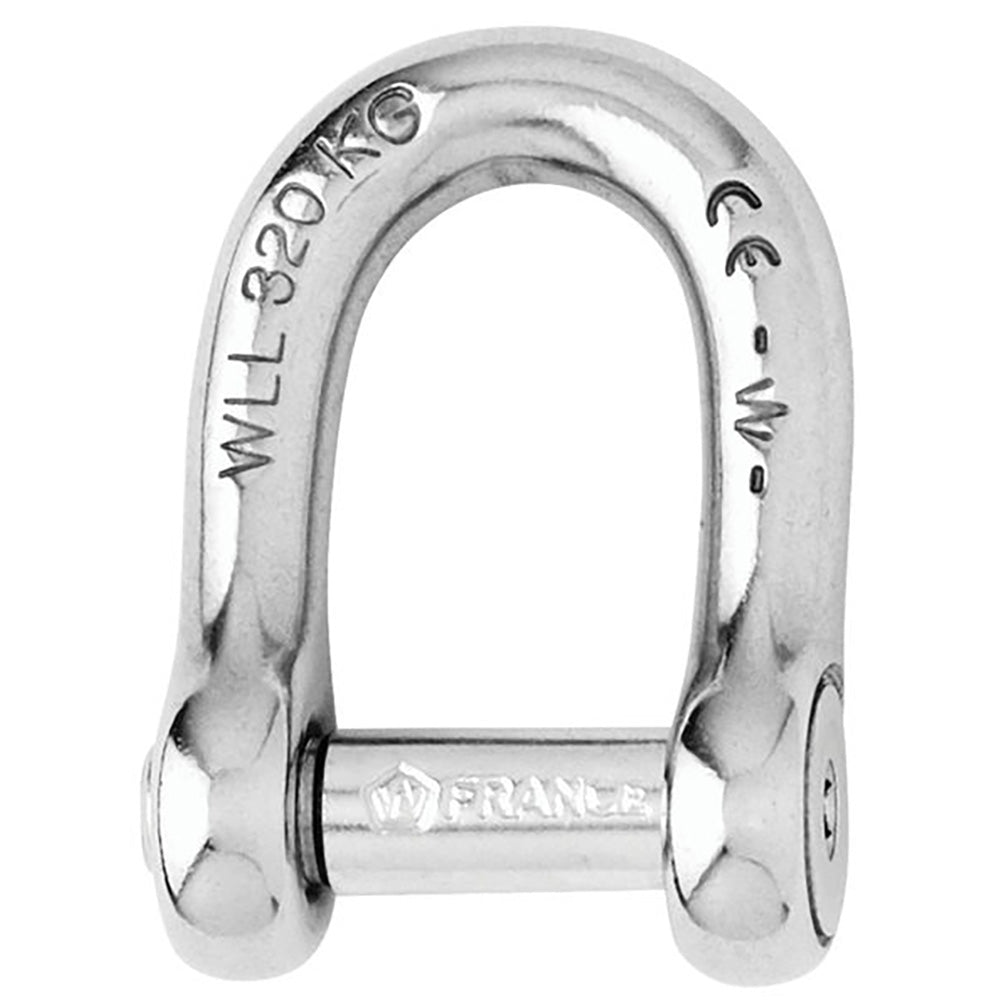

Wichard Self-Locking Allen Head Pin D Shackle - 6mm Diameter - 1/4"
Wichard Self-Locking Allen Head Pin D Shackle offers unmatched security and reliability tailored for industrial lifting and nautical applications. Made from durable grade 316L stainless steel, this self-locking shackle ensures that your connections are safe from loosening due to vibrations, making it a trusted choice for both professional and recreational users.
Key Features:
- Self-Locking Mechanism: The pin locks securely into one of the indentations, eliminating the risk of accidental release.
- Compact Design: The head of the pin does not protrude from the shackle body, reducing the risk of snagging.
- Outstanding Load Capacity: With a working load limit (WLL) of 700 lbs (320 kg) and a breaking load of 3520 lbs (1600 kg), it is ideal for heavy-duty applications.
Ideal for linking chains and anchoring in various settings such as on a halyard, this product is supported by a robust safety factor of five times the breaking load, ensuring quality and satisfaction. Choose the Wichard D Shackle for your lifting needs and experience the peace of mind that comes with dependable equipment.
Self-Locking Allen Head Pin D Shackle - 6mm Diameter - 1/4"
Features:
- Self-locking shackle with allen head pin D forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Ideal to link chains and anchor
- On the halyard, avoids damaging the sails
- To be used when the clutter is reduced
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 1320 / (kg) 600
- WLL: (lb) 700 / (kg) 320
- Breaking load: (lb) 3520 / (kg) 1600
- Weight: (lb) 0.049 / (g) 22

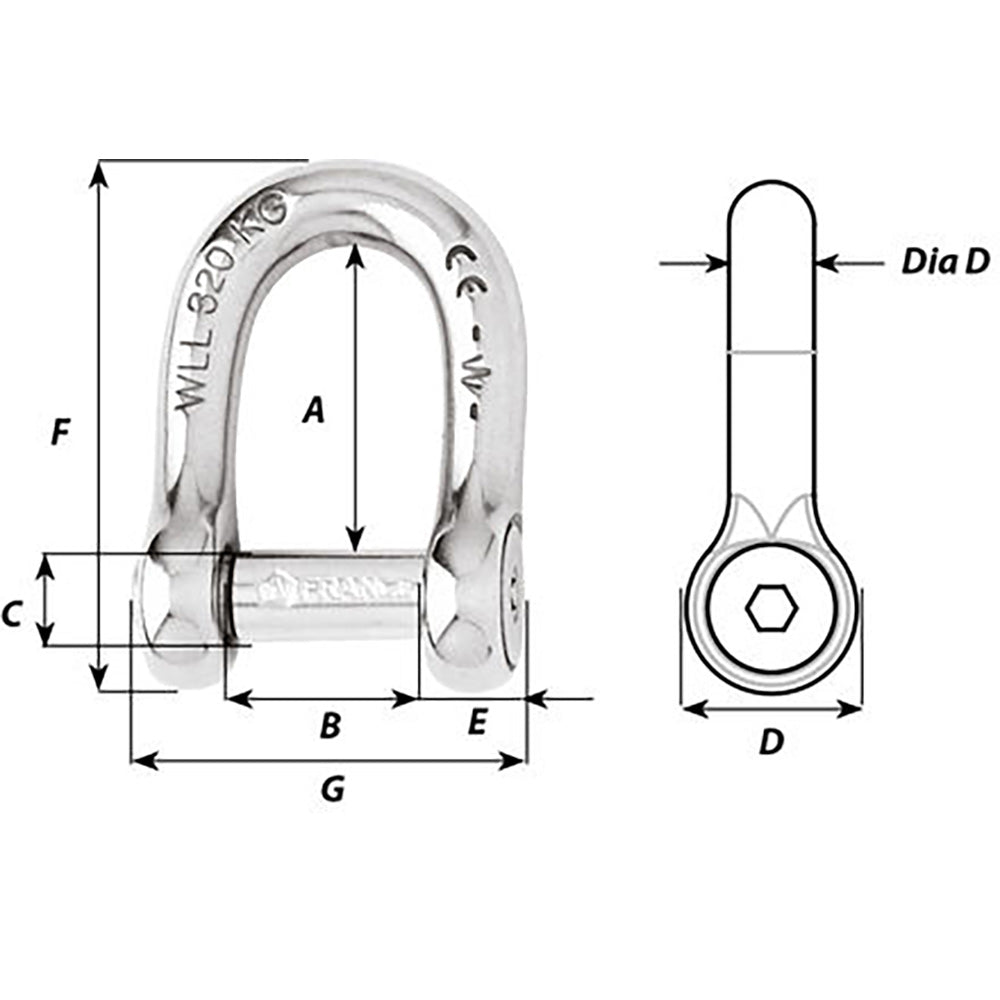

Dimensions:
- A: (inch) 3/4" / (mm) 19
- B: (inch) 15/32" / (mm) 12
- C: (inch) 15/64" / (mm) 6
- D: (inch) 15/32" / (mm) 12
- D diameter: (inch) 15/64" / (mm) 6
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
