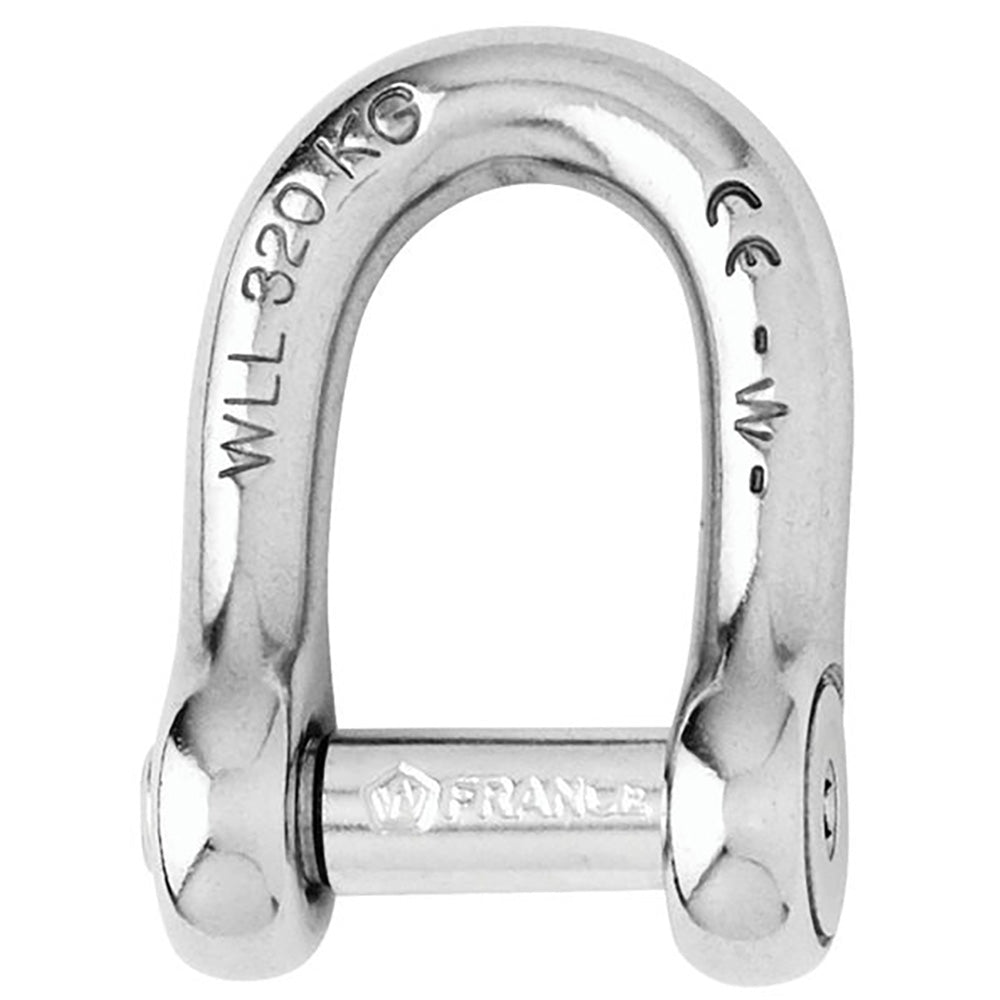

Wichard Self-Locking Allen Head Pin D Shackle - 10mm Diameter - 13/32"
Wichard Self-Locking Allen Head Pin D Shackle offers unmatched security and reliability tailored for industrial lifting applications. Crafted from premium 316L stainless steel, this shackle is designed to withstand the rigors of both marine and industrial environments.
Key Features:
- Self-Locking Mechanism: The innovative design with an allen head pin locks securely into one of the indentations, preventing accidental disengagement.
- Compact Profile: The pin head is flush with the shackle body, eliminating snagging risks while ensuring easy handling.
- High Load Capacity: With a working load limit of 1,890 lbs (860 kg) and breaking load of 9,470 lbs (4,300 kg), this shackle is perfect for demanding lifting tasks.
Ideal for linking chains and anchors in both nautical and industrial settings, this product is supported by CE marking and a robust safety factor of 5 times the breaking load, ensuring quality and satisfaction. Upgrade your rigging with the Wichard Self-Locking Allen Head Pin D Shackle today!
Self-Locking Allen Head Pin D Shackle - 10mm Diameter - 13/32"
Features:
- Self-locking shackle with allen head pin D forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Ideal for linking chains and anchor
- On the halyard, avoids damaging the sails
- To be used when the clutter is reduced
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 3170 / (kg) 1440
- WLL: (lb) 1890 / (kg) 860
- Breaking load: (lb) 9470 / (kg) 4300
- Weight: (lb) 0.218 / (g) 99

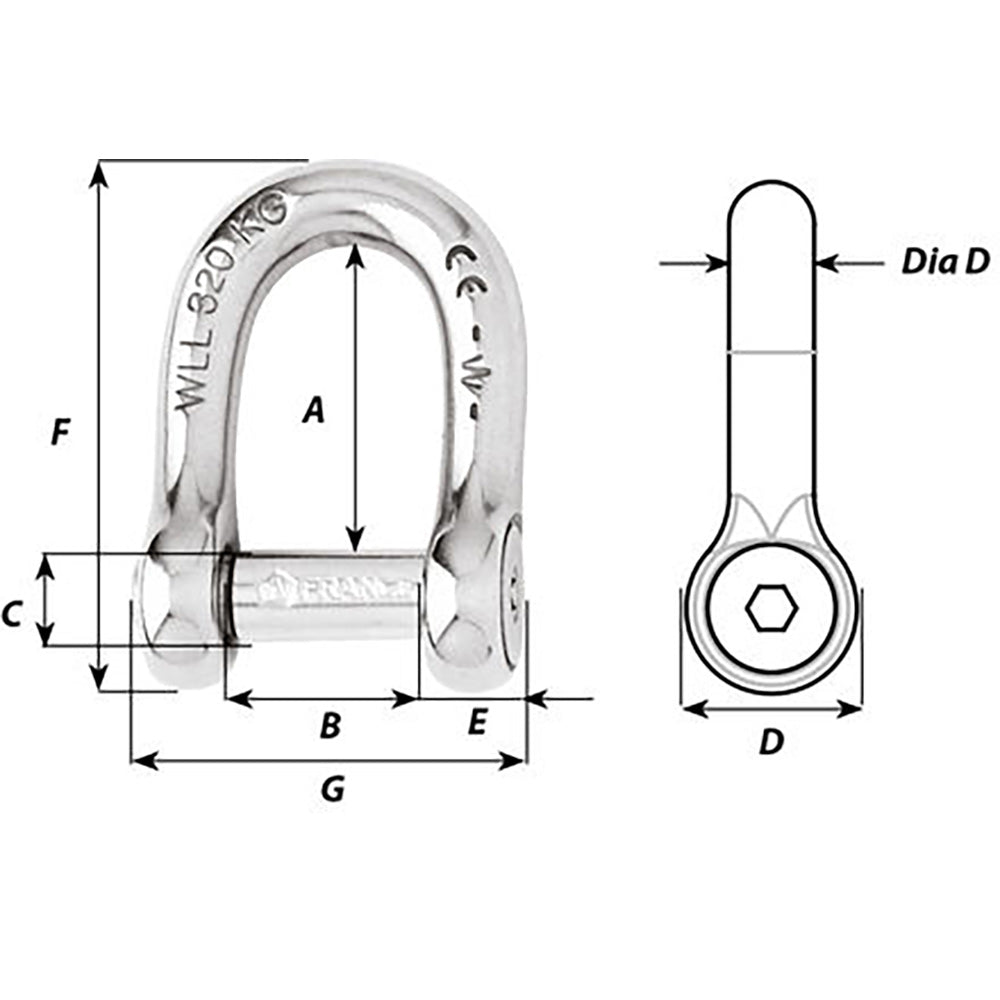

Dimensions:
- A: (inch) 1 19/64" / (mm) 33
- B: (inch) 25/32" / (mm) 20
- C: (inch) 25/64" / (mm) 10
- D: (inch) 3/4" / (mm) 19
- D diameter: (inch) 25/64" / (mm) 10
- E: (inch) 23/64" / (mm) 9
- F: (inch) 2 1/4" / (mm) 57
- G: (inch) 1 39/64" / (mm) 41
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
