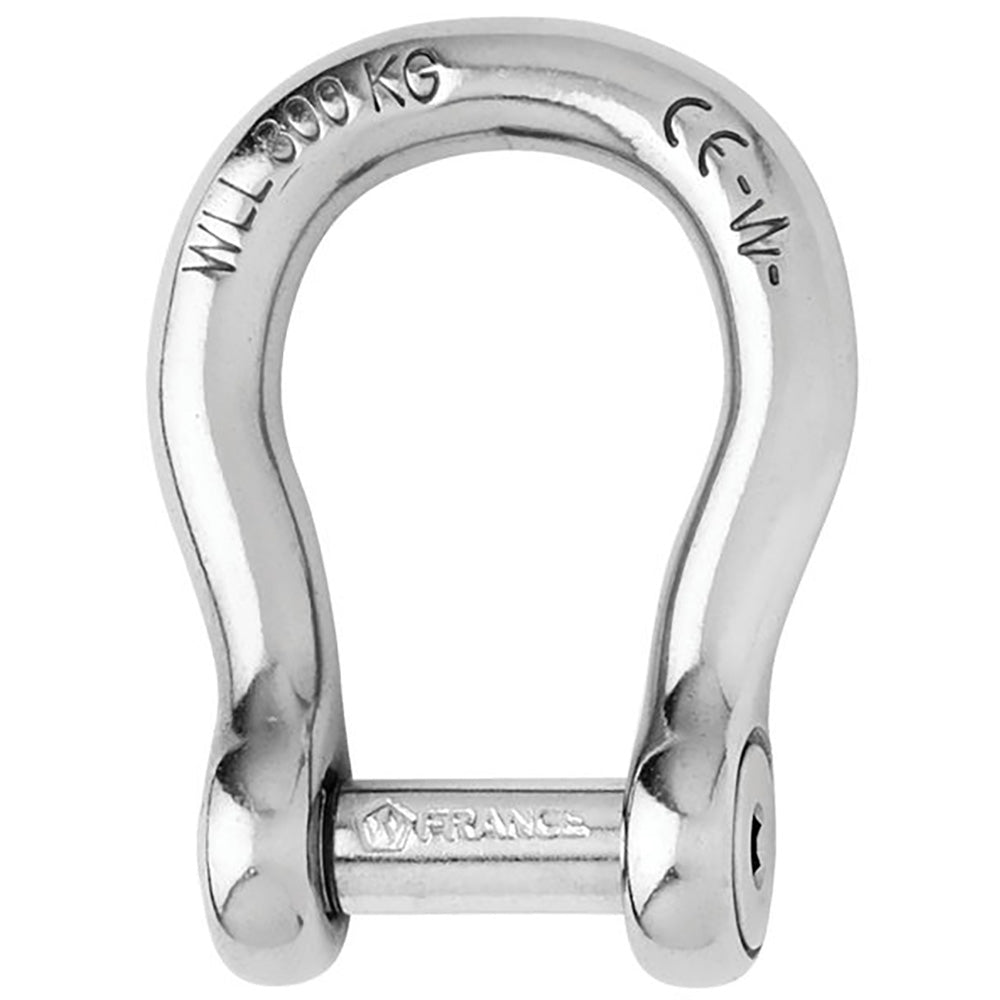

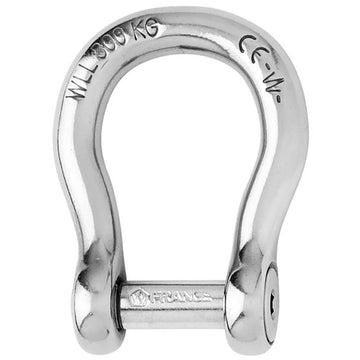

Wichard Self-Locking Allen Head Pin Bow Shackle - 8mm Diameter - 5/16"
The Wichard Self-Locking Allen Head Pin Bow Shackle offers superior security and reliability tailored for industrial applications and nautical uses. Crafted from grade 316L stainless steel, this shackle provides exceptional resistance against corrosion and wear, making it perfect for heavy-duty lifting and anchoring tasks.
Key Features:
- Self-Locking Mechanism: The twisted shackle design with an Allen head pin ensures that the pin remains securely locked in place, preventing accidental loosening.
- Compact Design: The pin head is flush with the shackle body, eliminating snagging risks and enhancing safety during use.
- Outstanding Load Capacity: With a working load limit (WLL) of 1190 lb (540 kg) and a breaking load of 5950 lb (2700 kg), it's ideal for demanding applications.
Ideal for linking chains and anchors in marine environments, this shackle is especially beneficial when space is limited and clutter is reduced. Backed by Wichard’s commitment to quality, you can trust in its performance and durability. Upgrade your rigging gear today with the Wichard Self-Locking Bow Shackle!
Self-Locking Allen Head Pin Bow Shackle - 8mm Diameter - 5/16"
Features:
- Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Ideal for linking chains and anchor
- On the halyard, avoids damaging the sails
- To be used when the clutter is reduced
- To be used when ample room is required
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 2110 / (kg) 960
- WLL: (lb) 1190 / (kg) 540
- Breaking load: (lb) 5950 / (kg) 2700
- Weight: (lb) 0.148 / (g) 67

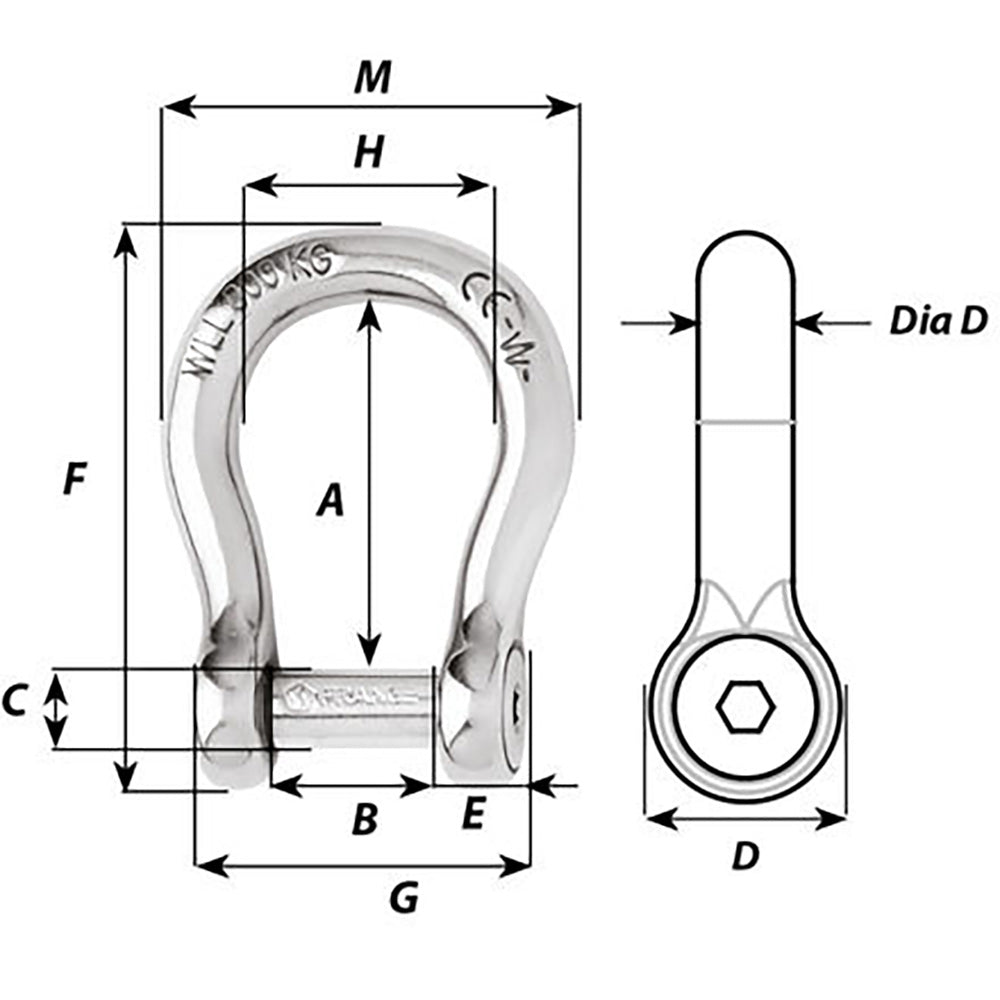

Dimensions:
- A: (inch) 1 29/64" / (mm) 37
- B: (inch) 5/8" / (mm) 16
- C: (inch) 5/16" / (mm) 8
- D: (inch) 5/8" / (mm) 16
- D diameter: (inch) 5/16" / (mm) 8
- E: (inch) 9/32" / (mm) 7
- F: (inch) 63/64" / (mm) 25
- M: (inch) 1 37/64" / (mm) 40
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
