Wichard Self-Locking Allen Head Pin Bow Shackle - 10mm Diameter - 13/32"

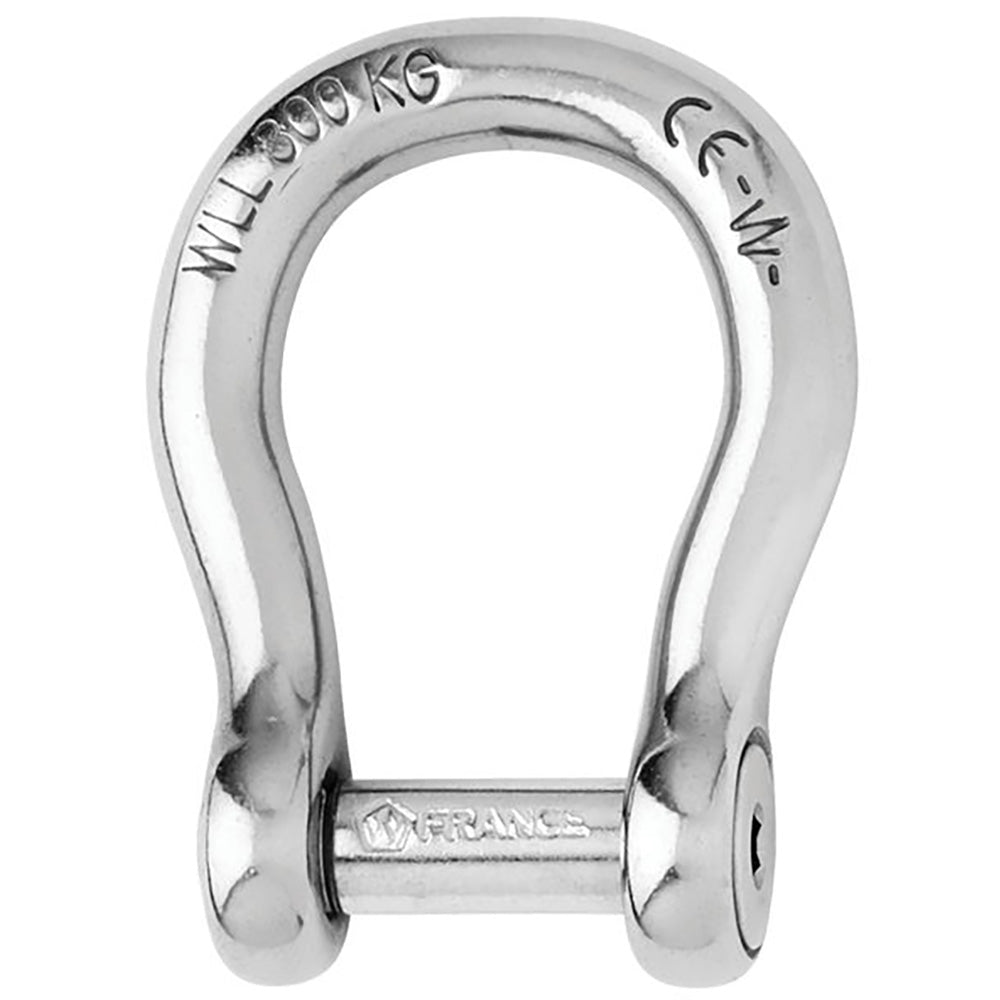

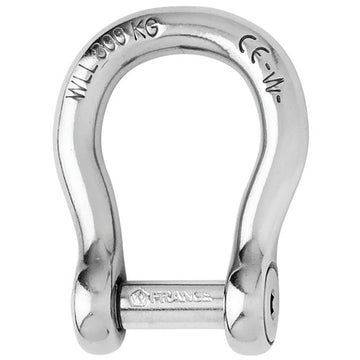

The Wichard Self-Locking Allen Head Pin Bow Shackle offers exceptional security and reliability tailored for industrial lifting applications. Forged from grade 316L stainless steel, this durable shackle is designed to withstand heavy loads while ensuring safety and ease of use.
Key Features:
- Self-Locking Design: The pin locks securely into one of the indentations, preventing accidental openings and ensuring safety.
- Compact and Snag-Free: The pin head does not protrude from the shackle body, eliminating risks of snagging during operation.
- Outstanding Load Capacity: With a working load limit (WLL) of 1890 lb (860 kg) and a breaking load of 9470 lb (4300 kg), it's perfect for demanding industrial applications.
Ideal for linking chains and anchors in various industrial settings, this shackle is supported by a 5x safety factor of the breaking load, ensuring quality and satisfaction. Elevate your lifting operations with the Wichard Self-Locking Allen Head Pin Bow Shackle—your trusted ally for heavy-duty tasks.
Self-Locking Allen Head Pin Bow Shackle - 10mm Diameter - 13/32"
Features:
- Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Ideal to link chain and anchor
- On the halyard, avoids to damage the sails
- To be used when the clutter is reduced
- To be used when ample room is required
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 3170 / (kg) 1440
- WLL: (lb) 1890 / (kg) 860
- Breaking load: (lb) 9470 / (kg) 4300
- Weight: (lb) 0.293 / (g) 133

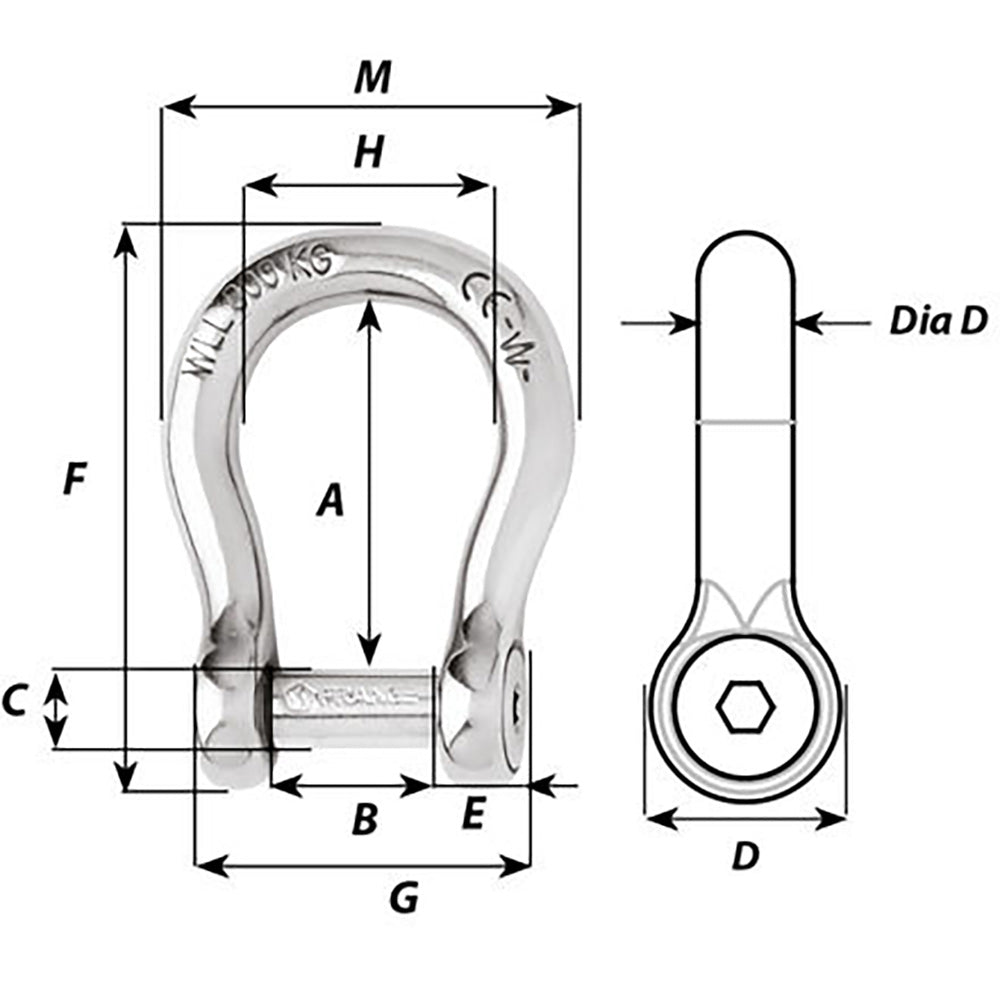

Dimensions:
- A: (inch) 1 27/32" / (mm) 47
- B: (inch) 25/32" / (mm) 20
- C: (inch) 25/64" / (mm) 10
- D: (inch) 25/32" / (mm) 20
- D diameter: (inch) 25/64" / (mm) 10
- E: (inch) 23/64" / (mm) 9
- F: (inch) 1 17/64" / (mm) 32
- M: (inch) 2 3/64" / (mm) 52
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
