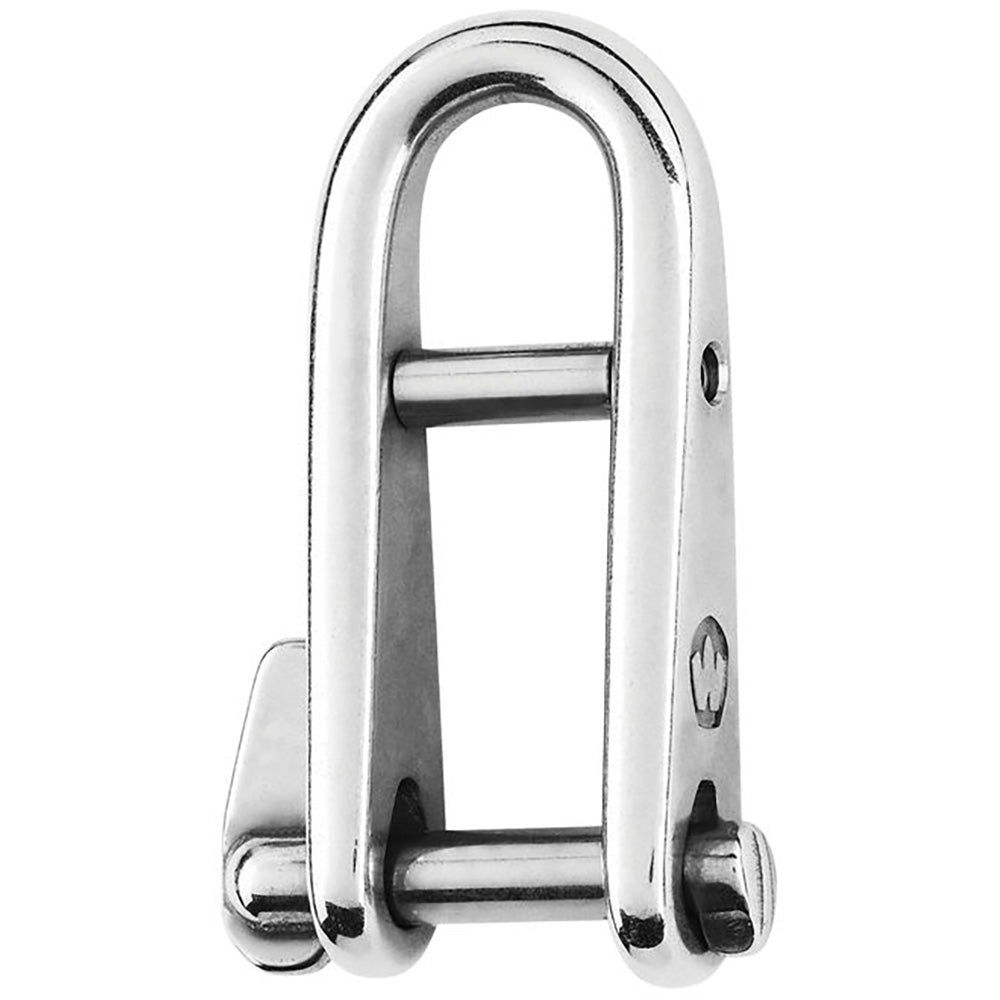

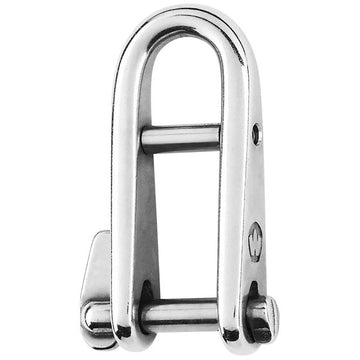

Wichard HR Key Pin Shackle With Bar - 8mm Pin Diameter Forged Stainless Steel

Introducing the Wichard HR Key Pin Shackle, expertly designed for industrial applications such as lifting. With an 8mm pin diameter and crafted from high-quality forged stainless steel (17-4 PH grade), this shackle not only meets but exceeds performance expectations, making it an essential tool for any serious sailor or industrial user.

This innovative shackle stands out in the market with its remarkable features:

• Outstanding Load Capacity: Engineered to provide exceptional working and breaking loads, ensuring that your lifting tasks are executed safely.
• Superior Resistance: This HR shackle can be up to 60% more resistant than typical 316L stainless steel shackles, making it ideal for challenging environments.
• CE Marking: Adheres to strict European safety standards, giving you peace of mind during use.

Designed specifically for sailing and heavy-duty industrial applications, the Wichard HR Key Pin Shackle is a remarkable choice that outperforms other shackles in its category. Its robust build quality ensures that it can handle the toughest jobs while providing reliability and safety.

When you choose the Wichard HR Key Pin Shackle, you're investing in a product that prioritizes durability and strength. Don't compromise on safety; elevate your lifting capabilities with this exceptional shackle.

Order your Wichard HR Key Pin Shackle today and experience the difference in quality and performance! Perfect for sailing, shackles/rings/pins, and various industrial applications.

HR Key Pin Shackle With Bar - 8mm Pin Diameter

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Applications requesting high loads
• Perfect product for halyards or applications requiring to opening/closing the shackle often
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 2110 / (kg) 960
• Breaking load: (lb) 7710 / (kg) 3500
• Weight: (lb) 0.271 / (g) 123

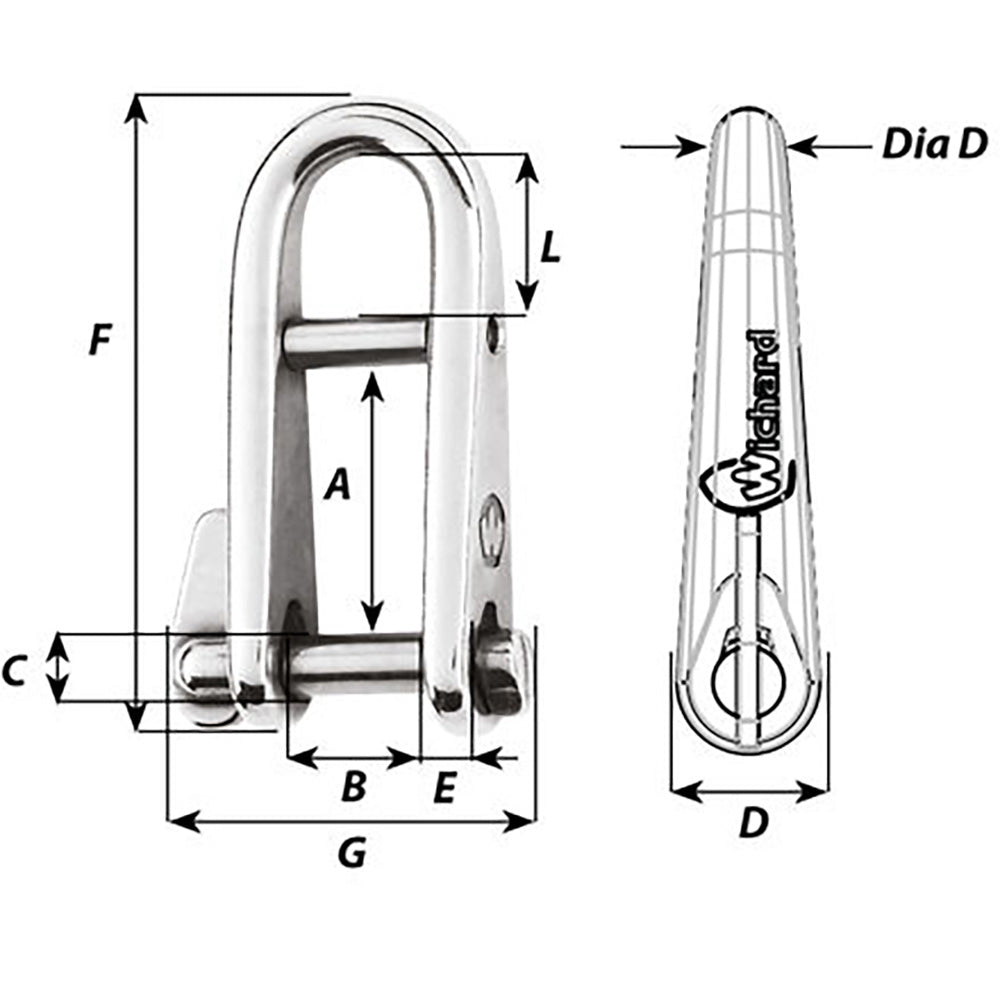

Dimensions:

• A: (inch) 2 21/64" / (mm) 59
• B: (inch) 53/64" / (mm) 21
• C: (inch) 5/16" / (mm) 8
• D: (inch) 43/64" / (mm) 17
• E: (inch) 15/64" / (mm) 6
• F: (inch) 3 7/64" / (mm) 79
• G: (inch) 1 57/64" / (mm) 48
• L: (inch) 25/32" / (mm) 20

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual
