Wichard HR Bow Shackle - 24mm Diameter - 15/16"

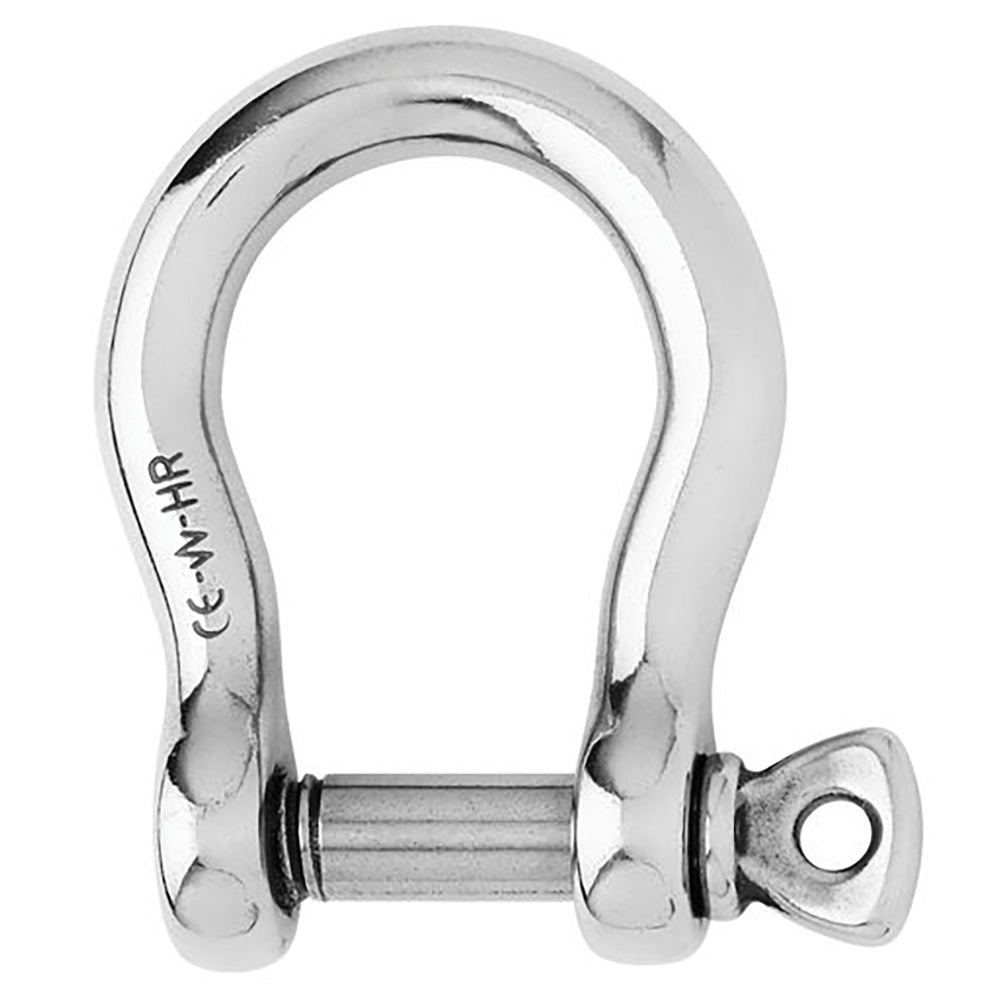

Wichard HR Bow Shackle - 24mm Diameter - 15/16" by Wichard offers exceptional strength and durability tailored for industrial lifting applications. This forged bow shackle, made from high-grade HR stainless steel (17,4 PH), is designed to handle high loads efficiently and safely.
Key Features:
- High Resistance Material: Made from HR 17.4 PH stainless steel, this shackle is up to 60% more resistant than standard 316L stainless steel, ensuring longevity and performance.
- Outstanding Load Capacity: With a working load limit (WLL) of 15,430 lbs (7,000 kg) and a breaking load of 77,160 lbs (35,000 kg), it is perfect for demanding industrial tasks.
- Versatile Applications: Ideal for applications requiring high loads and ample room, allowing the attachment of multiple lines or cables for enhanced utility.
Ideal for heavy-duty lifting in industrial environments, this product is supported by a 5:1 safety factor over its breaking load, ensuring quality and satisfaction. Choose the Wichard HR Bow Shackle for unmatched reliability and strength in your projects!
HR Bow Shackle - 24mm Diameter - 15/16"
Features:
- Forged bow shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- To be used when ample room is required
- Possibility to attach several lines or cables
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 28210 / (kg) 12800
- WLL: (lb) 15430 / (kg) 7000
- Breaking load: (lb) 77160 / (kg) 35000
- Weight: (lb) 3.761 / (kg) 1.706

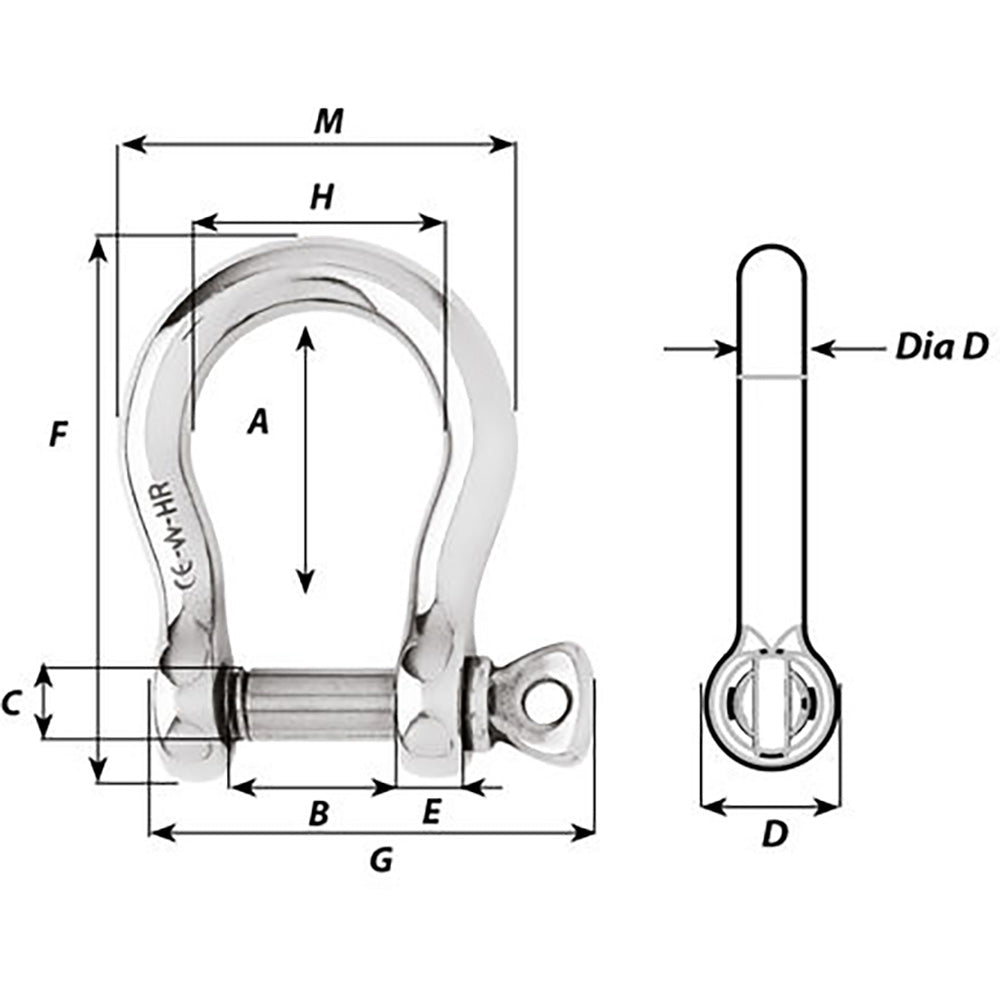

Dimensions:
- A: (inch) 4 1/4" / (mm) 108
- B: (inch) 1 57/64" / (mm) 48
- C: (inch) 15/16" / (mm) 24
- D: (inch) 1 27/32" / (mm) 47
- D diameter: (inch) 15/16" / (mm) 24
- E: (inch) 25/32" / (mm) 20
- M: (inch) 4 41/64" / (mm) 118
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
