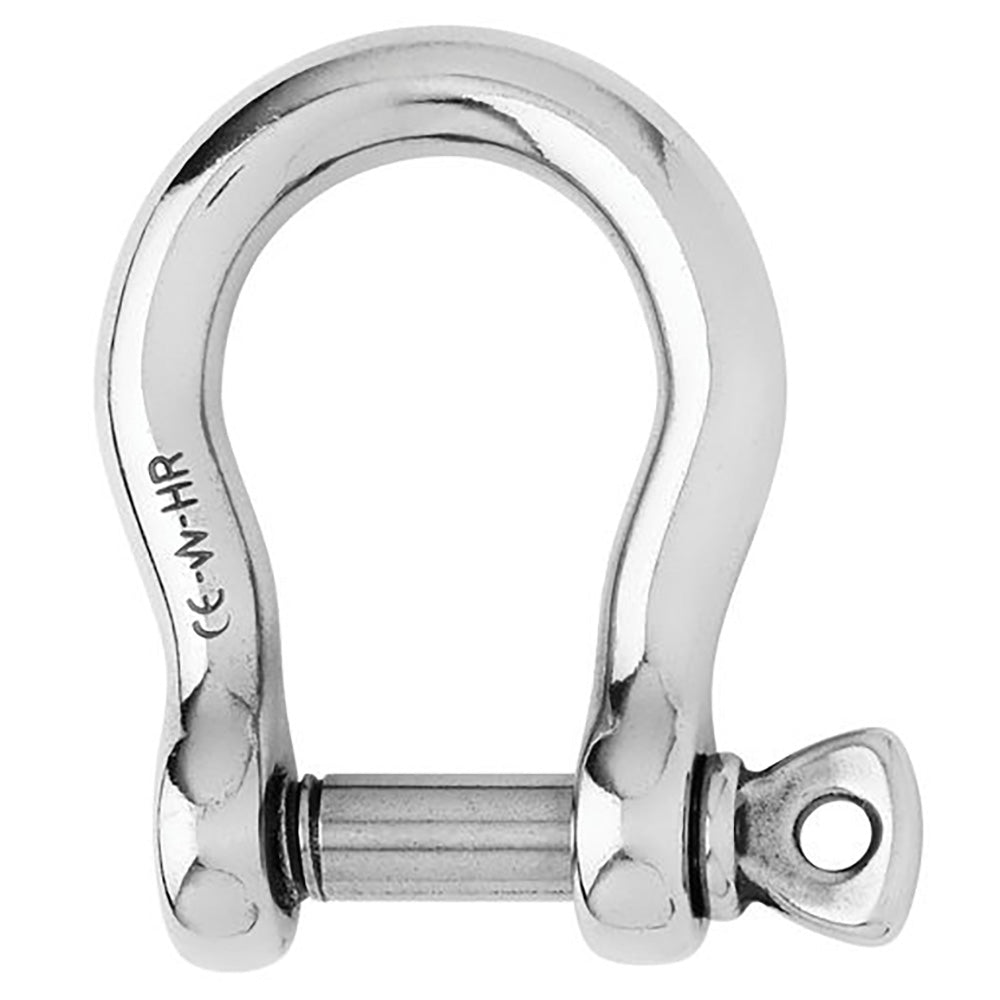

Wichard HR Bow Shackle - 20mm Diameter - 25/32"
Wichard HR Bow Shackle offers outstanding strength and durability tailored for heavy-duty industrial applications. Crafted from high-grade HR stainless steel (17,4 PH), this shackle is engineered to handle substantial loads with confidence.
Key Features:
- High Resistance Material: Made of HR stainless steel, this shackle is up to 60% more resistant than standard 316L stainless steel alternatives.
- Exceptional Load Capacity: With a breaking load of 61,720 lb (28,000 kg) and a working load limit (WLL) of 12,340 lb (5,600 kg), it is perfect for lifting and other industrial uses.
- Versatile Design: Its bow shape allows for ample room for connecting multiple lines or cables, making it ideal for applications demanding high load handling.
Ideal for industrial settings where strength and reliability are paramount, this product is supported by a 5:1 safety factor on the breaking load, ensuring quality and satisfaction.
Upgrade your lifting solutions with the Wichard HR Bow Shackle—your trusted partner for heavy-duty applications!
HR Bow Shackle - 20mm Diameter - 25/32"
Features:
- Forged bow shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- To be used when ample room is required
- Possibility to attach several lines or cables
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 19400 / (kg) 8800
- WLL: (lb) 12340 / (kg) 5600
- Breaking load: (lb) 61720 / (kg) 28000
- Weight: (lb) 2.229 / (kg) 1.011

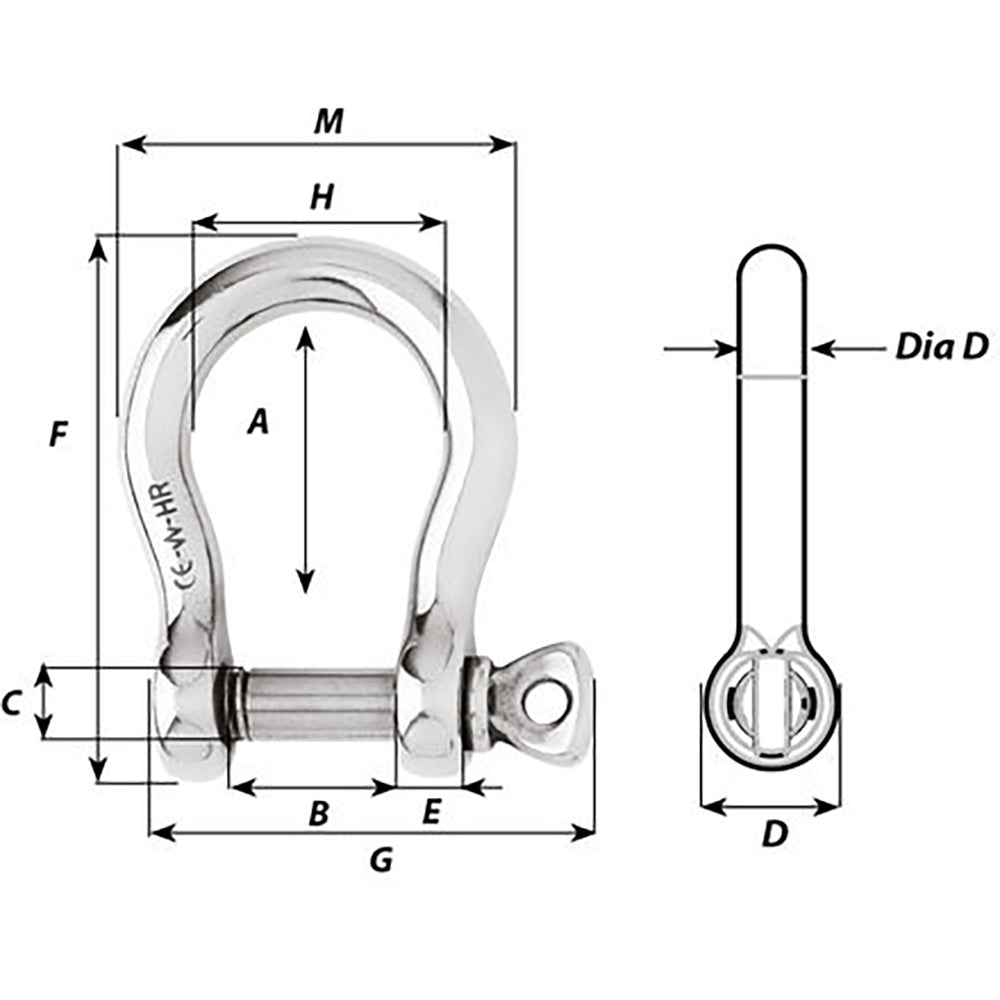

Dimensions:
- A: (inch) 3 5/32" / (mm) 80
- B: (inch) 1 37/64" / (mm) 40
- C: (inch) 25/32" / (mm) 20
- D: (inch) 1 37/64" / (mm) 40
- D diameter: (inch) 25/32" / (mm) 20
- E: (inch) 45/64" / (mm) 18
- M: (inch) 3 15/16" / (mm) 100
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
