Wichard HR Bow Shackle - 16mm Diameter - 5/8"
Wichard HR Bow Shackle - 16mm Diameter - 5/8" by Wichard offers exceptional strength and durability tailored for heavy-duty industrial lifting applications.
Key Features:
- High-Strength Material: Crafted from forged HR stainless steel grade (17,4 PH), this shackle is designed to withstand rigorous loads.
- Outstanding Load Capacity: With a working load limit (WLL) of 8,370 lb (3,800 kg) and a breaking load of 41,880 lb (19,000 kg), it ensures safety even under pressure.
- Superior Resistance: This shackle can be up to 60% more resistant than standard 316L stainless steel, making it ideal for applications requiring high durability.
Ideal for industrial environments where maximum load handling is critical, this product is supported by a five-times safety factor over the breaking load, ensuring both quality and satisfaction.
Optimize your lifting operations with the Wichard HR Bow Shackle, where safety meets performance. Don't compromise on strength—choose the shackle built for the toughest jobs!
HR Bow Shackle - 16mm Diameter - 5/8"
Features:
- Forged bow shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- To be used when ample room is required
- Possibility to attach several lines or cables
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 14990 / (kg) 6800
- WLL: (lb) 8370 / (kg) 3800
- Breaking load: (lb) 41880 / (kg) 19000
- Weight: (lb) 1.16 / (g) 526

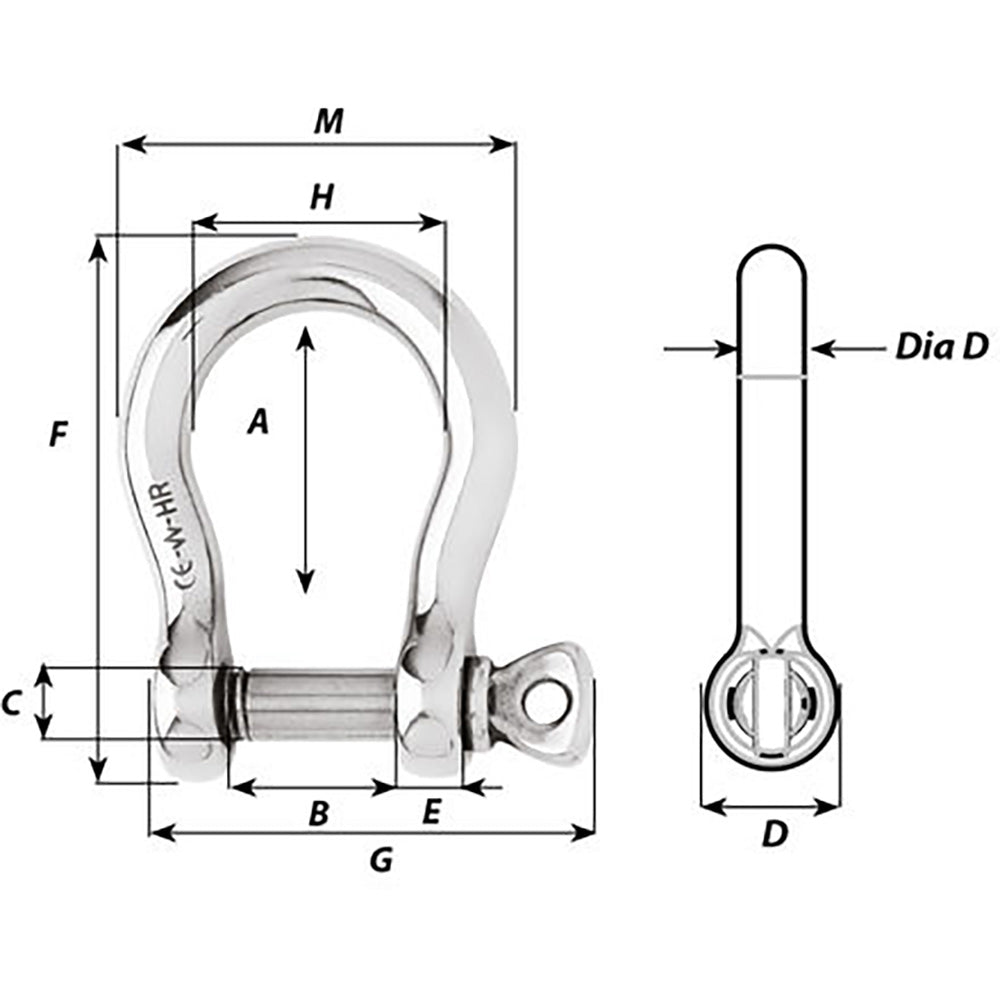

Dimensions:
- A: (inch) 2 3/4" / (mm) 70
- B: (inch) 1 17/64" / (mm) 32
- C: (inch) 5/8" / (mm) 16
- D: (inch) 1 17/64" / (mm) 32
- D diameter: (inch) 5/8" / (mm) 16
- E: (inch) 19/32" / (mm) 15
- M: (inch) 3 17/64" / (mm) 83
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
