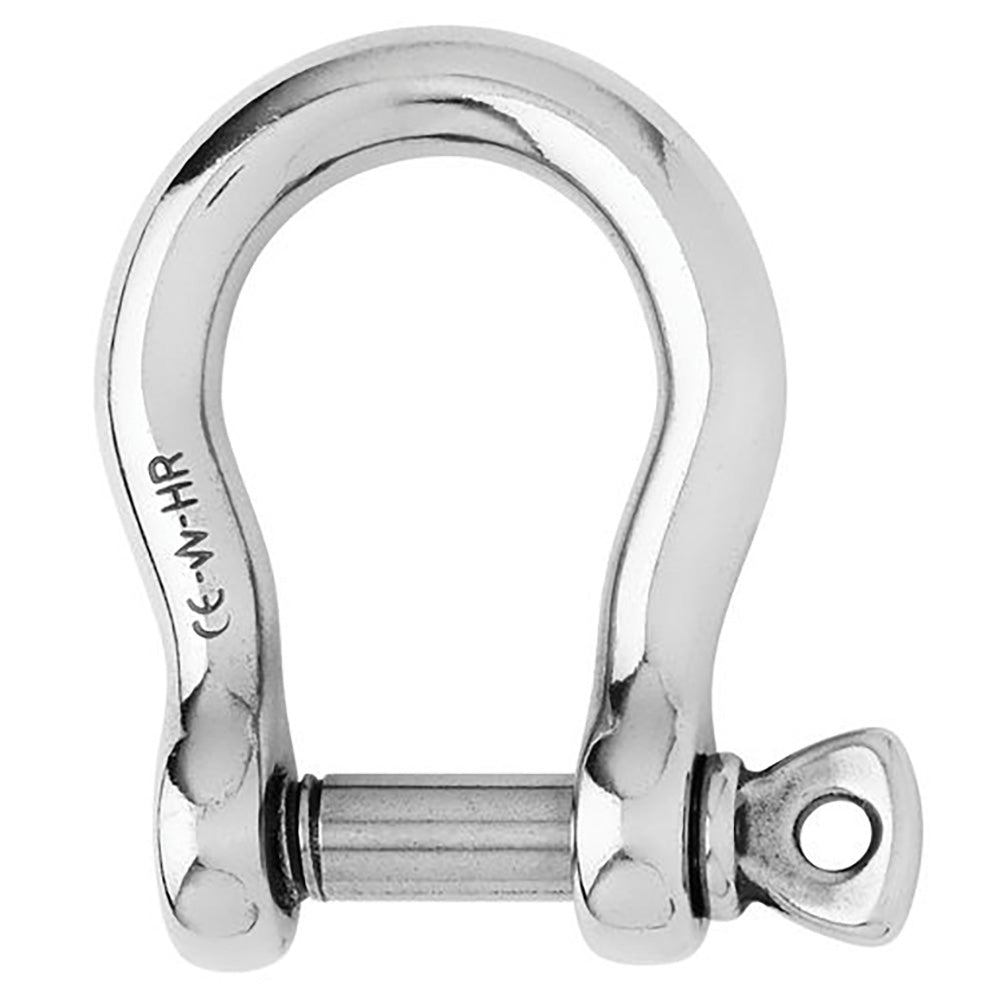

Wichard HR Bow Shackle - 14mm Diameter - 35/64"
The Wichard HR Bow Shackle - 14mm Diameter - 35/64" offers exceptional strength and durability, tailored for industrial applications requiring high load capacity. Manufactured from premium HR stainless steel grade (17,4 PH), this bow shackle stands out with its outstanding working and breaking load capabilities.
Key Features:
- High Resistance Material: Crafted from HR stainless steel, this shackle is up to 60% more resistant than conventional 316L stainless steel, ensuring unparalleled durability.
- Impressive Load Capacity: With a working load limit (WLL) of 5,290 lbs (2,400 kg) and a breaking load of 26,450 lbs (12,000 kg), it's ideal for heavy-duty lifting tasks.
- Versatile Applications: Designed for heavy load scenarios where ample room is required, allowing multiple lines or cables to be attached seamlessly.
Ideal for construction sites, industrial lifting, or heavy rigging tasks, this product is supported by a CE marking and a unique batch number, ensuring quality and reliability. Choose the Wichard HR Bow Shackle for your demanding lifting needs and experience unmatched strength and performance.
HR Bow Shackle - 14mm Diameter - 35/64"
Features:
- Forged bow shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- Applications requesting high loads
- To be used when ample room is required
- Possibility to attach several lines or cables
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 11280 / (kg) 5120
- WLL: (lb) 5290 / (kg) 2400
- Breaking load: (lb) 26450 / (kg) 12000
- Weight: (lb) 0.802 / (g) 364

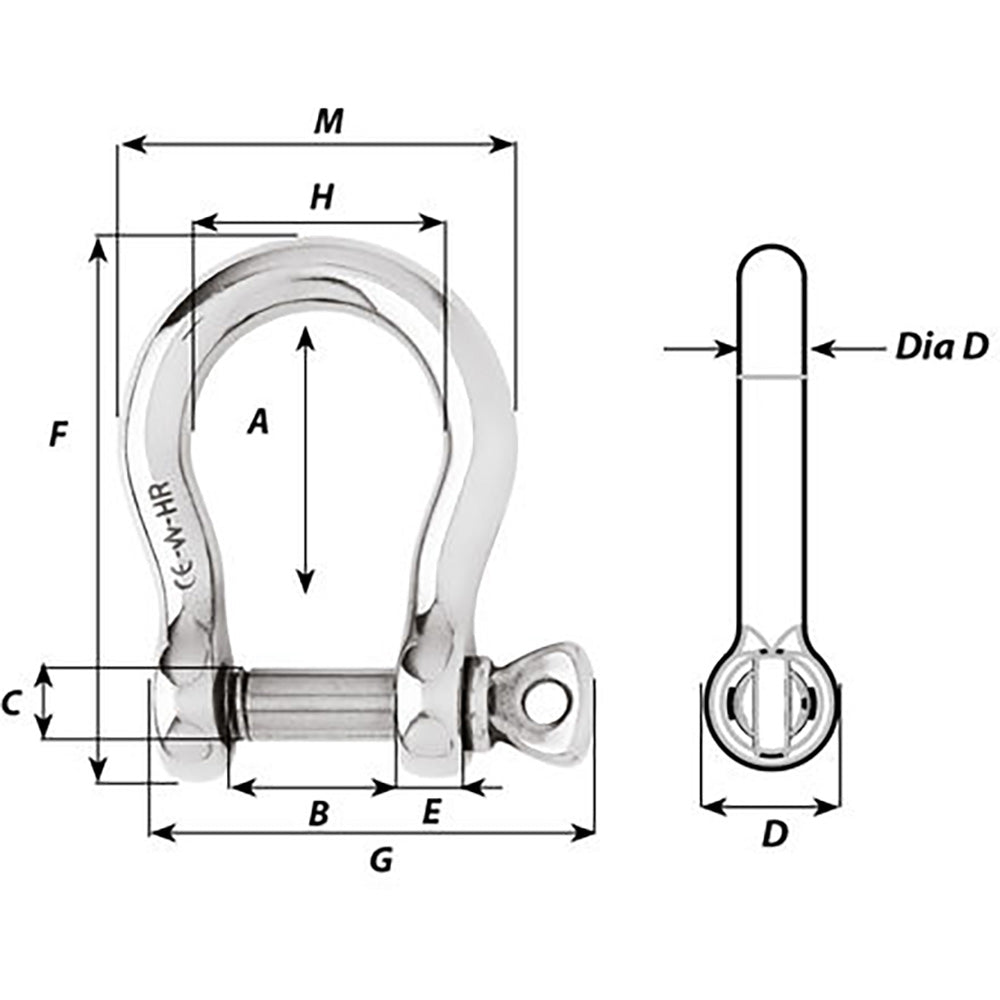

Dimensions:
- A: (inch) 2 31/64" / (mm) 63
- B: (inch) 1 7/64" / (mm) 28
- C: (inch) 35/64" / (mm) 14
- D: (inch) 1 7/64" / (mm) 28
- D diameter: (inch) 35/64" / (mm) 14
- E: (inch) 33/64" / (mm) 13
- M: (inch) 2 53/64" / (mm) 72
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
