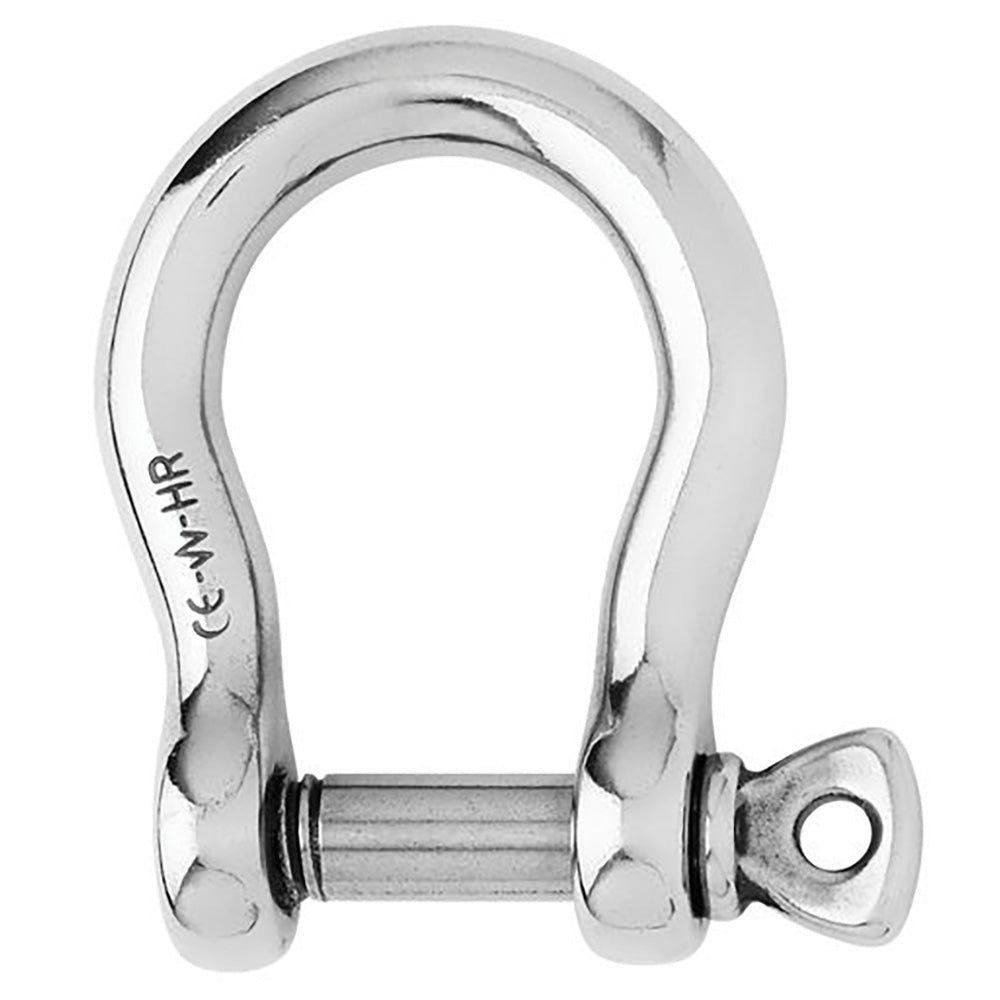

Wichard HR Bow Shackle - 10mm Pin Diameter Forged Stainless Steel
Introducing the Wichard HR Bow Shackle, your ultimate solution for heavy-duty lifting applications in the sailing industry. Crafted from forged stainless steel grade 17,4 PH, this bow shackle boasts remarkable durability and is designed to withstand the toughest conditions. With a 10mm pin diameter, it offers an outstanding working and breaking load that puts it ahead of conventional shackles.
Key Features & Benefits
- Premium Material: Made from forged HR stainless steel, this shackle is up to 60% more resistant than standard 316L stainless steel, ensuring longevity and reliability.
- Outstanding Load Capacity: Designed specifically for industrial applications, it features a Working Load Limit (WLL) that guarantees safety and efficiency during lifting operations.
- CE Marking: Complies with rigorous safety standards, providing you with peace of mind while working.
- Versatile Applications: Ideal for various lifting tasks in the sailing and marine industry, making it a versatile tool in your collection.
This bow shackle stands out in the market for its superior strength and reliability, setting a new benchmark in the category of Shackles/Rings/Pins. Whether you are a sailing enthusiast or a professional in the industrial lifting sector, the Wichard HR Bow Shackle is engineered to meet your needs while exceeding your expectations.
Don't compromise on quality—choose the Wichard HR Bow Shackle and ensure your lifting operations are secure and efficient. Order yours today and experience the unparalleled strength and durability this shackle offers!
HR Bow Shackle - 10mm Pin Diameter
Features:
- Forged bow shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- To be used when ample room is required
- Possibility to attach several lines or cables
- Do not use for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 5820 / (kg) 2640
- WLL: (lb) 2640 / (kg) 1200
- Breaking load: (lb) 13220 / (kg) 6000
- Weight: (lb) 0.3 / (g) 136

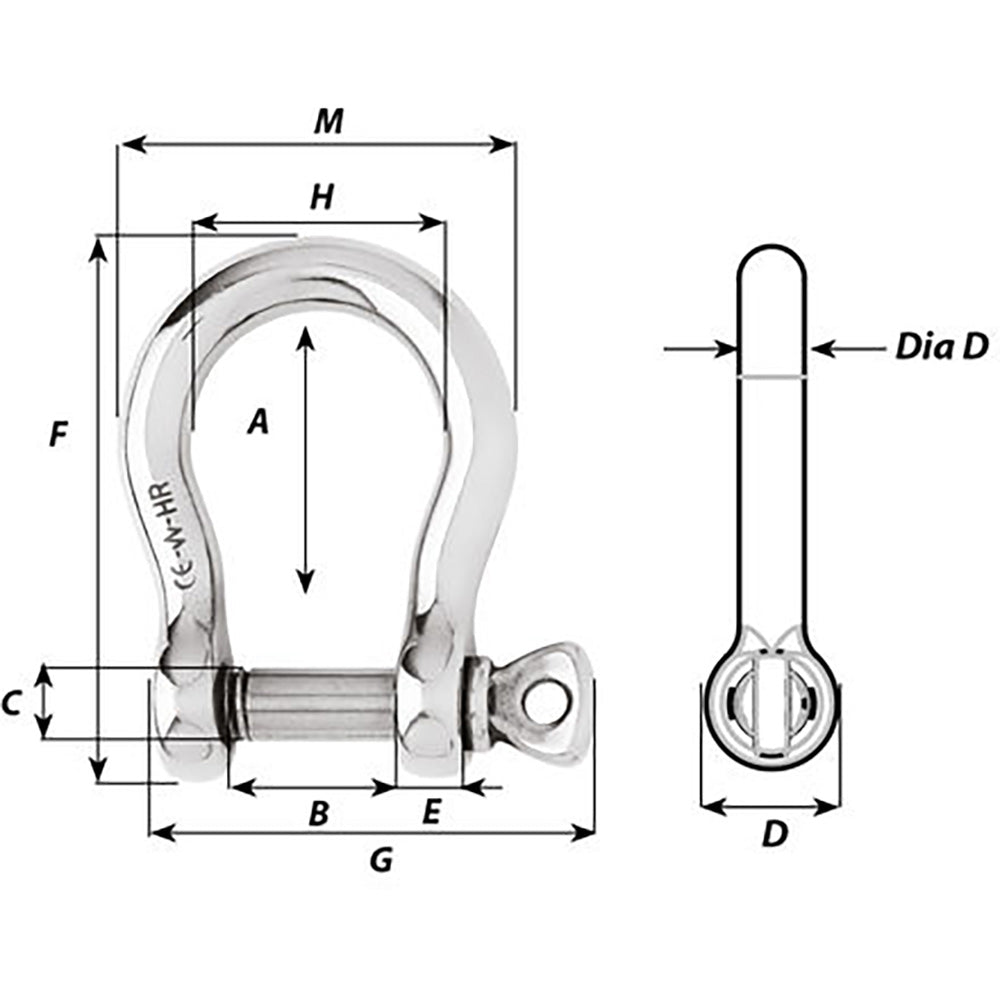

Dimensions:
- A: (inch) 1 27/32" / (mm) 47
- B: (inch) 55/64" / (mm) 22
- C: (inch) 25/64" / (mm) 10
- D: (inch) 25/32" / (mm) 20
- D diameter: (inch) 15/32" / (mm) 12
- E: (inch) 23/64" / (mm) 9
- M: (inch) 2 3/64" / (mm) 52
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
