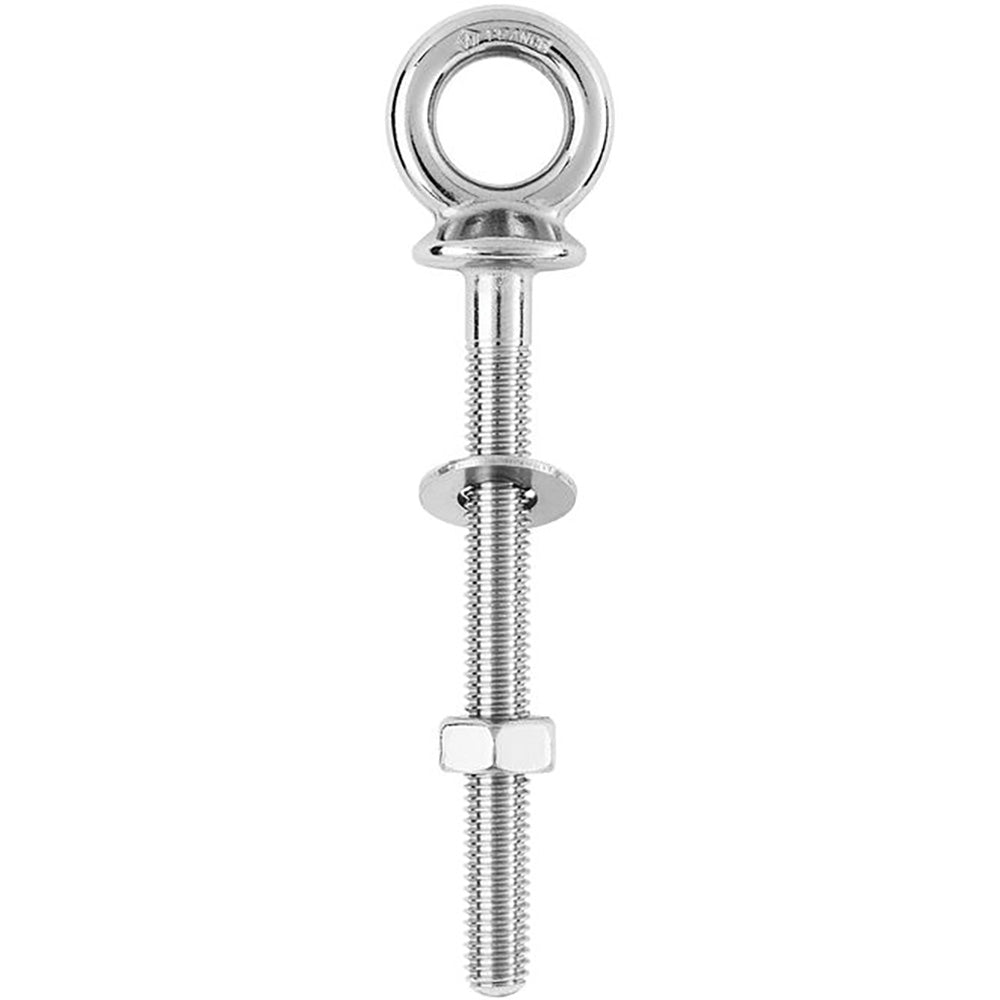

Wichard Eye Bolt - M12 x 175mm - Length 120mm
The Wichard Eye Bolt - M12 x 175mm offers exceptional strength and durability tailored for various fastening applications. Made with high-quality 316L stainless steel, this eye bolt delivers a reliable performance, whether you're involved in towing applications or attaching waterskiing lines.
Key Features:
- Outstanding Working and Breaking Loads: With a working load limit of 5290 lb (2400 kg) and a breaking load of 7710 lb (3500 kg), this eye bolt ensures safety and reliability for heavy-duty tasks.
- Single Piece Forged Design: Constructed as a single piece, it provides maximum strength and eliminates the risk of weak points that can occur in welded components.
- Maximum Tightening Torque: Rated for a maximum tightening torque of 60 Nm, ensuring secure installation and performance under pressure.
Ideal for marine enthusiasts and industrial applications, this product is supported by a safety factor of five times the breaking load, ensuring quality and satisfaction. Elevate your fastening solutions with the Wichard Eye Bolt, a trusted choice for durability and performance.
Eye Bolt - M12 x 175mm - Length 120mm
Features:
- A complete range of single piece forged products for fastenings applications
- Outstanding working and breaking loads
- Available in different sizes
- Max tightening torque: 60 Nm
Applications:
- Various fastening applications
- Towing application
- Waterskiing lines attachment
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 5290 / (kg) 2400
- Breaking load: (lb) 7710 / (kg) 3500
- Weight: (lb) 0.359 / (g) 163

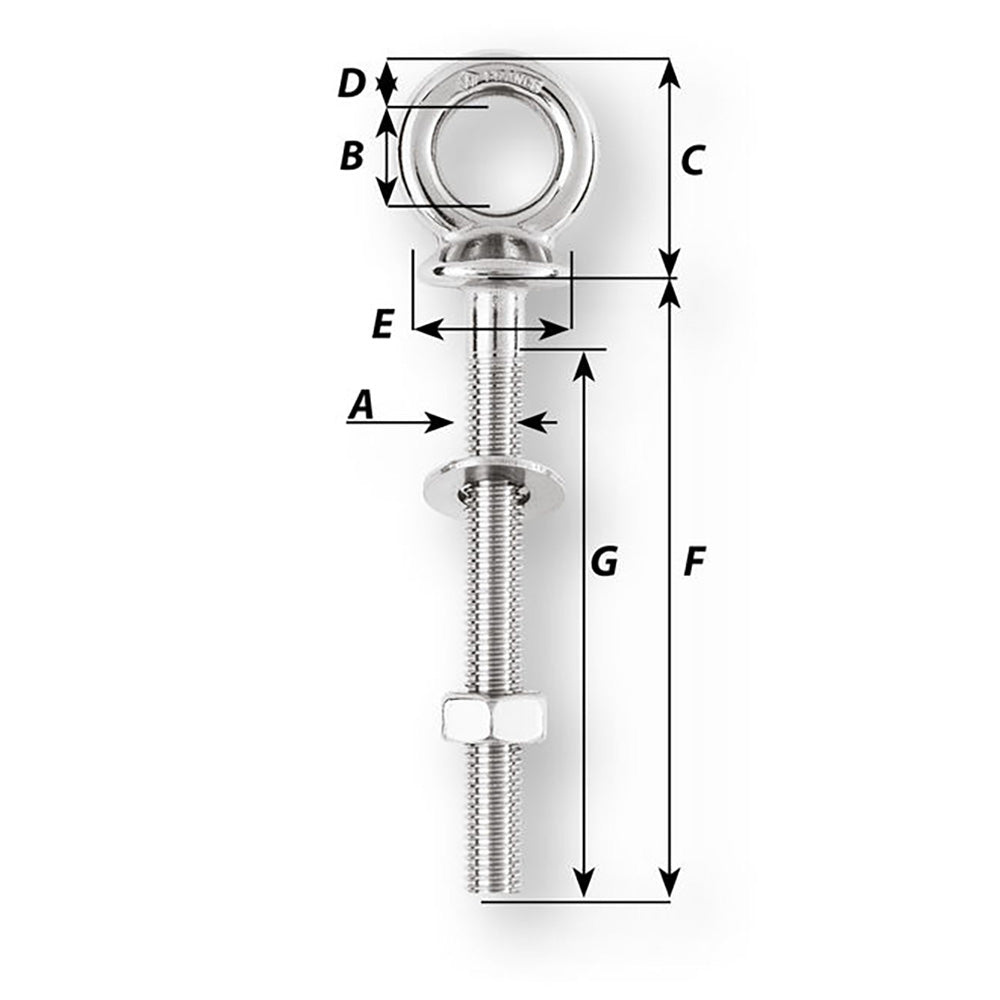

Dimensions:
- A: (mm) M12 x 175
- B: (inch) 45/64" / (mm) 18
- C: (inch) 1 39/64" / (mm) 41
- D: (inch) 5/16" / (mm) 8
- E: (inch) 1 7/64" / (mm) 28
- F: (inch) 4 23/32" / (mm) 120
- G: (inch) 4 9/64" / (mm) 105
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
