Wichard Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw
Wichard Diamond Pad Eye offers exceptional mechanical strength and corrosion resistance tailored for versatile nautical applications. Whether you’re dealing with mast foot blocks, reefing blocks, or various fastenings, this round pad eye is engineered to meet your demanding needs.
Key Features:
- High-Quality Material: Constructed from duplex stainless steel grade, providing superior durability.
- Optimized Dimensions: With a length of 79mm (3-7/64"), it fits perfectly for M6 screw applications, ensuring a reliable installation.
- Robust Working Load: Rated for a working load of 6393.4 lbs (2900 kg) at 90 degrees, making it suitable for heavy-duty tasks.
Ideal for sailors and marine enthusiasts looking for reliable hardware, this product is supported by a 5x safety factor over its breaking load, ensuring quality and satisfaction with each use. Upgrade your boating experience with the Wichard Diamond Pad Eye today!
Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw
Features:
- Mechanical resistance versus corrosion resistance ratio
- Optimized dimensions
- For M6 screw
Applications:
- Mast foot blocks
- Reefing blocks
- Various fastenings
Specifications:
- Materials: Duplex stainless steel grade
- Working Load: (lb) 6393.4 / (kg) 2900
- Breaking Load: (lb) 17196 / (kg) 7800
- Weight: (lb) 0.315 / (g) 143
- W.L 1 (90 degrees): (lb) 6393.4 / (kg) 2900
- W.L 2 (45 degrees): (lb) 5732 / (kg) 2600
- W.L 3 (0 degrees): (lb) 5291 / (kg) 2400
- B.L 1 (90 degrees): (lb) 17196 / (kg) 7800
- B.L 2 (45 degrees): (lb) 15211.9 / (kg) 6900
- B.L 3 (0 degrees): (lb) 13889 / (kg) 6300

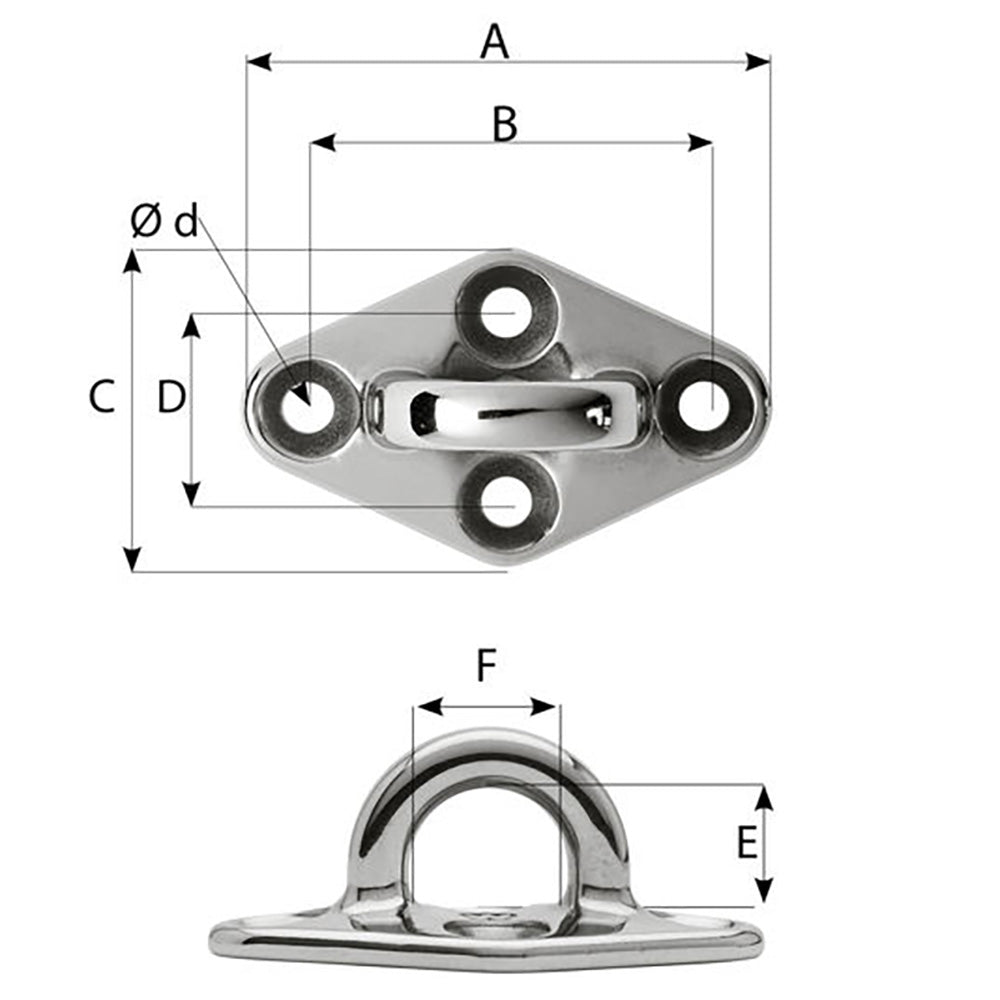

Dimensions:
- A: (inch) 3 7/64" / (mm) 79
- B: (inch) 2 23/64" / (mm) 60
- C: (inch) 1 31/32" / (mm) 50
- D: (inch) 1 17/64" / (mm) 32
- E: (inch) 47/64" / (mm) 18.5
- F: (inch) 55/64" / (mm) 22
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
