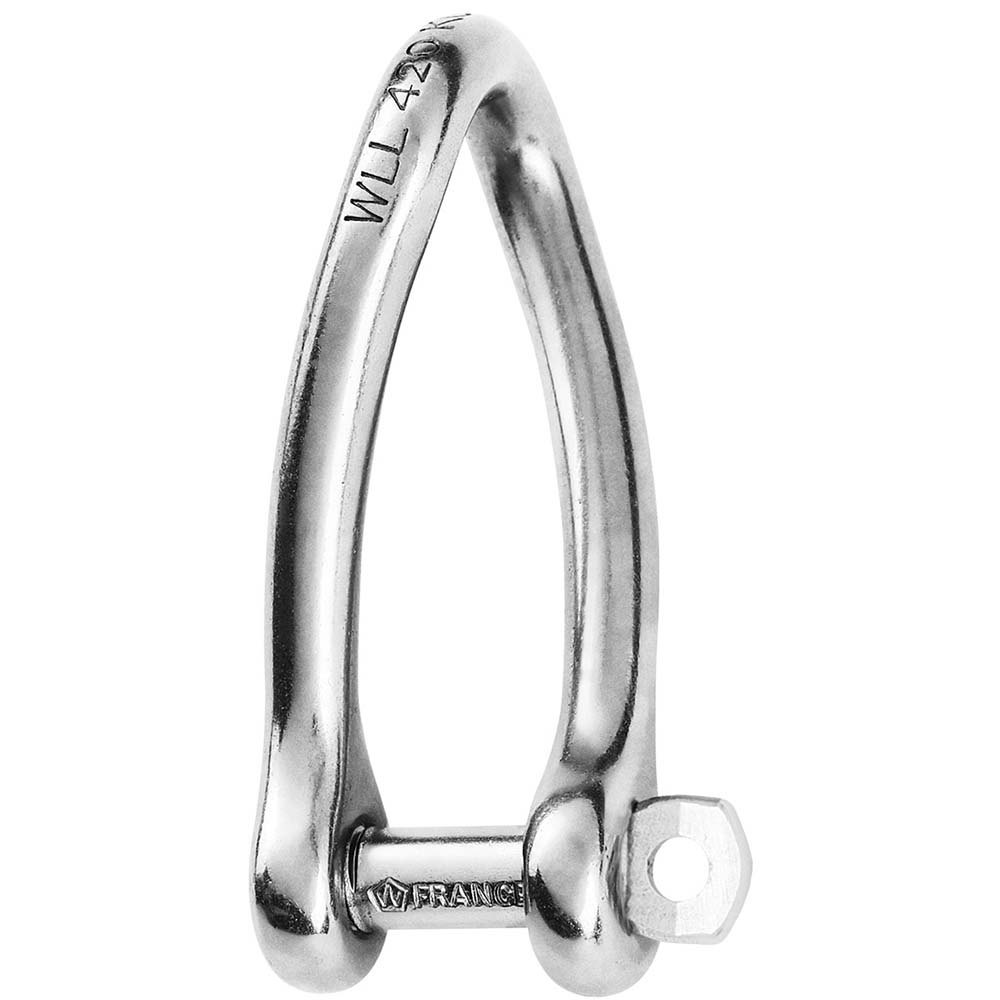

Wichard Captive Pin Twisted Shackle - Diameter 6mm - 1/4"

The Wichard Captive Pin Twisted Shackle offers unmatched security and reliability tailored for marine and industrial applications. Constructed from grade 316L stainless steel, this shackle is designed to withstand the rigors of challenging environments while providing a secure connection.

Key Features:

• Captive Pin Design: The pin is permanently connected to the body, preventing accidental loss.
• Exceptional Load Capacity: With a working load of 1320 lbs and a breaking load of 4620 lbs, it ensures safety under pressure.
• Single-Handed Operation: Allows for easy and safe operation, even in tight spaces.

Ideal for applications requiring a 90° angle twist setup, such as attaching unarticulated parts like blocks on a rail, the Wichard Captive Pin Twisted Shackle is engineered to resist loosening from vibrations. Enjoy peace of mind with its robust construction and performance guarantee, ensuring quality and satisfaction on every use.

Captive Pin Twisted Shackle - Diameter 6mm - 1/4"

Features:

• Captive pin twisted shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• Single-handed operation for more safety

Applications:

• Perfect for application where a 90° angle twist setup is required
• Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1320
• Breaking load (lb) 4620
• Weight (lb) 0.086

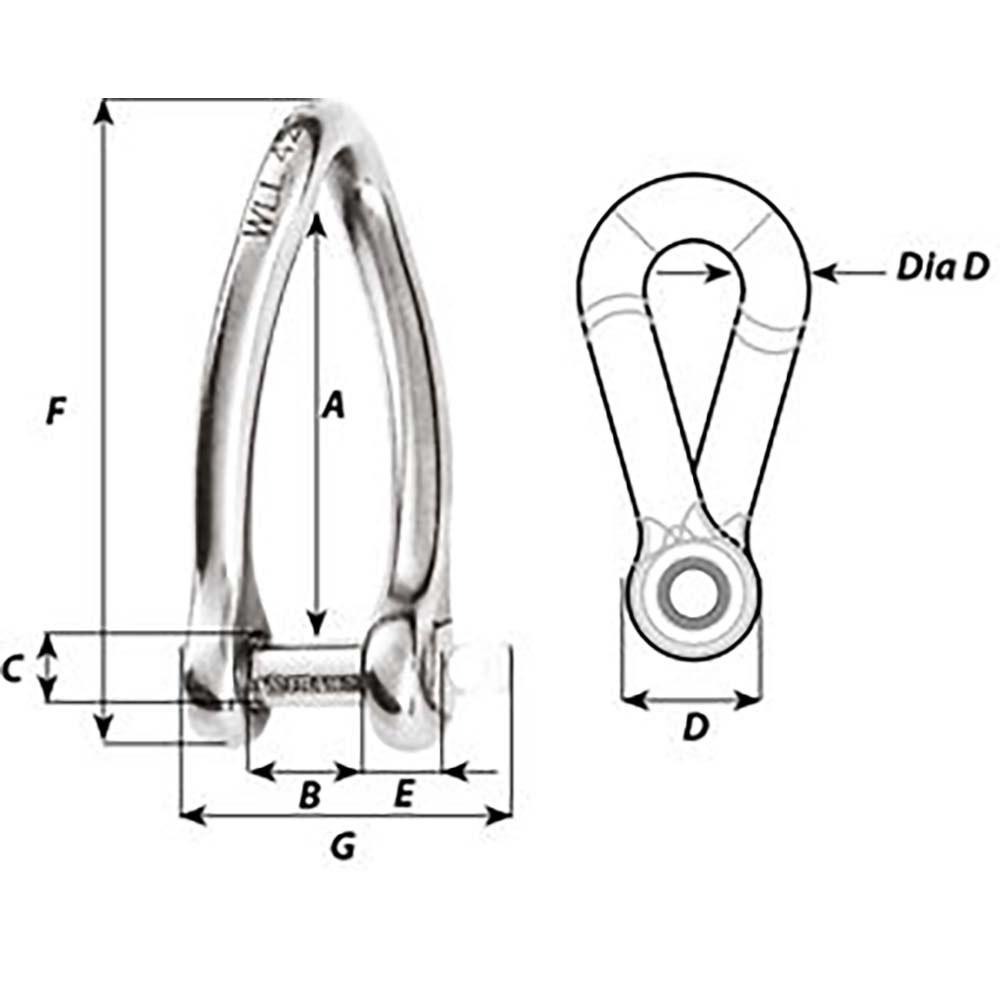

Dimensions (see 2nd image):

• A (inch) 1-47/64"
• B (inch) 15/32"
• C (inch) 9/32"
• D (inch) 35/64"
• D diameter (inch) 15/64"
• E (inch) 15/64"
• F (inch) 2-23/64"
• G (inch) 1-7/32"
