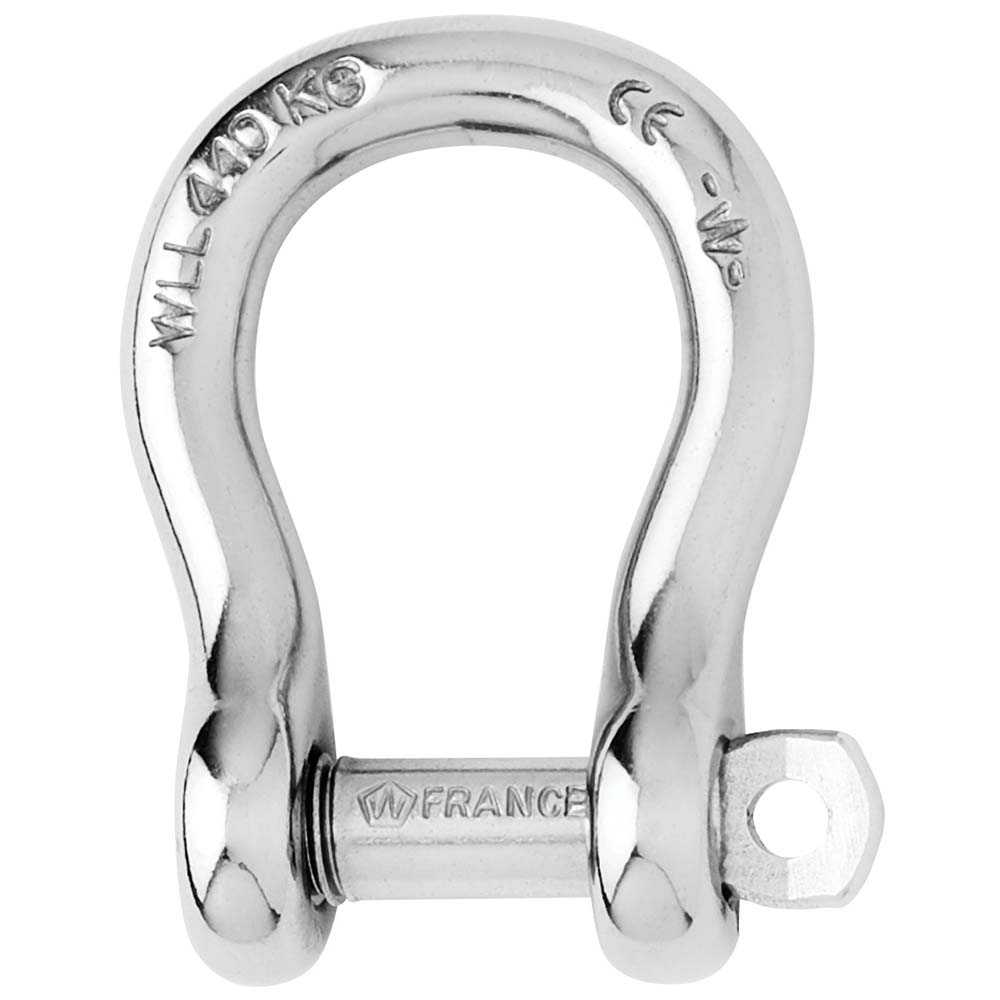

Wichard Captive Pin Bow Shackle - Diameter 5mm - 3/16"

Wichard Captive Pin Bow Shackle offers unparalleled safety and reliability tailored for industrial lifting applications. Constructed from robust grade 316L stainless steel, this shackle ensures durability and strength, making it an essential tool for professionals in demanding environments.

Key Features:

• Captive Pin Design: The pin remains connected to the body at all times, preventing any accidental loss and ensuring ease of use.
• Exceptional Load Capacity: With a Working Load Limit (WLL) of 660 lbs and a breaking load of 3300 lbs, this shackle is built to handle significant tension without compromise.
• Single-Handed Operation: Designed for quick and safe engagements, allowing for one-handed operation during critical lifting tasks.

Ideal for professionals in construction, marine, and industrial sectors, this shackle is supported by a CE marking and batch number, ensuring top-notch quality and safety standards. Choose the Wichard Captive Pin Bow Shackle for reliable performance in every lift.

Captive Pin Bow Shackle - Diameter 5mm - 3/16"

Features:

• Captive pin bow shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• Single handed operation for more safety
• WLL: only for industrial applications (lifting i.e…)
• CE marking and batch number

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1050
• WLL (lb) 660
• Breaking load (lb) 3300
• Weight (lb) 0.042

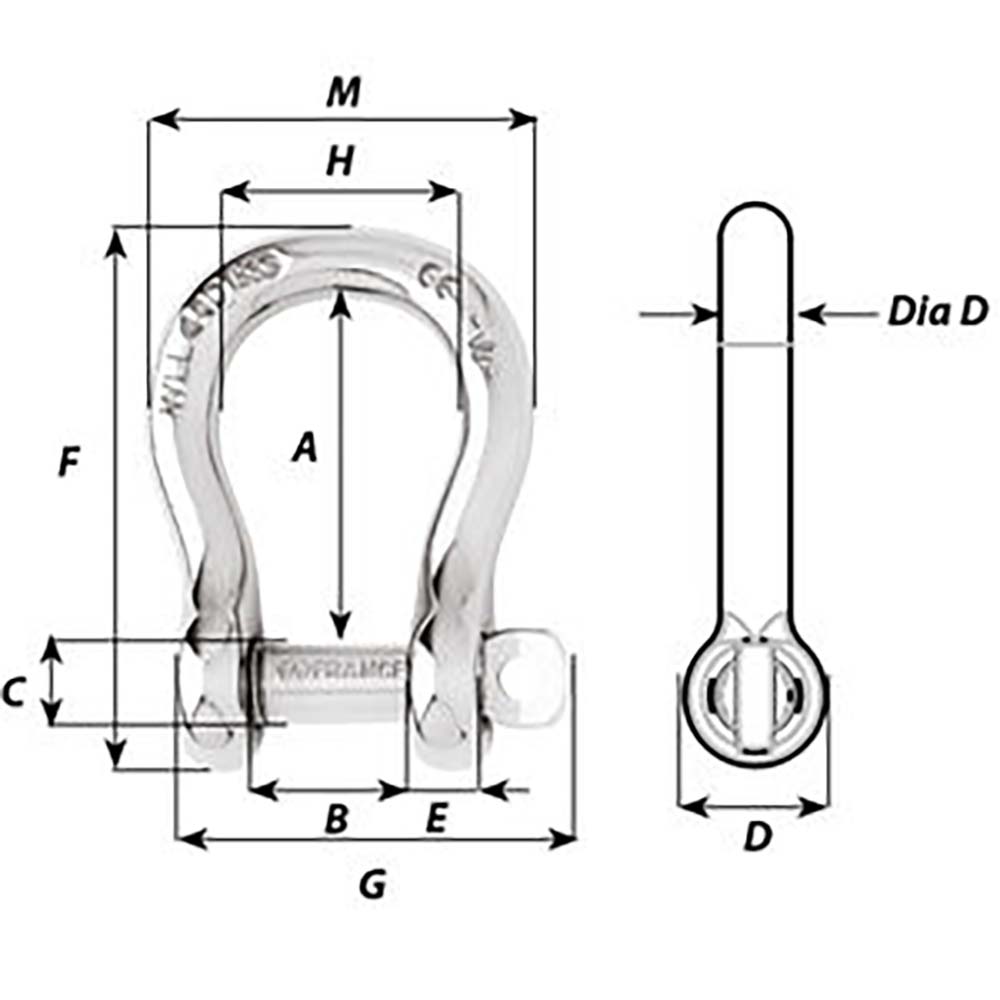

Dimensions (see 2nd image):

• A (inch) 29/32"
• B (inch) 25/64"
• C (inch) 15/64"
• D (inch) 7/16"
• D diameter (inch) 13/64"
• E (inch) 13/64"
• M (inch) 1-1/32"
