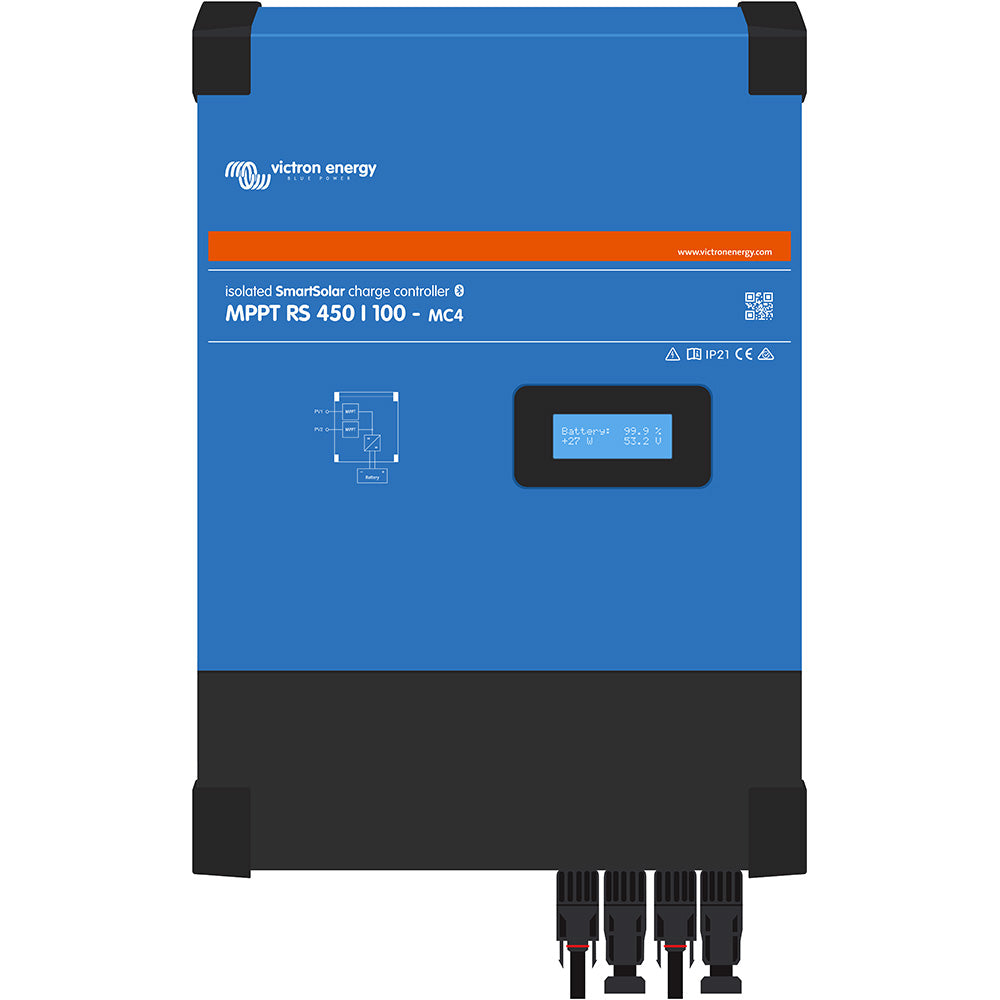

Victron SmartSolar MPPT 450 100 MC4 VE Can VE Direct Solar Charge Controller

Introducing the Victron SmartSolar MPPT 450 100 MC4 VE Can VE Direct Solar Charge Controller, a cutting-edge solution for those seeking high-performance battery management for their solar energy systems. This innovative solar charge controller is designed specifically for large series connected photovoltaic (PV) arrays, making it ideal for both off-grid and grid-connected battery systems.

With a robust capacity of 5.76kW, the SmartSolar MPPT 450/100 ensures efficient charging of 48 V DC battery banks. This means you can harness the full potential of your solar panels, ensuring your energy storage is maximized.

Key Features & Benefits

• High Efficiency: SmartSolar technology optimizes the energy harvest from your solar array, ensuring you get the most out of every sunlit hour.
• User-Friendly Interface: Equipped with VE.Direct communication ports, you can easily monitor and configure your system using Victron's apps or Bluetooth connectivity.
• Robust Design: Built to withstand harsh environmental conditions, ensuring long-lasting performance and reliability.
• Versatility: Perfect for large battery installations, enhancing the functionality of your energy system whether off-grid or connected to the grid.

The Victron Energy brand stands for quality and innovation in the field of battery chargers and energy management solutions. With this solar charge controller, you can trust that you're investing in a product designed to meet the demands of modern energy needs.

Don't settle for less when it comes to your energy solutions. Upgrade to the Victron SmartSolar MPPT 450 100 today and experience the difference in performance and efficiency! Make the smart choice for your solar energy system now!

SmartSolar MPPT 450/100-MC4 VE.Can VE.Direct 450/100

The SmartSolar MPPT RS solar charge controllers are Victron's solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid-connected battery systems.

In a 5.76kW and 11.52kW model, features include a wide 65-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, a display screen, fully programmable battery charging parameters, and active cooling. The new metal case design and fully covered electrical connections improve safety and modernize the presentation in line with the latest suite of Victron products.

MPPT: Ultra Fast Maximum Power Point Tracking

The SmartSolar RS solar charge controller connects to a PV array of between 65 and 450 Volt Voc and will efficiently charge your 48V battery bank with either 100A or 200A.The charge settings are fully programmable and can be set up for different battery chemistries, like lead-acid, lithium and more.

Setup & monitor with VictronConnect

The SmartSolar RS charge controller can be remotely controlled and configured over Bluetooth via the VictronConnect app. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, historical data and trends.

Daisy Chain Additional Units

The SmartSolar RS charge controller is equipped with VE.Can bus ports. This allows for communication with additional SmartSolar RS & VE.Can MPPT units. The additional units are simply “daisy chained” to each other with an RJ45 cable.When connected to each other, all individual charge controllers, will synchronise their charge stages. They can also send their data, via the same cable, for monitoring to a GX device (such as the Cerbo GX).

Remote Monitoring and Control

If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers.If your installation is connected to a GX device and the internet, Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; for free. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.

SmartSolar Display

The SmartSolar RS charge controller is equipped with a display on the front panel. The display reads battery volts, charge current and voltages from both array’s individually including instantaneous and total figures and unit status including any possible error codes.

I/O Connections

The SmartSolar RS charge controller is equipped with a programmable relay and options for remote temperature and voltage sensing. The remote input can accept the Victron smallBMS and other types of BMS with allow-to-charge signals.

VictronConnect

VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.
