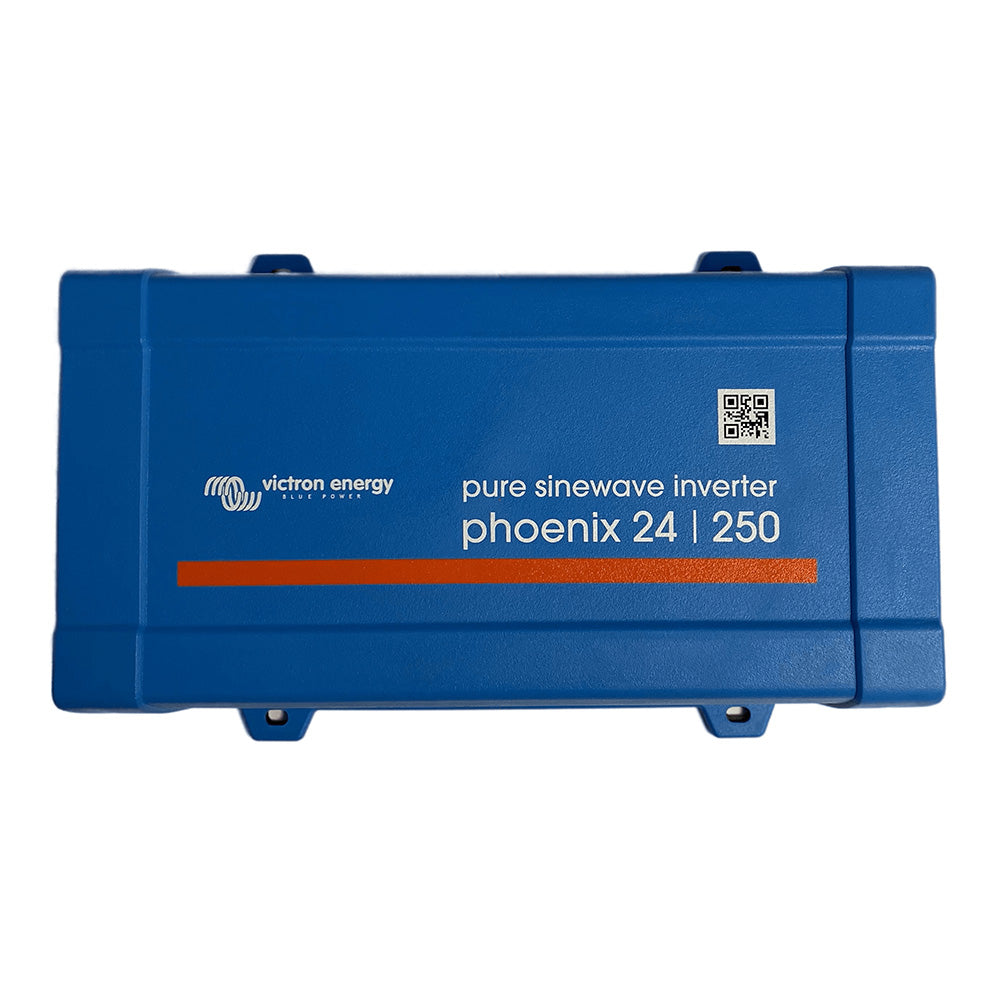

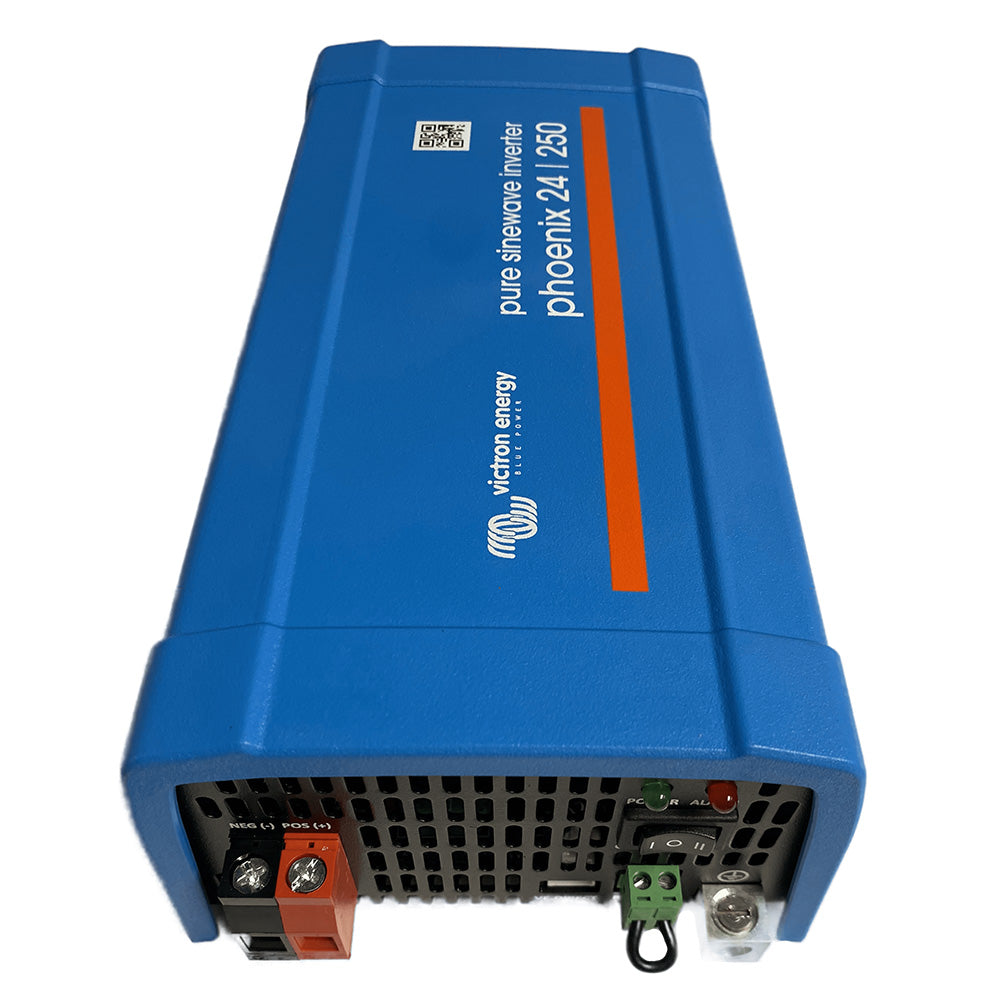

Victron Phoenix Inverter 24VDC - 250VA - 120VAC - VE.Direct - NEMA 5-15R

Victron Phoenix Inverter 24VDC - 250VA - 120VAC offers reliable power conversion tailored for your off-grid and mobile applications. This inverter allows you to efficiently power domestic equipment requiring 120V AC from leisure or automotive batteries, making it an essential component for RVs, boats, and backup power systems.

Key Features:

• VE.Direct Communication: Connects seamlessly to computers and mobile devices for real-time monitoring and configuration.
• Adjustable Power Settings: Customizable low battery voltage cut-offs and restart levels ensure optimal performance tailored to your needs.
• Compact and Durable Design: With a robust steel chassis and lightweight construction, this inverter is built to withstand various environments.

Ideal for outdoor enthusiasts and critical home systems, this product is backed by Victron's commitment to quality and performance, ensuring your power needs are consistently met. Experience the power of Victron's innovative technology today!

Inverter 24VDC - 250VA - 120VAC - VE.Direct - NEMA 5-15R

Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V, or 48VDC.

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook, and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully configurable:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load-dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage, % load, and alarms
• Please get in touch with your dealer for any returns, repairs, or support issues related to this product.

Phoenix Inverter 24/250 Specifications:

• Continuous Power at 25°C: 250VA
• Continuous Power at 25°C / 40°C: 200 / 175W
• Peak Power: 400W
• Output AC Voltage / Frequency (adjustable): 120VAC +/- 3%
• Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V
• DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V
• Dynamic (Load Dependent) DC low shut down (fully configurable): Dynamic cut-off
• DC Low Restart and Alarm (adjustable): 10,9 / 21,8 / 43,6V
• Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V
• Maximum Efficiency: 87 / 88 / 88%
• Zero-Load Power: 4,2 / 5,2 / 7,9W
• Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 0,8 / 1,3 / 2,5W
• ECO Mode Stop and Start Power Setting: Adjustable
• Protection: a - f
• Operating temperature Range: -40 to +65°C (fan-assisted cooling) / Derate 1,25% per °C above 40°C
• Humidity (non-condensing): Max 95%

Enclosure:

• Material & Color: Steel chassis and plastic cover (blue Ral 5012)
• Battery-Connection: Screw terminals
• Maximum Cable cross-Section 10mm^2 / AWG8
• Standard AC outlets 230V: Schuko (CEE 7/4), IEC-320 (male plug included), UK (BS 1363), AU/NZ (AS/NZS 3112), 120V: Nema 5-15R, GFCI
• Protection Category: IP 21
• Weight: 2,4kg / 5,3lbs
• Dimensions (h x w x d, mm) / (h x w x d, inch): 86 x 165 x 260 mm / 3.4 x 6.5 x 10.2 in.

Accessories:

• Remote On-Off: Yes
• Automatic Transfer Switch: Filax
