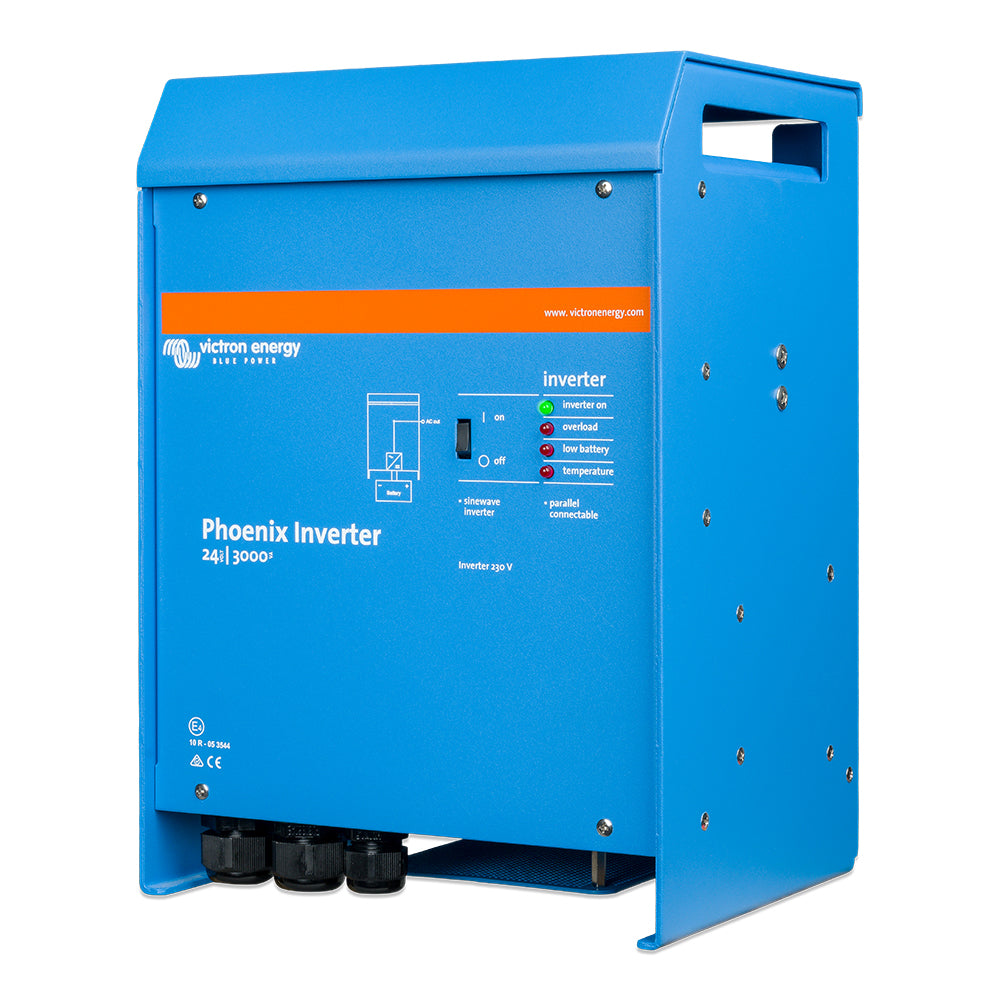

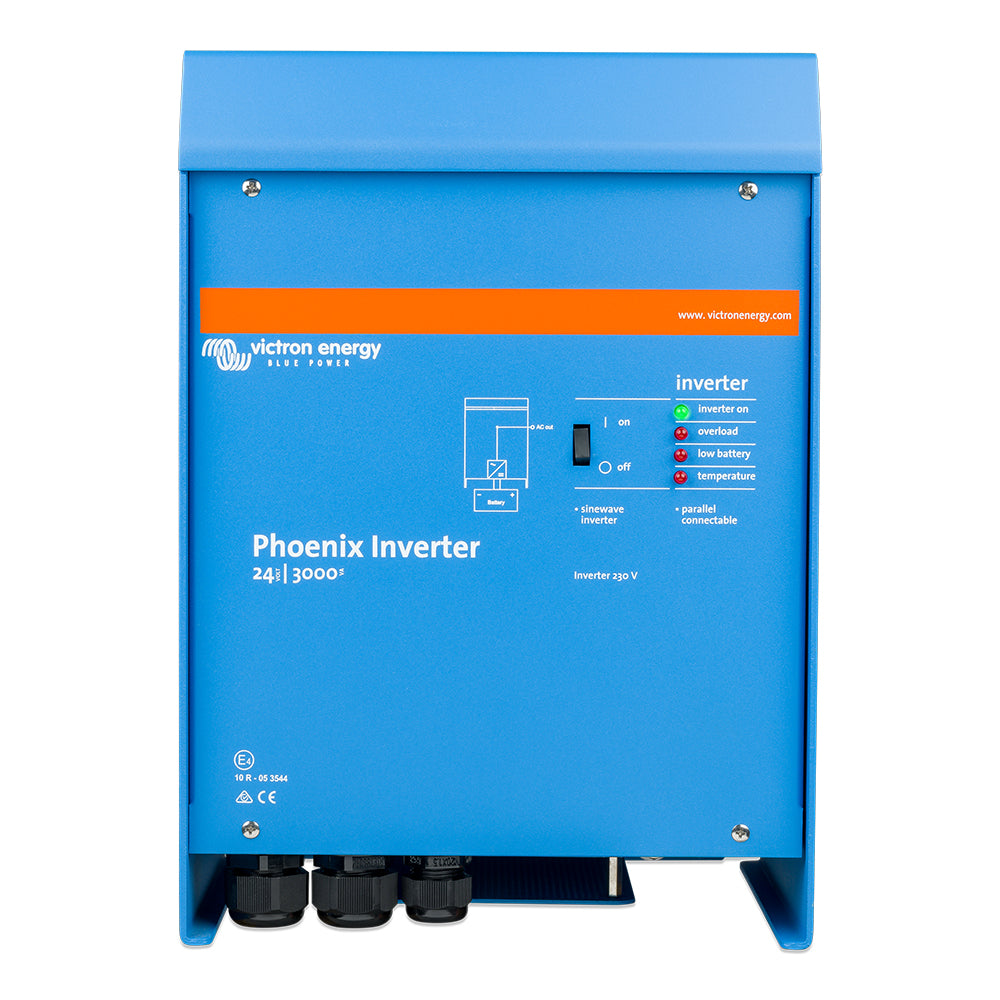

Victron Phoenix Inverter - 12VDC - 3000VA - 120VAC - 50/60Hz

The Victron Phoenix Inverter offers high efficiency and reliable pure sine wave output tailored for a variety of power applications. Perfect for those who need a dependable inverter for challenging loads, this product sets itself apart in the inverter market.

Key Features:

• High Peak Power: Engineered with SinusMax technology, it provides exceptional start-up power for demanding appliances like refrigeration compressors.
• Compact and Lightweight: This inverter combines high frequency and line frequency technologies, making it easy to install while ensuring optimal performance.
• Parallel and 3-Phase Operation Capability: Up to 6 units can be connected in parallel for higher power output, making it ideal for commercial applications.

Ideal for marine, automotive, and off-grid setups, this product is supported by a robust warranty and unique customization options, ensuring quality and satisfaction. With integrated VE.Bus connectivity, you can easily tailor the inverter settings to suit your specific needs using the VictronConnect software.

Phoenix Inverter - 12 VDC - 3000W - 120 VAC - 50/60Hz

Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.

SinusMax - Superior engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.

Extra start-up power

A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.

Parallel and 3-phase operation capability

Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.

Communications interface

These larger Phoenix inverter models come with a VE.Bus port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface (see under accessories). Together with our VictronConnect or VEConfigure software,  which can be downloaded free of charge from our website, parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to a GX device (eg Cerbo GX) for monitoring and control.
