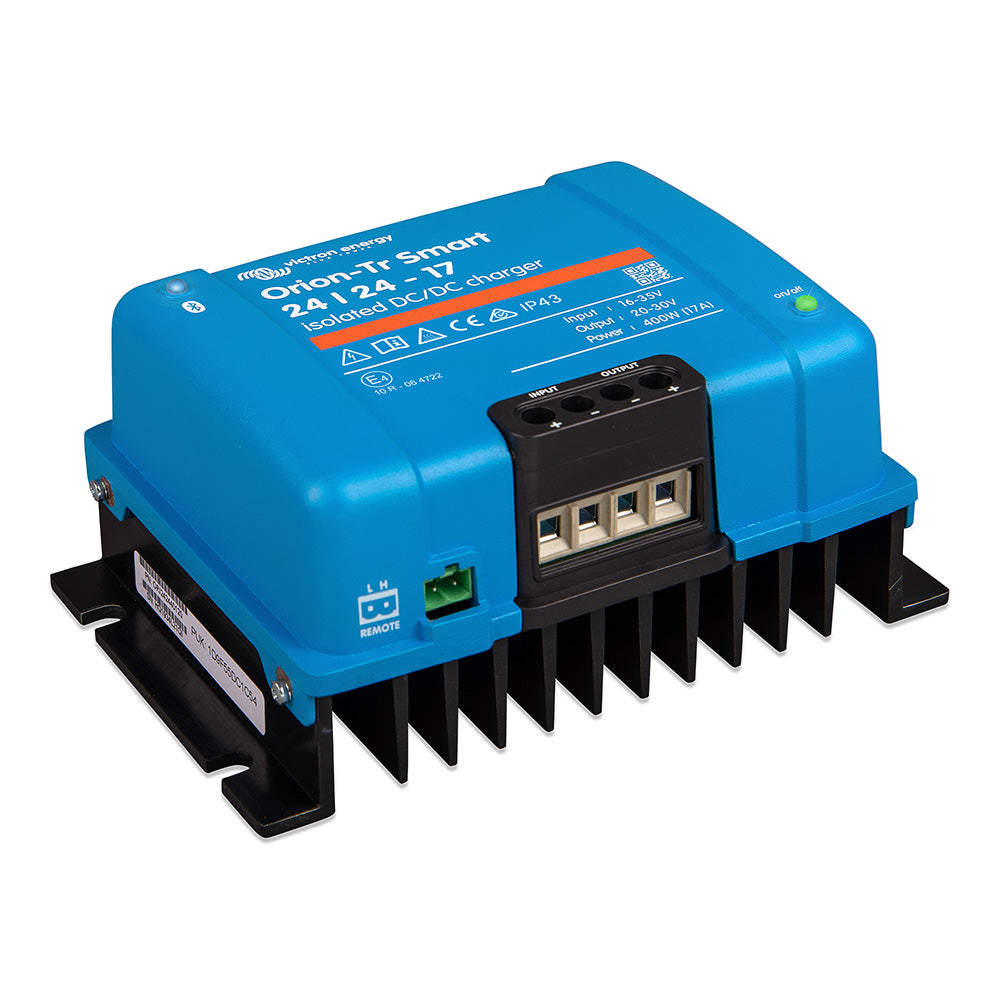

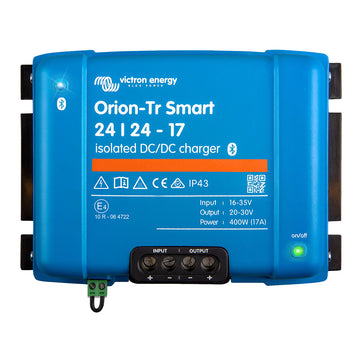

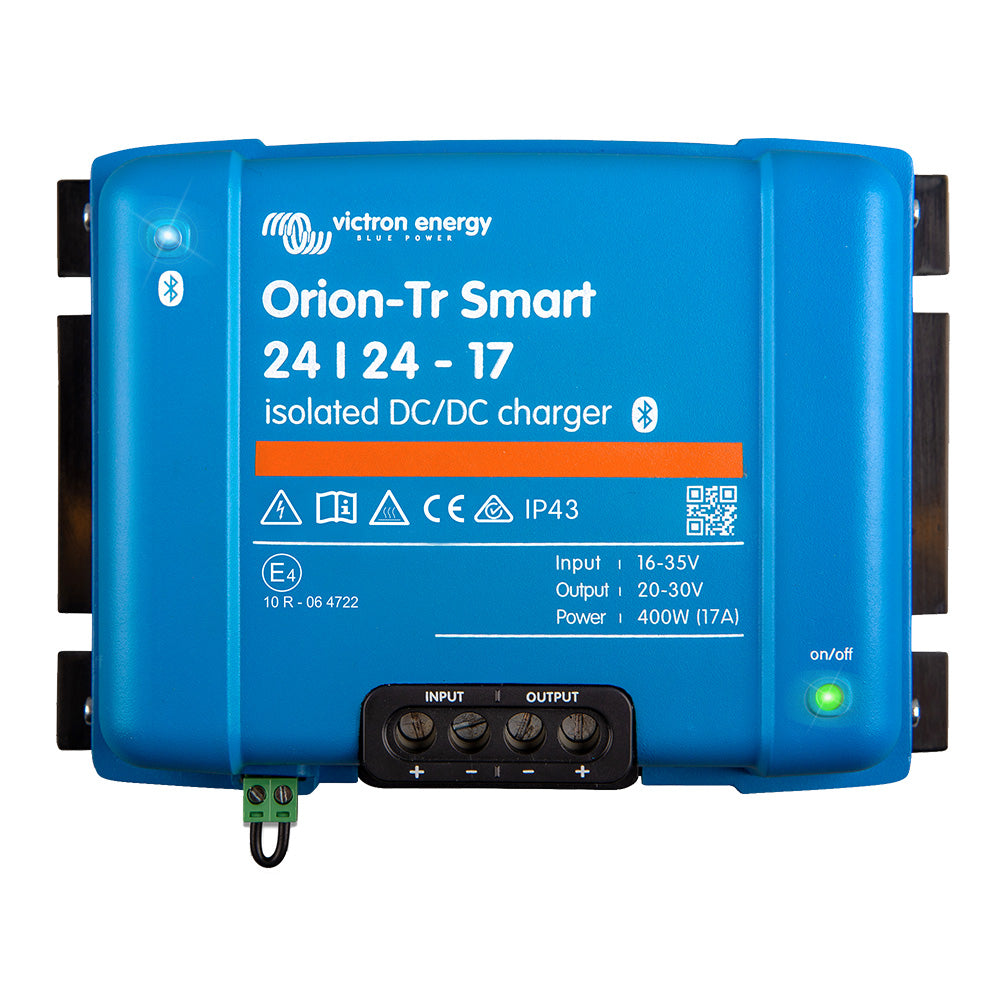

Victron Orion-TR Smart DC-DC 24/24-17 17A Isolated Charger

Victron Orion-TR Smart DC-DC 24/24-17 by Victron Energy offers superior charging efficiency tailored for vehicles with smart alternators and advanced battery management systems. This innovative 24V to 24V isolated charger is ideal for enhancing the performance of your lead-acid and lithium batteries, ensuring optimal charging and power supply.

Key Features:

• Adaptive 3-Stage Charge Algorithm: Automatically adjusts charge time for lead-acid and lithium batteries, preventing overcharging while ensuring complete recharge.
• Bluetooth Enabled: Monitor and configure settings using the VictronConnect App, making it easier to track performance and updates.
• Flexible Remote Operation: Features a remote on/off switch option for convenient control, making it suitable for various installations.

Ideal for marine, automotive, and RV applications, this product is supported by Victron's renowned quality assurance, ensuring long-lasting performance and satisfaction.

Orion-TR Smart Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMP

The Orion-Tr Smart DC-DC charger is a professional DC-to-DC adaptive 3-stage charger with built-in Bluetooth.

Bluetooth Smart Enabled:

• Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available.
• Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product.

Fully Programmable:

• Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism.
• Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float:
• For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged.
• For lithium batteries, the absorption time is fixed (the default is 2 hours).
• Alternatively, a fixed output voltage can be chosen.

Suitable for Use in Vehicles with a Smart Alternator (Euro 5 and Euro 6 Engines):

• The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents the unwanted discharge of the starter battery (see manual for details).

Remote On/Off:

• A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current:

• An unlimited number of units can be connected in parallel.

High Temperature Protected:

• The output current will reduce at high ambient temperatures.

IP43 Protection:

• When installed with the screw terminals oriented downward.

Screw Terminals:

• No special tools are needed for installation.

Input fuse (not replaceable)

Specifications:

• Input Voltage Range: 20-35 V
• Under Voltage Shut Down: 14 V
• Under Voltage Restart: 15 V
• Nominal Output Voltage: 24.2 V
• Output Voltage Adjust Range: 20-30 V
• Output Voltage Tolerance: +/- 0,2 V
• Output Noise: 2 mV rms
• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 17 A
• Maximum Output Current (10 S) at Nominal Output Voltage: 25 A
• Short Circuit Output Current: 40A
• Cont. Output Power at 25 Degrees C: 480 W
• Cont. Output Power at 40 Degrees C: 400 W
• Efficiency: 89%
• No Load Input Current (2): < 80 mA
• Standby Current: Less than 1 mA
• Galvanic Isolation: 200 VDC between input, output, and case
• Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C)
• Humidity: Max. 95 % non-condensing
• DC Connection: Screw terminals
• Maximum Cable Cross-Section: 16 mm² AWG6
• Weight: 1,6 kg (3.5 lb)
• Dimensions (h x w x d) 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
• Protection Category: IP43 (electronic components), IP22 (connection area)
• Safety Standards: EN 60950
• Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
• Automotive Directive Standards: ECE R10-5
