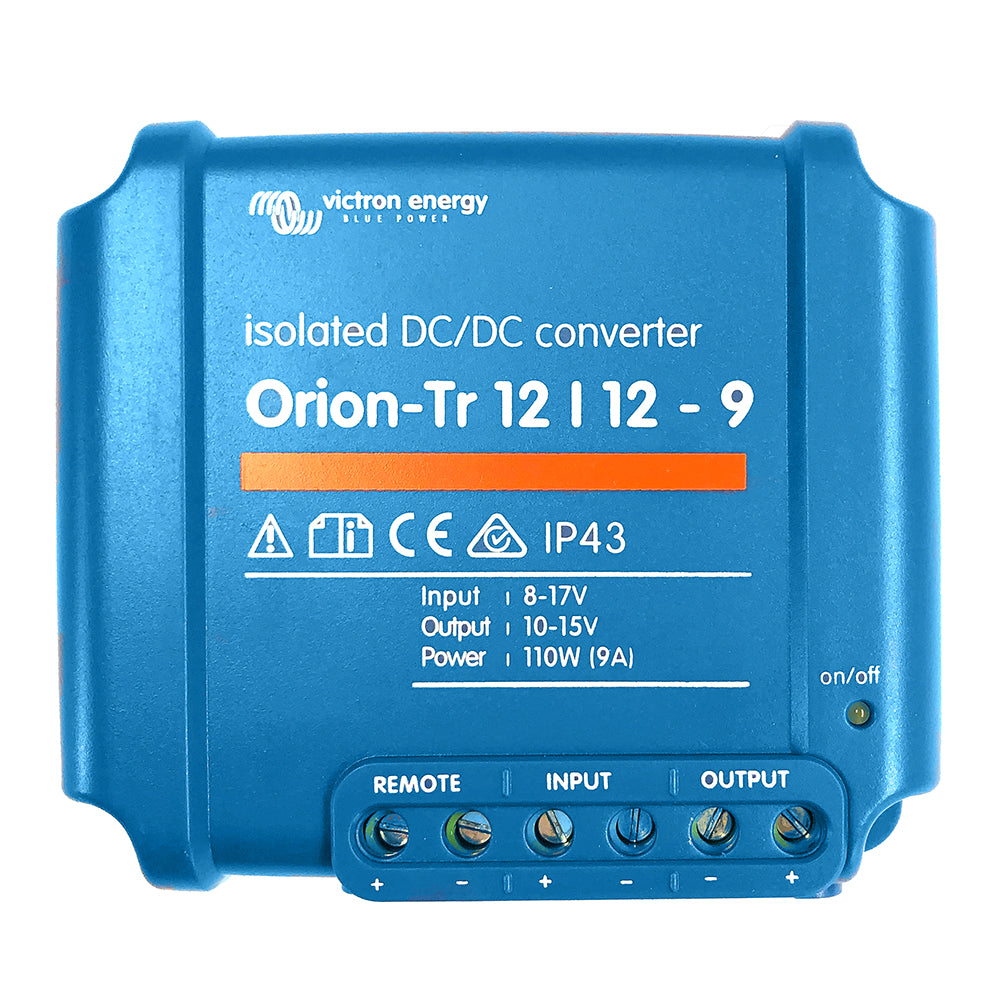

Victron Orion-TR DC-DC Converter - 12 VDC to 12 VDC - 9AMP Isolated

The Victron Orion-TR DC-DC Converter offers reliable power conversion tailored for automotive and marine applications. With an output of 9 amps and galvanic isolation, this isolated 12 VDC to 12 VDC converter is perfect for ensuring stable power to sensitive devices in your vehicle or boat.

Key Features:

• Remote On/Off Terminal: Easily control the converter with a low power switch—no high current switch needed.
• High Temperature Protection: Automatically reduces output current to prevent overheating, ensuring long-lasting performance.
• Paralleled Configuration: Connect multiple units in parallel to boost output current, perfect for customizing your power setup.

Ideal for automotive enthusiasts and marine operators, this product is supported by Victron's industry-leading quality assurance, ensuring reliability and satisfaction. With IP43 protection and a wide operating temperature range of -20 to +55°C, the Victron Orion-TR converter is designed to withstand the toughest conditions.

Orion-TR 12/12-9A (110W) Isolated DC-DC Converter

Remote On/Off Terminal

The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation.

Input Fuse (not replaceable)

On 12 V and 24 V input models only.

Adjustable Output Voltage

Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).

Specifications:

• Input Voltage Range: 8-17 V
• Under Voltage Shut Down: 7 V
• Under Voltage Restart: 7.5 V
• Nominal Output Voltage: 12.2 V
• Output Voltage Adjust Range: 10-15 V
• Output Voltage Tolerance: +/- 0,2 V
• Output Noise: 2 mV rms
• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 9 A
• Maximum Output Current (10 S) at Nominal Output Voltage: 12.5 A
• Short Circuit Output Current: 32 A
• Cont. Output Power at 25 Degrees C: 110 W
• Cont. Output Power at 40 Degrees C: 85 W
• Efficiency: 87 %
• No Load Input Current (2): < 50 mA
• Current Consumption: < 200uA when disabled via its remote port
• Galvanic Isolation: 200 VDC between input, output, and case
• Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C)
• Humidity: Max. 95 % non-condensing
• DC Connection: Screw terminals
• Maximum Cable Cross-Section: 6 mm² AWG10
• Weight: .42 kg (1 lb)
• Dimensions (H x W x D): 100 x 113 x 47 mm (4.0 x 4.5 x 1.9 inch)
• Safety Standards: EN 60950
• Immunity Standards: EN 61000-6-3, EN 61000-6-1, EN 55014-2
• Automotive Directive Standards: ECE R10-5
