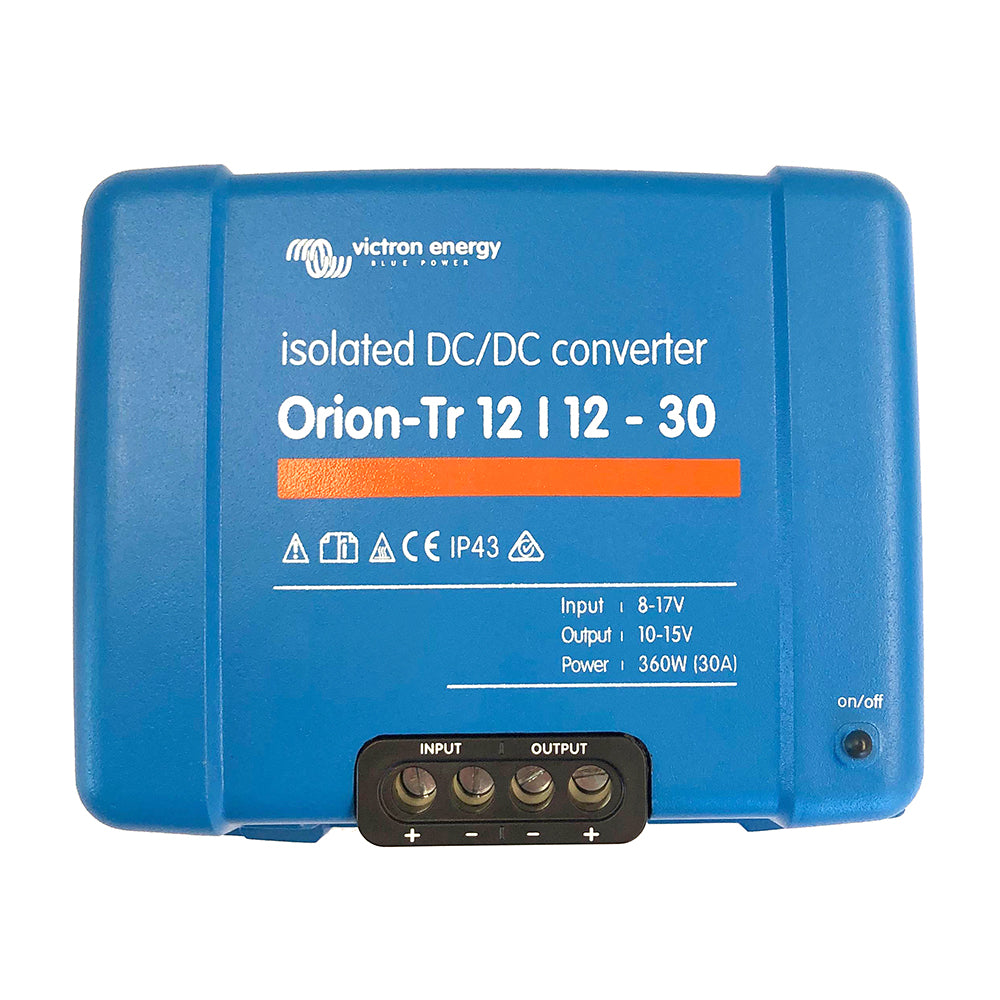

Victron Orion-TR DC-DC Converter - 12 VDC to 12 VDC - 30AMP Isolated

Victron Orion-TR DC-DC Converter offers exceptional power conversion tailored for automotive and marine applications. This reliable 30AMP isolated converter ensures seamless voltage adaptation, providing a steady 12 VDC output even in challenging environments.

Key Features:

• Remote On/Off Terminal: Easily control power without high current switches, making it convenient and efficient.
• High Temperature Protection: Automatically reduces output current in high ambient temperatures, ensuring durability.
• IP43 Protection: Designed for reliable performance when installed with screw terminals facing downward, protecting against dust and moisture.

Ideal for vehicles, boats, and off-grid setups, this product is supported by Victron's commitment to quality and reliability, ensuring customer satisfaction with every use. With options to parallel multiple units for increased output, this converter sets the standard in the DC-DC converter market.

Orion-TR 12/12-30A (360W) Isolated DC-DC Converter

Remote On/Off Terminal

The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation.

Input Fuse (not replaceable)

On 12 V and 24 V input models only.

Adjustable Output Voltage

Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).

Specifications:

• Input Voltage Range: 10-17 V
• Under Voltage Shut Down: 7 V
• Under Voltage Restart: 7.5 V
• Nominal Output Voltage: 12.2 V
• Output Voltage Adjust Range: 10-15 V
• Output Voltage Tolerance: +/- 0,2 V
• Output Noise: 2 mV rms
• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A
• Maximum output current (10 s) at nominal output voltage minus 20%: 40 A
• Short Circuit Output Current: 60 A
• Cont. Output Power at 25 Degrees C: 430 W
• Cont. Output Power at 40 Degrees C: 360 W
• Efficiency: 87 %
• No Load Input Current (2): < 80 mA
• Current Consumption: < 200uA when disabled via its remote port
• Galvanic Isolation: 200 VDC between input, output, and case
• Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C)
• Humidity: Max. 95 % non-condensing
• DC Connection: Screw terminals
• Maximum Cable Cross-Section: 16 mm² AWG6
• Weight: 1.8 kg (4 lb)
• Dimensions (H x W x D): 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch)
• Safety Standards: EN 60950
• Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
• Automotive Directive Standards: ECE R10-5
