Victron Lynx Distributor: Modular DC Bus Bar for Efficient Power Management

Victron Lynx Distributor offers seamless DC power distribution tailored for marine and mobile applications. This innovative solution is designed to streamline your electrical system by efficiently managing multiple DC circuits with ease.

Key Features:

• Modular Design: Built as part of the versatile Lynx distribution system, accommodating up to four individual DC equipment circuits or loads.
• LED Status Indicators: Each fuse location includes an LED to monitor the condition of fuses, providing real-time feedback on your system’s health.
• Connection Ready: Comes with RJ11 fly leads for easy connectivity to the Lynx Shunt, ensuring wide input power supply (8 to 70VDC).

Ideal for boating enthusiasts, RV owners, and off-grid applications, this product is backed by a reliable warranty, ensuring quality and peace of mind. With its advanced monitoring features, the Lynx Distributor helps you maintain optimal performance and safety across your electrical system.

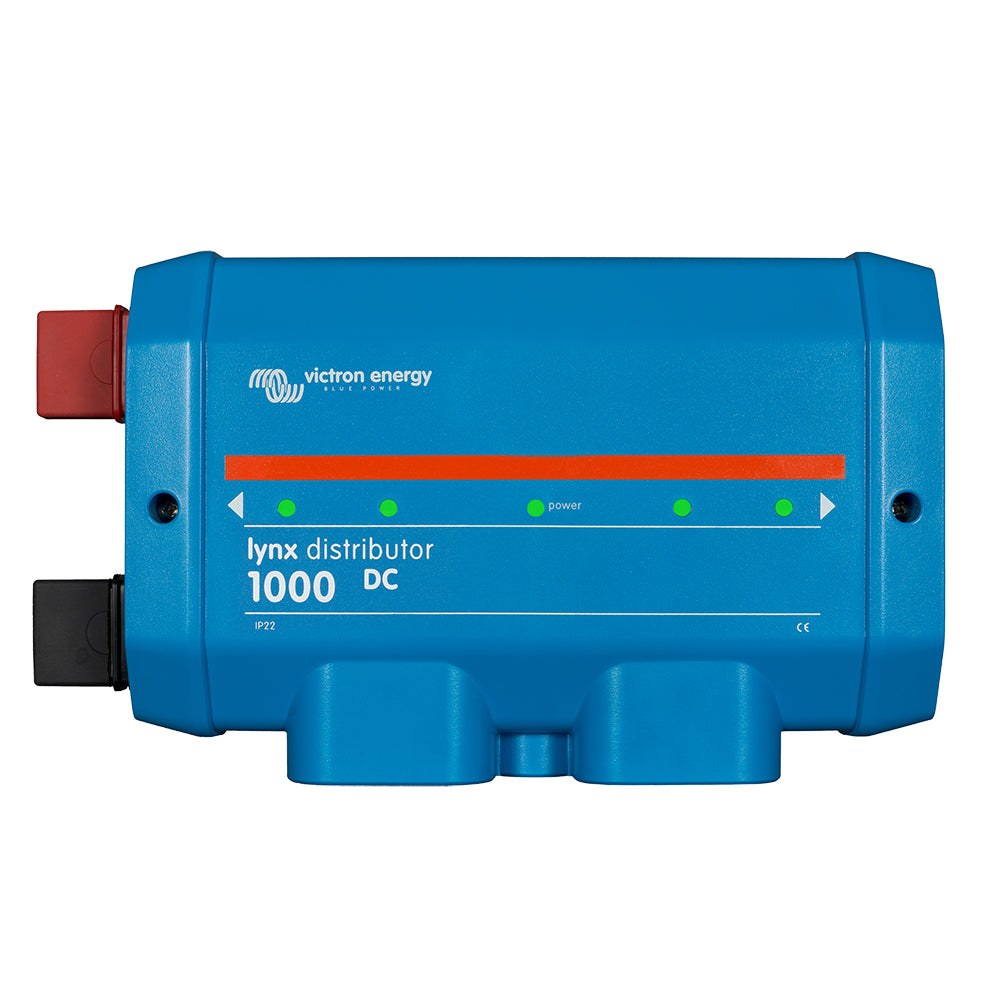

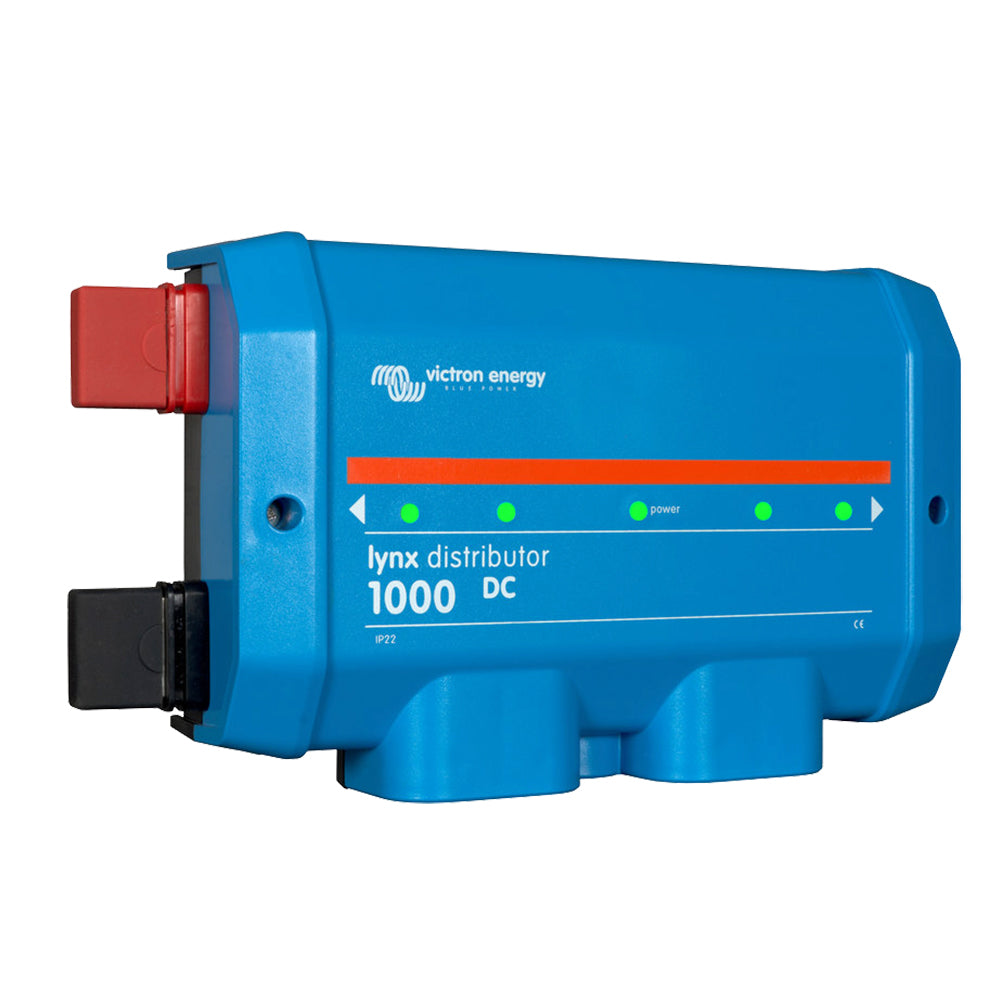

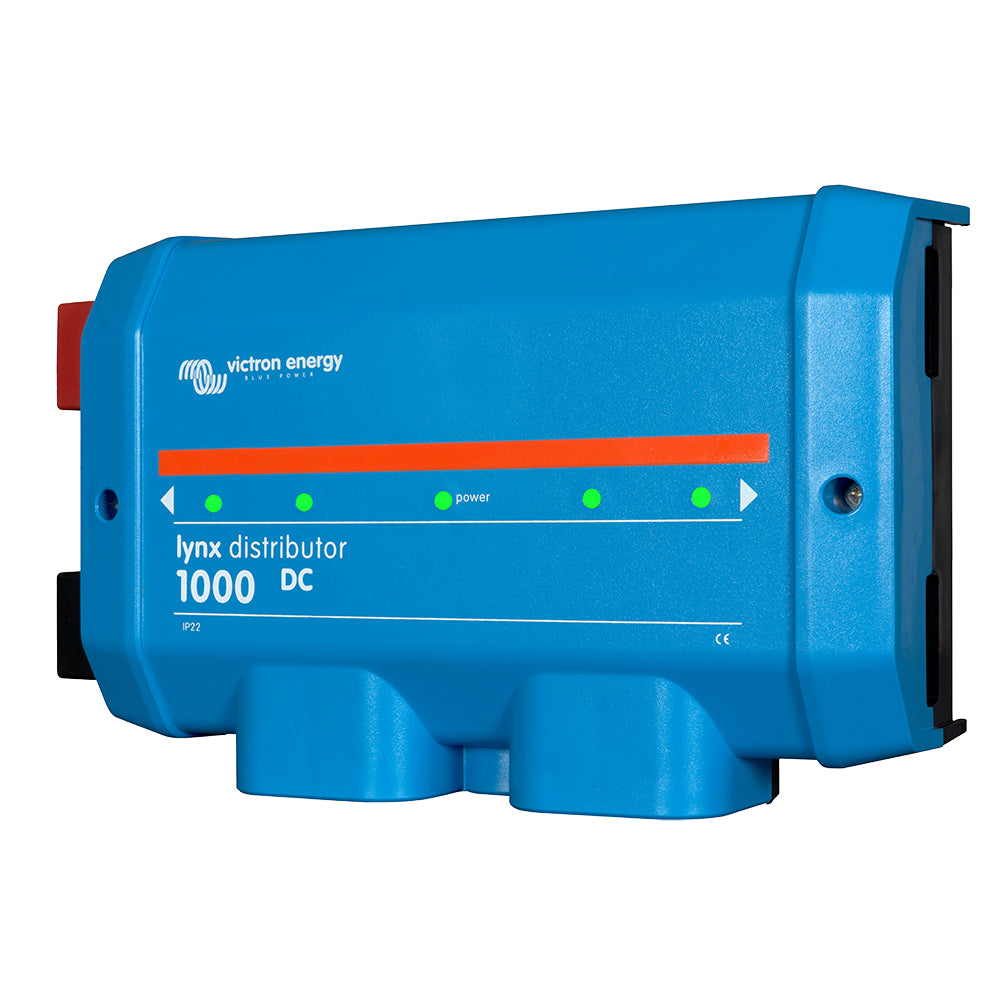

Lynx Distributor

A modular DC bus bar, with locations for four DC fuses. It will monitor the status of each fuse, and indicate its condition with a LED on the front. Part of the modular Lynx distribution system.

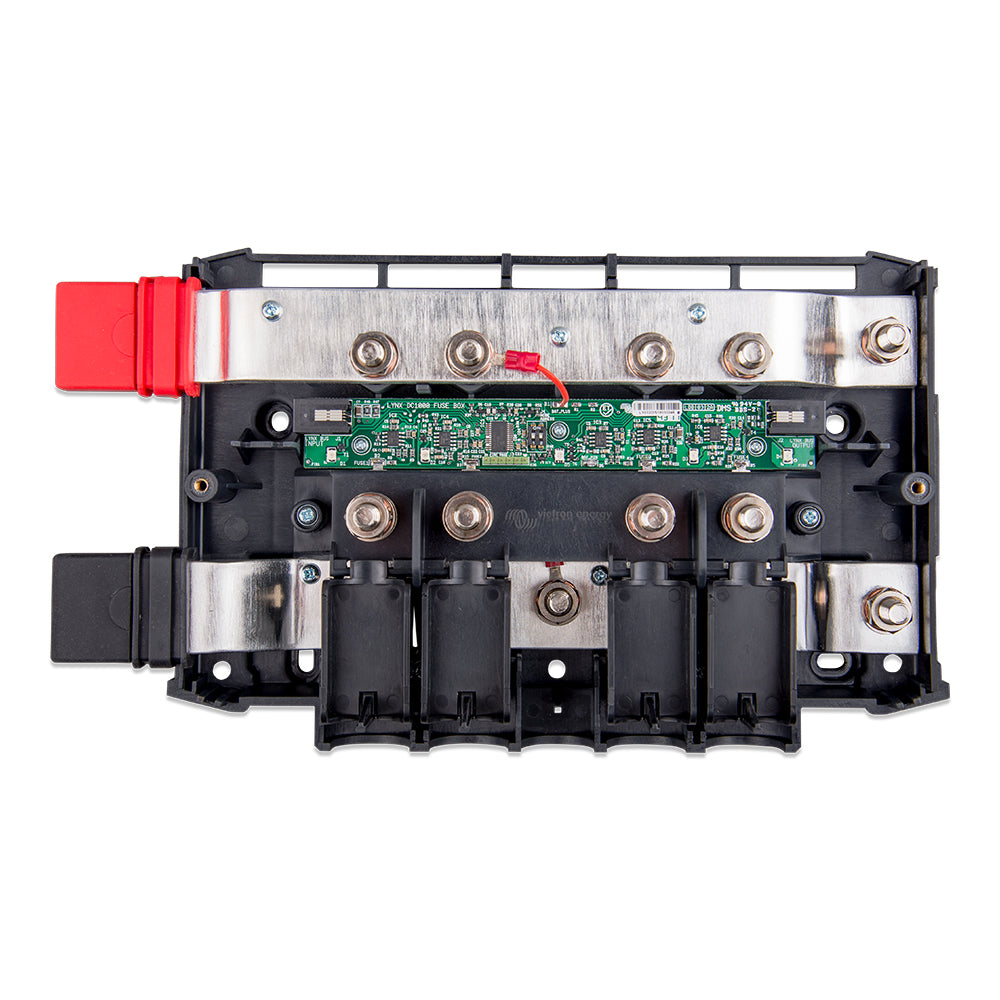

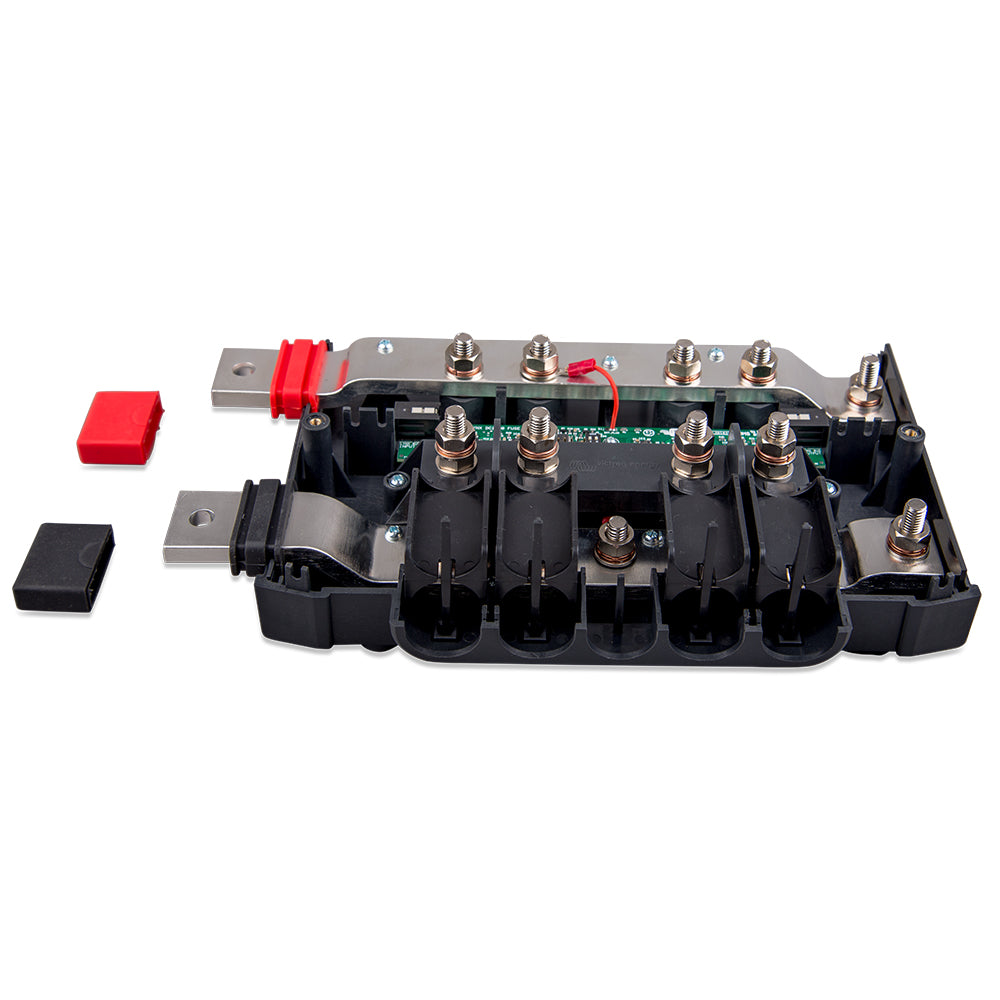

Contains a positive and negative bus-bar and provides a connection for 4 individual DC equipment circuits, loads or DC groups. It has a space for individual DC fuses per DC group.  There is an optional feature of an LED for each fuse to indicate if fuse is blown.

If you wish to use the fuse indication LEDs on the Lynx Distributor, it also requires a connection to a Lynx Shunt. The Lynx Shunt contains the necessary wide input (8 to 70VDC) power supply to output the required 5V (4,5V-5,5V) power requirement of the Lynx Distributor circuit board.

RJ11 fly leads are used to connect the Lynx Shunt to the Distributor. This RJ11 cable is supplied with the Distributor in the box. There are two ports on the Lynx Shunt, and it is possible to use either.

When all is OK, only the central LED is green; when a fuse has blown (or is missing) the central and blow fuse circuit LEDs turn red. If you are not using all connection points in your DC distribution, it may be necessary to fit dummy fuses to extinguish the red LEDs
