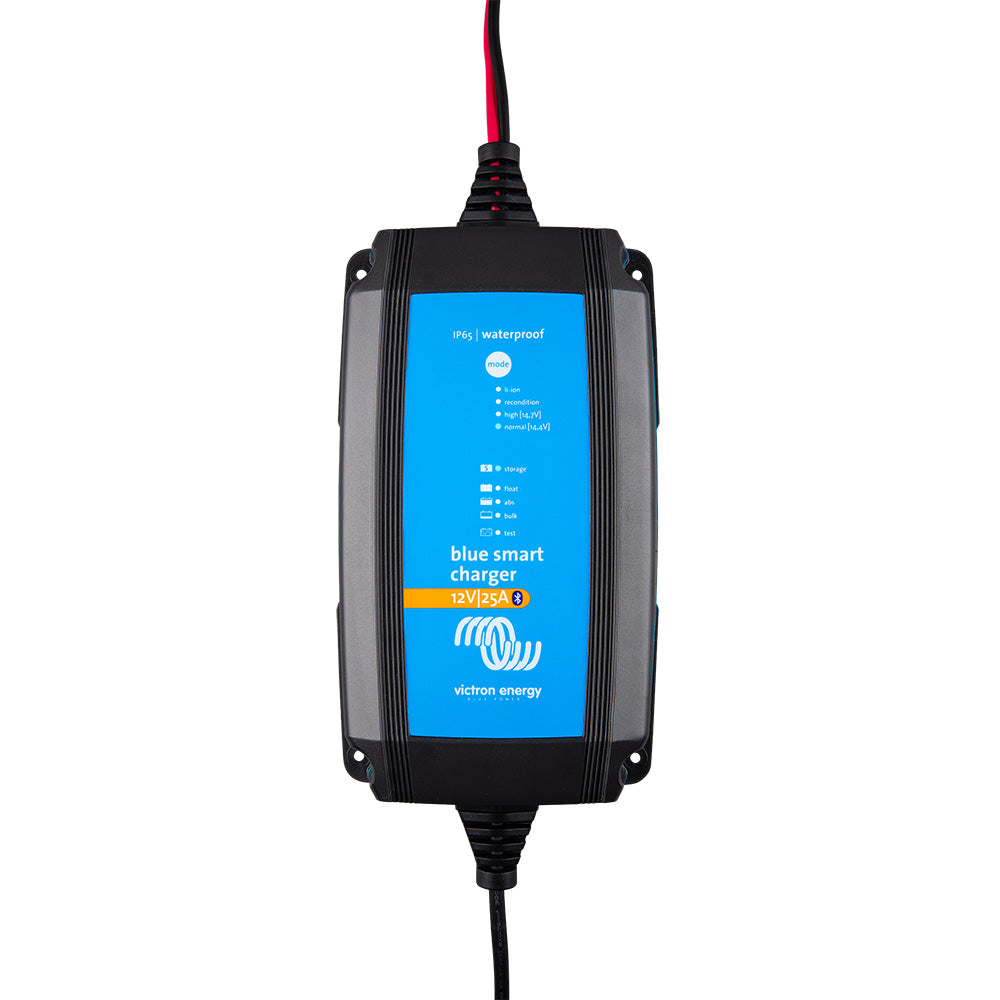

Victron BlueSmart IP65 Charger 12/25 (1) 120V NEMA 1-15P

Victron BlueSmart IP65 Charger 12/25 (1) offers advanced charging technology tailored for motor vehicles, classic cars, boats, and campervans. This professional battery charger stands out in its category with a built-in Bluetooth feature, allowing for seamless monitoring and management of battery health.

Key Features:

• Seven-Step Charging Algorithm: Ensures optimal charging and extends battery life by maintaining health and performance.
• Deep Battery Recovery: Capable of recharging deeply-discharged batteries by force-feeding low current for effective recovery.
• Bluetooth Connectivity: Easily manage charger settings and monitor battery status via the VictronConnect app on your smartphone or tablet.

Ideal for automotive enthusiasts and marine applications, this product is supported by UL approval and a robust design, ensuring quality and satisfaction. Don't miss out on enhancing your battery management experience with the Victron BlueSmart IP65 Charger, where reliability meets innovation!

BlueSmart IP65 Charger 12/25 (1) 120V NEMA 1-15P UL Approved

The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in the workshop and on motor vehicles, such as classic cars, motorbikes, boats, and campervans.

The Battery Is Charged, Smartly... To Perfect Condition

The seven-step charging algorithm gets the most out of a battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and gives it a longer life.

Recovery of Deeply-Discharged ‘Dead’ Batteries

Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.

Connect the Battery with Ease

The charger comes with both crocodile clips and M8 eyelets, making it easy to connect to the battery. If users wish, they can leave it permanently connected.

Check the Status of the Battery Remotely

The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet, or laptop. All settings of the charger can be configured with the VictronConnect app.

Specifications:

• Input Voltage: 120 VAC
• Efficiency: 94%
• Standby Power Consumption: 0.5W
• Minimum Battery Voltage: Starts charging from down to 0V
• Charge Voltage 'Absorption': Normal: 14.4V High: 14.7V Li-ion: 12.4V
• Charge Voltage 'Float': Normal: 13.8V High: 13.8V Li-ion: 13.5V
• Charge Voltage 'Storage': Normal: 13.2V High: 13.2V Li-ion: 13.5V
• Charge Current: 25A
• Temperature Compensation (Lead-Acid Batteries Only): 16 mV/degrees C (18mV/degrees F
• Can Be Used as Power Supply: Yes
• Back Curreny Drain: 0.7Ah/month  (1mA)
• Protection: Reverse polarity; Output short circuit; Over temperature
• Operating Temp. Range: -40 to +60 degrees C (full rated output up to 30 degrees C) -40  to +140 degrees F (full rated output up to 90 degrees F)
• Humidity (non-condensing): Max 95%

Enclosure Specifications:

• Battery-Connection: Black and red cable of 1.5 meters (4.9 feet)
• 120 V Ac-Connection: Cable of 1.8 meters (5.9 feet) with US NEMA 1-15 plug
• Protection Category: IP65 (splash and dust proof, and ignition protected)
• Weight: 0,9kg (2lbs)
• Dimensions (H x W x D): 12/25: 60 x 105 x190mm 2.3 x 4.1x 7.5 inches

Standards:

• Safety: UL 1236, CSA C22.2, EN 60335-1, 60335-2-29
• Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
• Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
