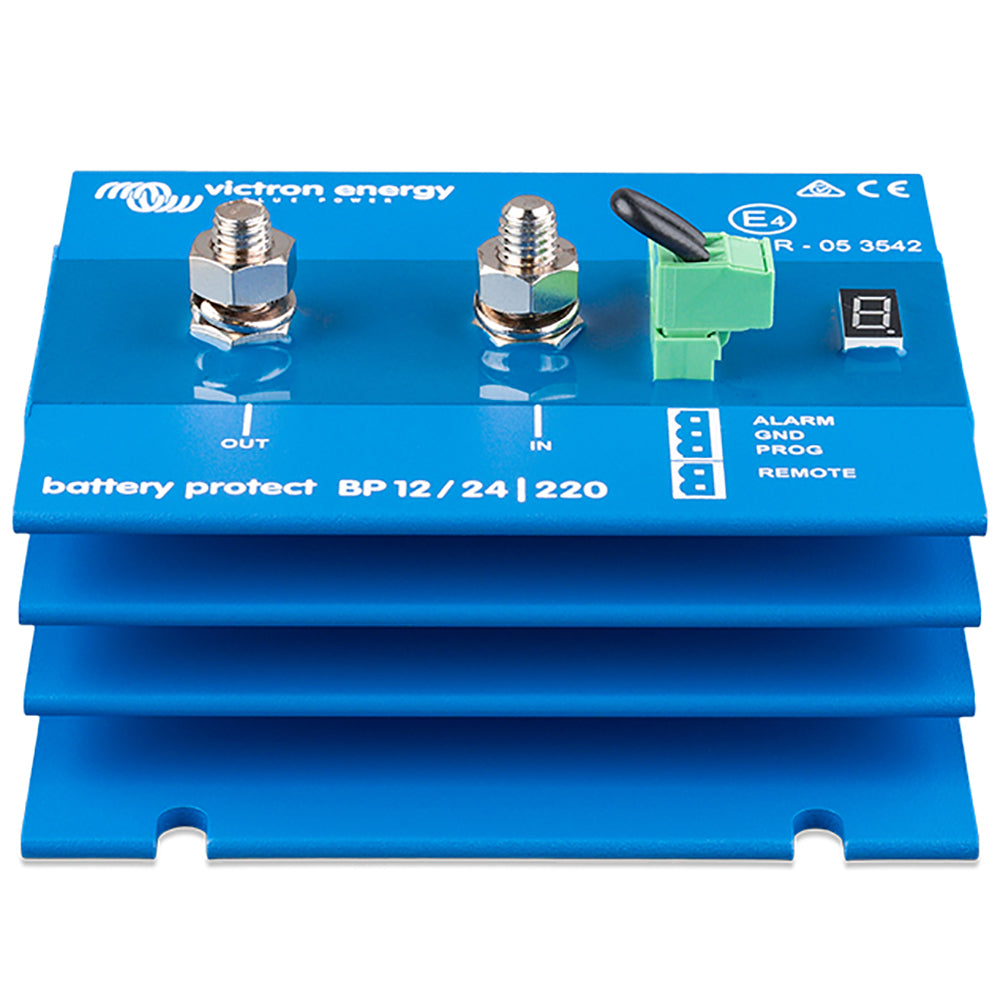

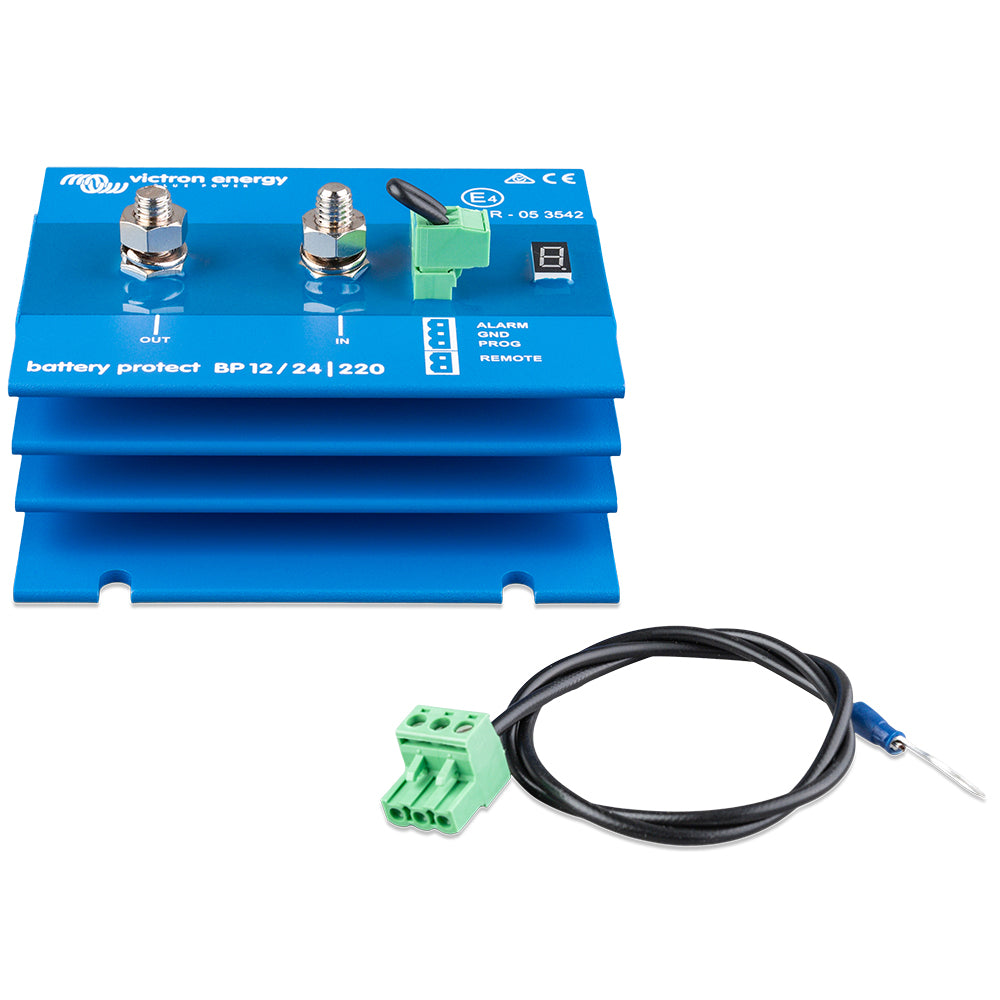

Victron BatteryProtect BP-220 - 220AMP - 6-35 VDC

Victron BatteryProtect BP-220 offers superior battery protection tailored for marine and automotive applications. This essential device disconnects your battery from non-essential loads to prevent total discharge, ensuring longevity and reliability.

Key Features:

• 12/24V Auto Ranging: Automatically detects system voltage for seamless operation.
• Easy Programming: Set the engage/disengage voltage levels with a simple seven-segment display.
• Ultra Low Current Consumption: Ideal for Li-ion batteries, maintaining efficiency even after shutdown.

Ideal for boaters, RV enthusiasts, and emergency vehicles, this product is supported by Victron's commitment to quality, ensuring you get the best performance and peace of mind.

Experience the reliability of Victron BatteryProtect BP-220 and safeguard your batteries today!

BatteryProtect BP-220 - 220AMP - 6-35 VDC

Features:

• The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.
• 12/24V auto ranging The BatteryProtect automatically detects system voltage
• Programming made easy The BatteryProtect can be set to engage / disengage at several different voltages. The seven segment display will indicate which setting has been chosen.
• A special setting for Li-ion batteries In this mode the BatteryProtect can be controlled by the VE.Bus BMS. Note: the BatteryProtect can also be used as a charge interrupter in between a battery charger and a Li-ion battery. See connection diagram in the manual.
• Ultra low current consumption This is important in case of Li-ion batteries, especially after low voltage shutdown. Please see our Li-ion battery datasheet and the VE.Bus BMS manual for more information.
• Over voltage protection To prevent damage to sensitive loads due to over voltage, the load is disconnected whenever the DC voltage exceeds 16V respectively 32V.
• Ignition proof No relays but MOSFET switches, and therefore no sparks.
• Delayed alarm output The alarm output is activated if the battery voltage drops below the preset disconnect level during more than 12 seconds. Starting the engine will therefore not activate the alarm. The alarm output is a short circuit proof open collector output to the negative (minus) rail, max. current 50 mA. The alarm output is typically used to activate a buzzer, LED or relay. Delayed load disconnect and delayed reconnect The load will be disconnected 90 seconds after the alarm has been activated. If the battery voltage increases again to the connect threshold within this time period (after the engine has been started for example), the load will not be disconnected. The load will be reconnected 30 seconds after the battery voltage has increased to more than the preset reconnect voltage.
