Veratron Deep-Pipe Level Sender - 500mm - 0 to 180 OHM
Veratron Deep-Pipe Level Sender offers precise liquid level monitoring tailored for fuel tanks and various liquid applications. This advanced deep-pipe level sensor is designed to provide reliable measurements, ensuring optimal tank performance in marine environments.
Key Features:
- Durable Tubular Sensor: Constructed from high-quality stainless steel for longevity and resistance to harsh conditions.
- Versatile Compatibility: Suitable for fuel types including oil, petroleum, diesel, gasoline, and even water.
- Stable Float Mechanism: The unique design with small baffles minimizes fuel sloshing, keeping the float position accurate regardless of sea state.
Ideal for marine, automotive, and industrial applications, this product is supported by a robust IP67 protection rating and a compensation chamber to ensure quality and satisfaction. Don’t compromise on performance; invest in the Veratron Deep-Pipe Level Sender today!
Deep-Pipe Level Sender - 500mm - 0 to 180 OHM

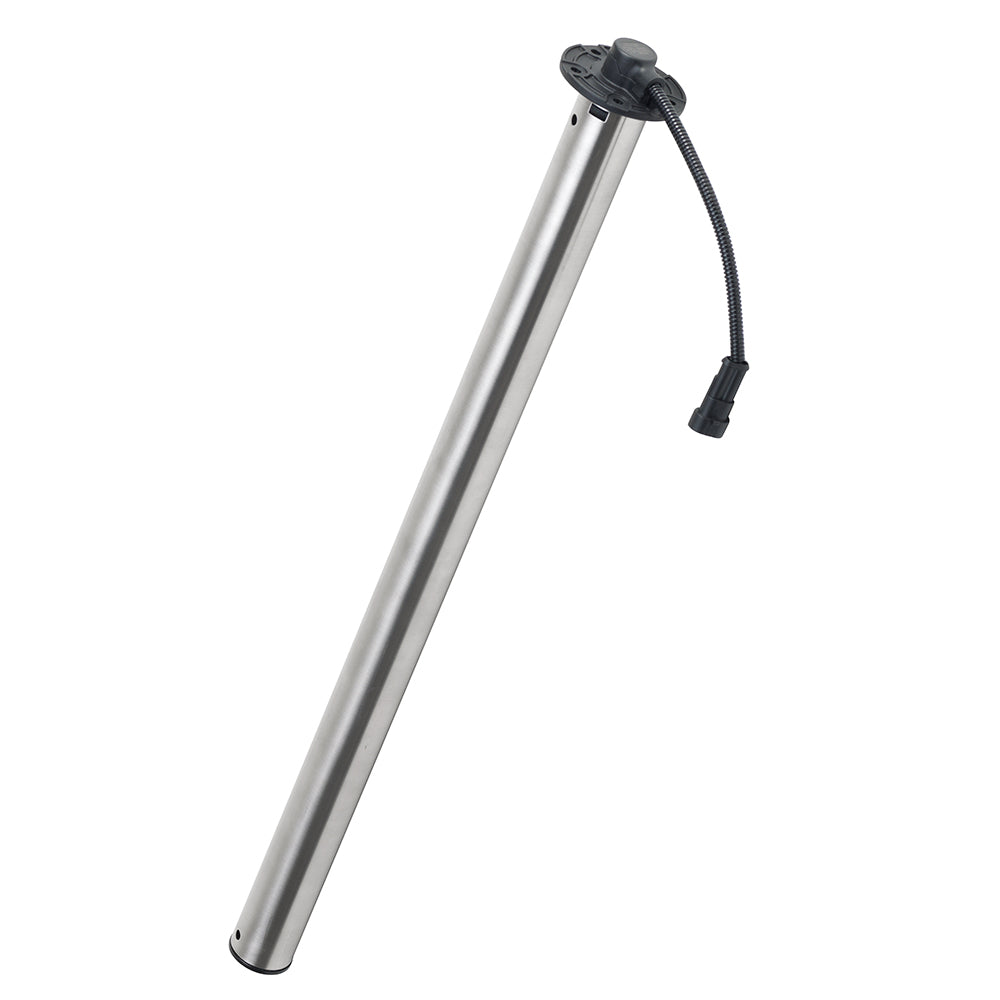

Deep-Pipe Level Sensor is ideal for usage in fuel tanks. Its 38 mm diameter vertical tube contains a float inside, which measures a level of the liquid. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state.
Sensors are made in various lengths starting at 150 mm increasing to 1200 mm – please ensure that the length chosen is at least 4 mm from the base of the fuel tank once fitted.
Features:
- Tubular Sensor Stainless Steel
- Suitable for Fuel (Oi -Petroleum-Diesel-Gasoline) and Water
- Length: 500 mm
Technical Specifications:
- TE Superseal Connector 2-Pole IP67
- Operating Temp.: -25°C to 65°C or -13°F to 149°F
- Operating Voltage: 6 to 24 VDC
- Compensation chamber
- Flange: 5-Hole SAE Flange 54mm PA66 GF30
- Wiring harness with length of 200 mm
- Signal ranges: 0 to 180 OHM
- IP67 protection rating
- Communication: Analog
In the Box:
- Deep-Pipe Level Sensor
- Installation Kit
- Safety Instructions
- Installation Instructions
*Sold as an Individual
