VDO Reed Switch Fuel Sender - 180mm
-
Estimated Delivery:Oct 16 - Oct 20
-
Free Shipping: On all orders over $150
Guarantee safe & secure checkout

VDO Reed Switch Fuel Sender - 180mm
Stories
Stories
Stories
VDO Reed Switch Fuel Sender - 180mm
VDO Reed Switch Fuel Sender - 180mm by VDO offers a revolutionary solution for accurate fuel measurements tailored for marine and automotive applications where space is a concern.
Key Features:
- Stainless Steel Construction: Ensures durability and resistance to corrosion, making it perfect for harsh environments.
- Ethanol Resistant Viton Gasket: Designed to withstand the effects of fuel additives, enhancing longevity.
- 240-33 Ohm Range: Compatible with most standard marine fuel gauges, providing reliable readings.

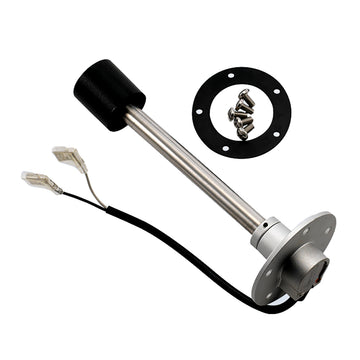

Ideal for tight spaces and unconventional fuel tanks, this product is supported by a standard 5 hole mounting flange and includes a neoprene gasket and mounting hardware, ensuring ease of installation and reliability.
Experience top-notch performance with the VDO Reed Switch Fuel Sender—your solution for accurate and consistent fuel level readings without the hassle of traditional float mechanisms. Upgrade your fuel monitoring today!

Reed Switch Fuel Sender - 180mm
Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.
The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.
Features:
- Stainless steel construction
- Ethanol resistant Viton gasket
- 240-33 Ohm range
- Fits tanks with a depth of 7.2" (180mm)
- Insulated 1/4"" spade connectors
- Standard 5 hole mounting flange
- Works with most standard marine fuel gauges
- Ground - Floating
- Connection - Insulated .25" Spade
*Sold as an Individual
