Uflex Aluminum Inboard Cylinder - 1.25 Inch Bore, 7 Inch Stroke

Experience unparalleled performance and reliability with the Uflex Aluminum Inboard Cylinder. Designed specifically for steering systems, this hydraulic cylinder features a 1.25-inch bore and a 7-inch stroke, ensuring smooth and efficient steering control for your vessel. Uflex USA is renowned for its high-quality marine products, and this inboard cylinder is no exception, providing durability and precision that boaters trust.

Key Features

• Premium Aluminum Construction: Crafted from corrosion-resistant aluminum, this cylinder is built to withstand harsh marine environments.
• Optimal Bore and Stroke: With a 1.25-inch bore and 7-inch stroke, it delivers responsive and effective steering for enhanced maneuverability.
• Hydraulic Efficiency: Works seamlessly with your existing hydraulic steering system, enabling smooth transitions when steering your boat.
• Easy Installation: Engineered for straightforward setup, allowing you to quickly upgrade your vessel's performance.

Benefits of Choosing Uflex

When it comes to steering systems, the Uflex Aluminum Inboard Cylinder stands out for its combination of quality and performance. Unlike standard cylinders, this model offers:

• Enhanced Longevity: Its durable construction ensures reliability over time, reducing the need for frequent replacements.
• Smooth Operation: The precise engineering allows for effortless steering, crucial for navigating challenging waters.
• Increased Safety: Reliable steering enhances safety on the water, giving you peace of mind during your voyages.

Upgrade your boat's steering system with the Uflex Aluminum Inboard Cylinder today and enjoy a new level of performance and control on the water. Don't wait—enhance your boating experience now!

Aluminum Inboard Cylinder - 1.25" Bore & 7" Stroke

A hydraulic steering system consists of a steering pump, a cylinder tied to the rudder or the outboard or sterndrive engine, and the connecting hoses. Under normal operating conditions, a steering wheel turn will pump the oil, which flows in through the hoses to the cylinder, according to the turn direction.

With the consequent cylinder movement, the oil will flow to the pump through the hoses and, at the same time, move the engine or the helm, which are connected to the cylinder. The pumps, equipped with a valve that prevents outgoing fluid from returning along the same hose, allow the operation of the steering systems with two or more steering stations. The cylinders are double-acting and may be balanced or unbalanced. This particular cylinder is a balanced cylinder with the same number of steering wheel turns to move the helm from the center to the end stroke in two opposite directions. A well-balanced steering system needs the correct choice of pump for the cylinder.

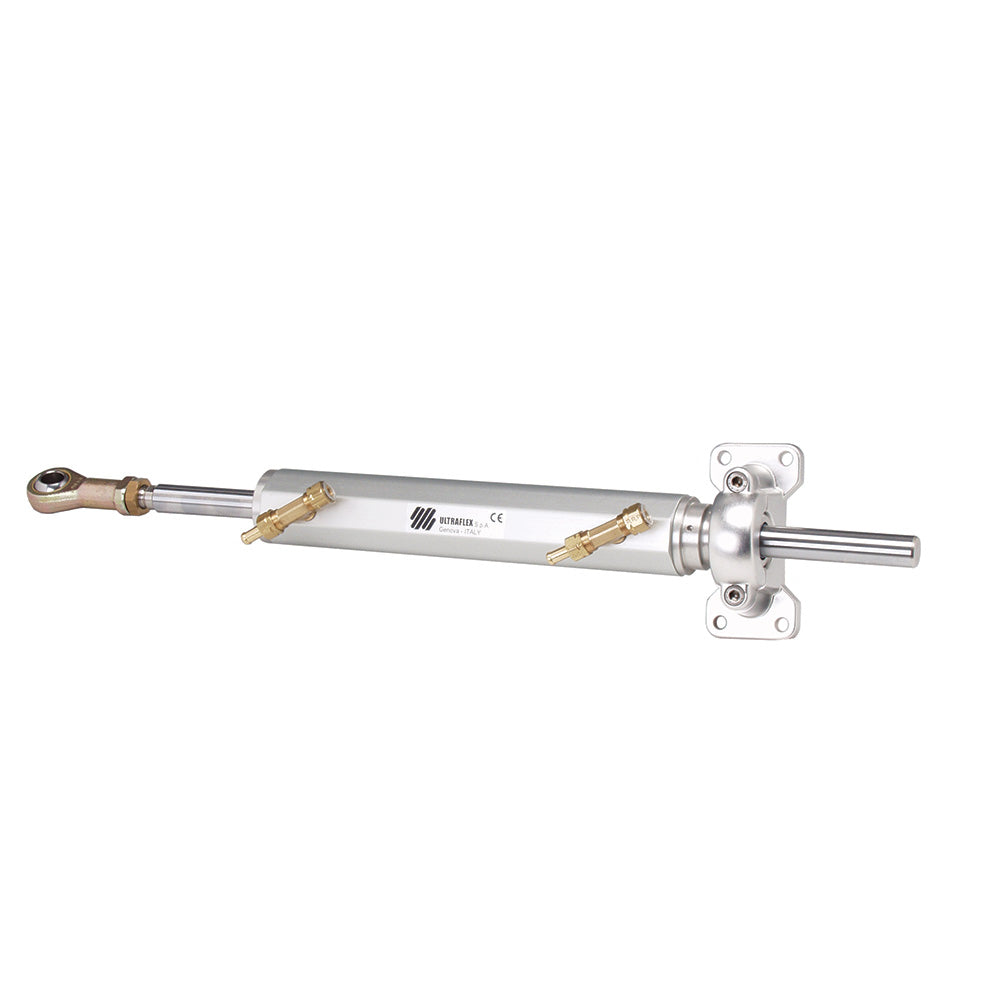

This hydraulic cylinder for the inboard engine UC 116-I has been designed and manufactured to be used as a component in the hydraulic steering systems. The cylinder with a mobile rod is installed directly to the arm of the helm through the proper ball joint on the end part of the cylinder. On the opposite side, it is fixed directly to the boat through a support with the plate.

Features:

• Balanced (the number of turns lock-to-lock is equal to port to starboard or vice versa)

Specifications:

• Volume: 116 cc - 7 cu.in
• Torque: 58 kg (5043 lbs.)
• Output Force: 464 kg (1023 lbs)
