Trident Marine 5/16 Inch A1-15 Reel Low Permeation Fuel Line Hose

Introducing the Trident Marine 5/16 Inch A1-15 Reel Low Permeation Fuel Line Hose, the ultimate solution for your fuel systems on boats and marine vehicles. Designed specifically for boat outfitting, this top-quality fuel hose is perfect for transferring gasoline (including ethanol blends up to 85%) and diesel (including biodiesel blends up to B100). Sold by the foot, you can order just the right length for your needs.

Crafted with a barrier-lined A1-15 formulation, this fuel line hose offers unmatched durability and resistance against fuel, fire, and aging. Whether you're a seasoned mariner or a weekend boating enthusiast, you can rely on Trident Marine's commitment to quality and performance.

Key Features:

• Low Permeation: Designed to minimize fuel vapor emissions, ensuring efficiency and environmental compliance.
• Versatile Use: Suitable for both gasoline and diesel applications, making it a flexible choice for various fuel systems.
• Durable Construction: Built to withstand the harsh marine environment, ensuring long-lasting performance.
• Easy to Install: Flexible and user-friendly design allows for straightforward installation on your boat.

The Trident Marine 5/16 Inch A1-15 Fuel Line Hose is not just a standard fuel hose; it’s a reliable companion for your marine adventures. Upgrade your fuel systems with a product that stands out in the market for its superior quality and advanced features.

Don’t compromise on safety and performance. Order your Trident Marine fuel hose today and experience the difference for yourself!

5/16" A1-15 Reel Low Permeation Fuel Line Hose - Black - Sold by the Foot

Trident Barrier Lined A1-15 Fuel Hose for both gasoline (including ethanol blends up to 85%) and diesel (including bio diesel blends up to B100). This hose is built with the best fuel, fire, and age-resistant formulation and a unique "Barrier Liner" on the inside surface of the tube, so the fuel is not in direct contact with rubber.

Features:

• Sold by the foot
• Provides extraordinary resistance to fuel permeation, aging, and also to fire, heat, cold, and the ozone
• Also provides excellent bend-ability
• NMMA Type Accepted & CE certified

Application:

• Marine Fuel Hose for distribution, return, vent and transfer
• For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel

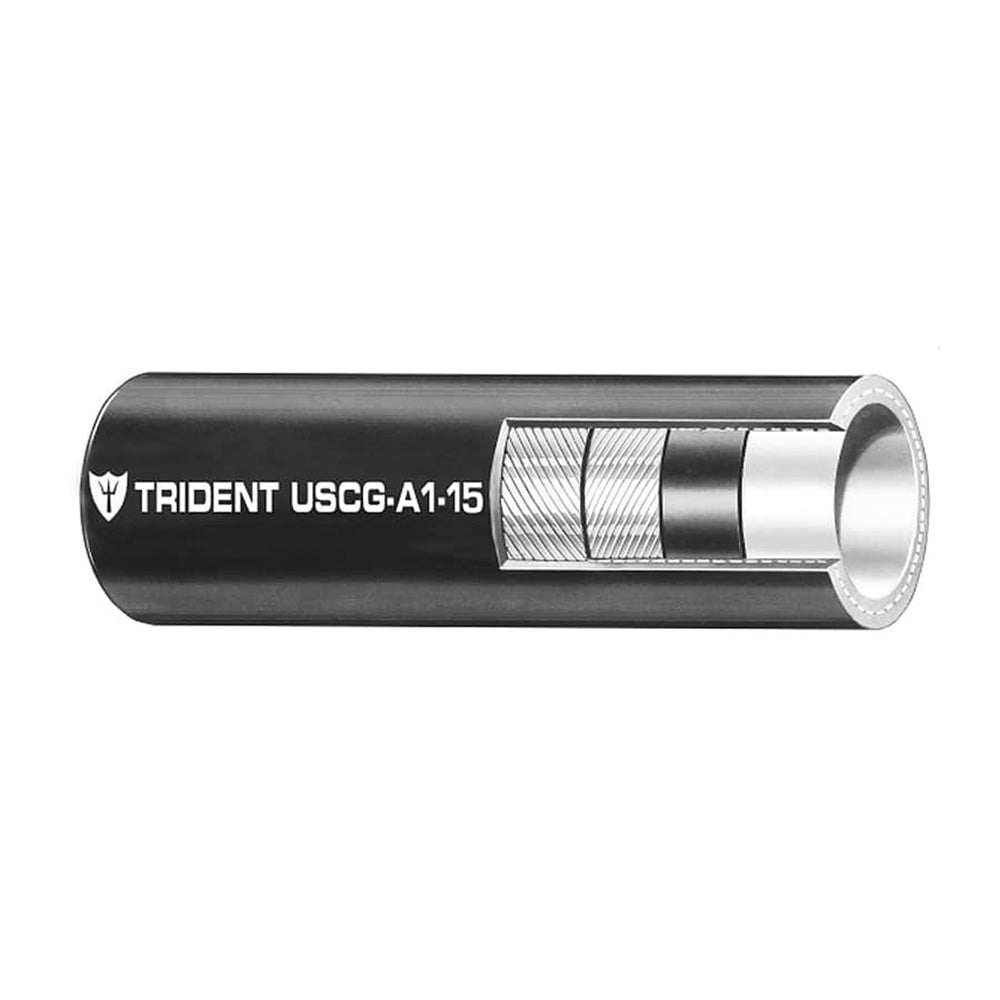

Construction:

• Tube: Nylon Internal Barrier, NBR
• Cover: NBR/PVC Blend
• Reinforcement: Polyester 2 spiral
• Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
• Length: 250 ft. reel (sold by the foot)

Specifications:

• Inner Diameter: (inch) 5/16" / (mm) 7.92
• Outer Diameter: (inch) 0.611 / (mm) 15.5
• Burst Pressure: (psi) 400 / (mpa) 2.76
• Working Pressure: (psi) 100 / (mpa) 0.69
• Bend Radius: (inch) 1.75" / (mm) 44.5
• Weight: (lb/100 ft.) 13.3 / (kg/m) 0.198
• Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)

*The #365 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10
