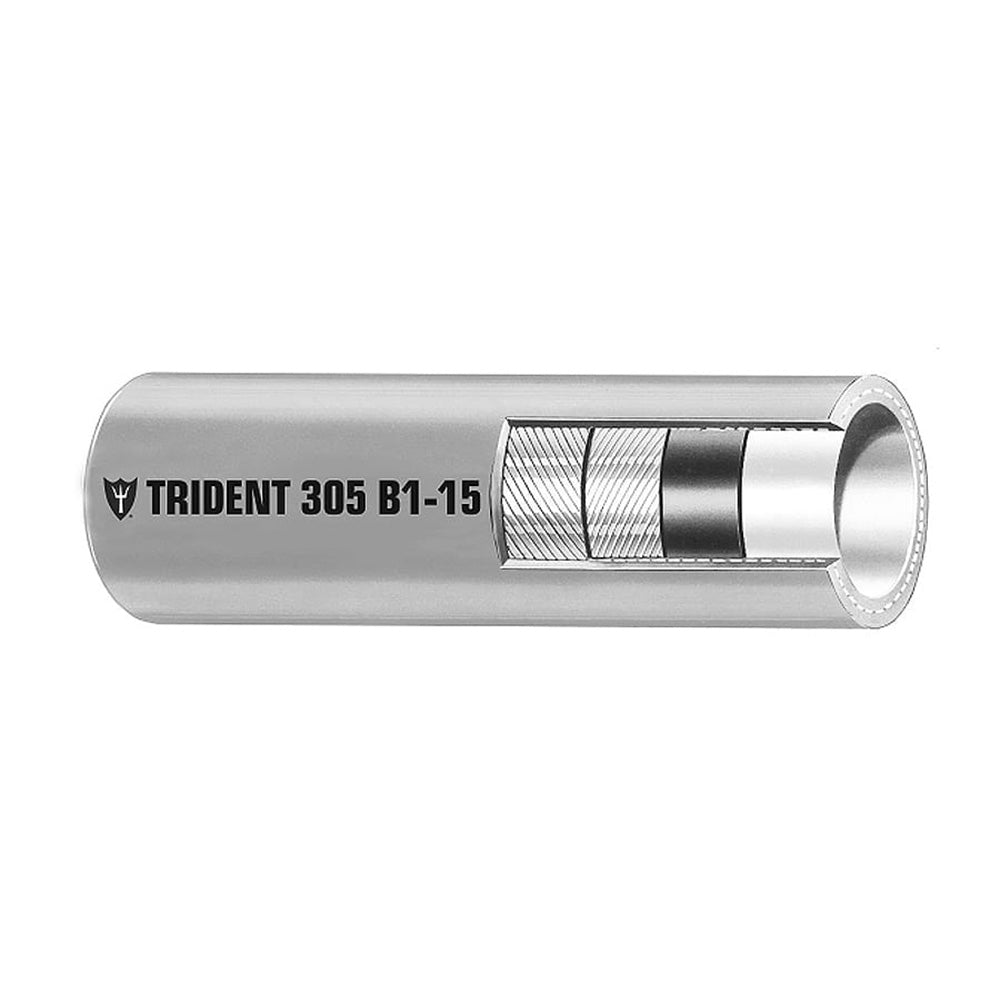

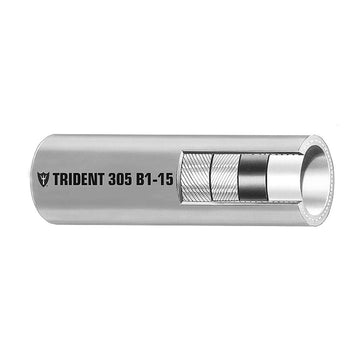

Trident Marine 3/8 Inch x 50 Feet Boxed Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - Gray

Introducing the Trident Marine 3/8 Inch x 50 Feet Boxed Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose in a sleek gray finish. Engineered for boat outfitting, this fuel hose is a top choice for efficient and reliable fuel systems. Its unique barrier liner technology ensures that your fuel is never in direct contact with rubber, significantly reducing fuel permeation.

This high-quality hose is built with the best fuel and age-resistant formulations, making it perfect for long-term use in harsh marine environments. With a robust construction, it meets stringent EPA compliance standards, ensuring that you are not only getting a durable product but also one that is environmentally friendly.

• Dimensions: 3/8 inch diameter, 50 feet in length
• Type: B1-15 Barrier Lined Hose
• Color: Gray

Key features of the Trident Marine fuel line hose include:

• Fuel Resistance: Designed to withstand various fuel types without degrading.
• Age-Resistant: Built to last, even in challenging environments.
• Easy Installation: Flexible design allows for straightforward fitting and setup.

Whether you are outfitting a new boat or upgrading your existing fuel systems, the Trident Marine fuel line hose stands out for its superior performance and reliability. Don’t compromise on quality; choose a hose that’s engineered for excellence.

Ready to improve your boating experience? Get the Trident Marine 3/8 Inch x 50 Feet Boxed Barrier Lined Fuel Hose today!

3/8" x 50' Boxed Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - Gray

This hose is built with the best fuel and age-resistant formulations and a unique "Barrier Liner" on the inside surface of the tube, so the fuel is not in direct contact with rubber. This greatly reduces fuel permeation and prevents ethanol degradation of the rubber tube, which can cause small pieces of rubber to reach and damage the engine. That is particularly important considering the prospect of higher ethanol blends (E-15) available at gas stations next year.

Features:

• Provides extraordinary resistance to fuel permeation, aging, heat, cold, and ozone
• Also, provides excellent rope-like bend-ability and fitting retention
• For both gasoline (including ethanol blends up to E85) and diesel (including bio diesel blends up to 100%)
• EPA Certified and CARB Executive Order for low permeation Type B1-15
• NMMA Type Accepted & CE certified

Application:

• Marine Fuel Hose for distribution, return, vent and transfer
• For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel

Construction:

• Tube: Fluoroplastic Internal Barrier
• Cover: Gray CPE Rubber
• Reinforcement: 2-Spiral Polyester Plies
• Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
• Length: 50’ (15m) Boxed

Specifications:

• Inner Diameter: (inch) 3/8" / (mm) 9.50
• Outer Diameter: (inch) 0.588 / (mm) 14.9
• Burst Pressure: (psi) 175 / (mpa) 1.21
• Working Pressure: (psi) 35 / (mpa) 0.24
• Bend Radius: (inch) 4" / (mm) 101.6
• Weight: (lb/100 ft.) 10.5 / (kg/m) 0.156
• Permeation Rate (Standard is (15g/m^2/24hrs (CE10)): 5.0

*The #305 series exceeds ABYC H-24, SAE J1527, ISO 8469 B1, USCG Type B1-15
