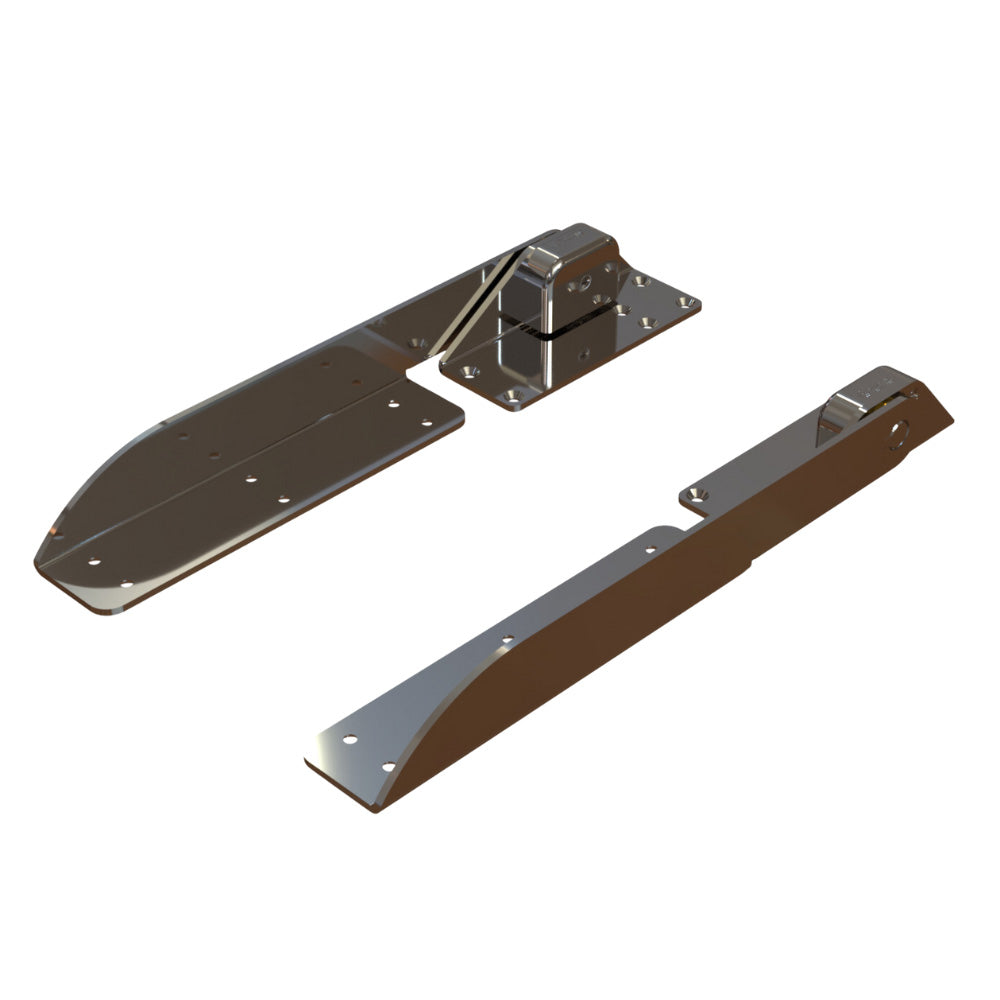

Taco Command Ratchet Hinge 18-1/2" – 316 Stainless Steel with Hard Stop

Introducing the Taco Command Ratchet Hinge, an 18-1/2" long, heavy-duty hinge crafted from polished 316 stainless steel. Building on the popularity of the H25-0023 model, this hinge delivers a robust hard stop at 105° for precise and repeatable movement.

Designed for longer seat backs up to 22 inches, this extended specialty hinge provides reliable support and controlled motion where you need it most.

Key features include a durable ratchet mechanism and a secure locking feature to hold positions as required, making it ideal for demanding seating and cabinetry applications.

• Length: 18-1/2 inches
• Material: 316 stainless steel with a polished finish
• Hard stop: 105 degrees
• Seat-back compatibility: suitable for up to 22 inches
• Locking: one locking mechanism for secure positioning

Command Ratchet Hinge - 18-1/2" - 316 Stainless Steel Polished with Hard Stop

Building upon the popularity of the H25-0023 heavy-duty Command Ratchet Hinge, this 18-1/2" hinge features a hard stop at 105º and is ideal for longer seat backs up to 22". This extended specialty hinge features one locking position at 62.5º and is perfect for sun pads, bolsters, and lounge backrests.

Features & Benefits:

• Single- or double-seat capacity
• Can be used for seat backs up to 22" long
• Compatible with cushions up to 4" thick
• Mounts above the deck

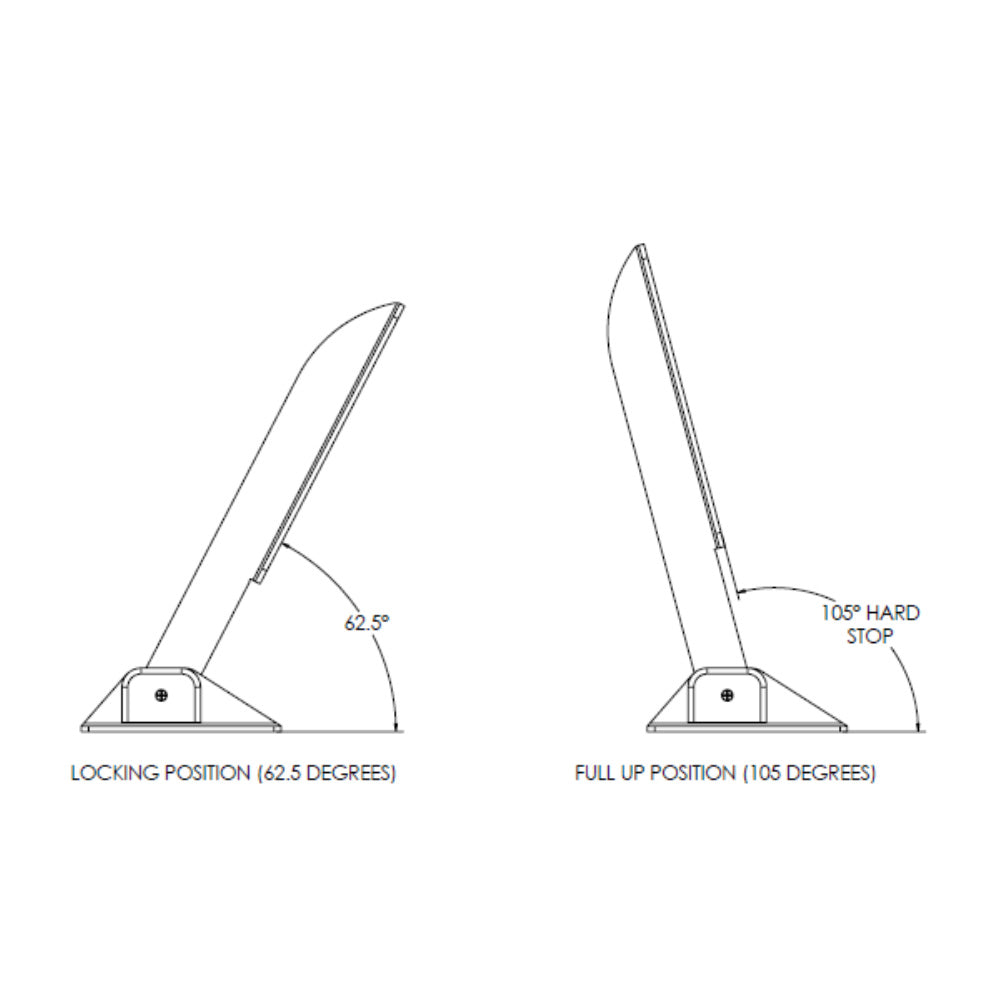

• One locking position at 62.5º
• Hard stop at 105°
• Polished Type-304 stainless steel
• Meets ABYC H-31 standards class B* application, 500 ft-lb. of torque load for a pair
• 500-hour salt fog test
• Sold in pairs

Specifications:

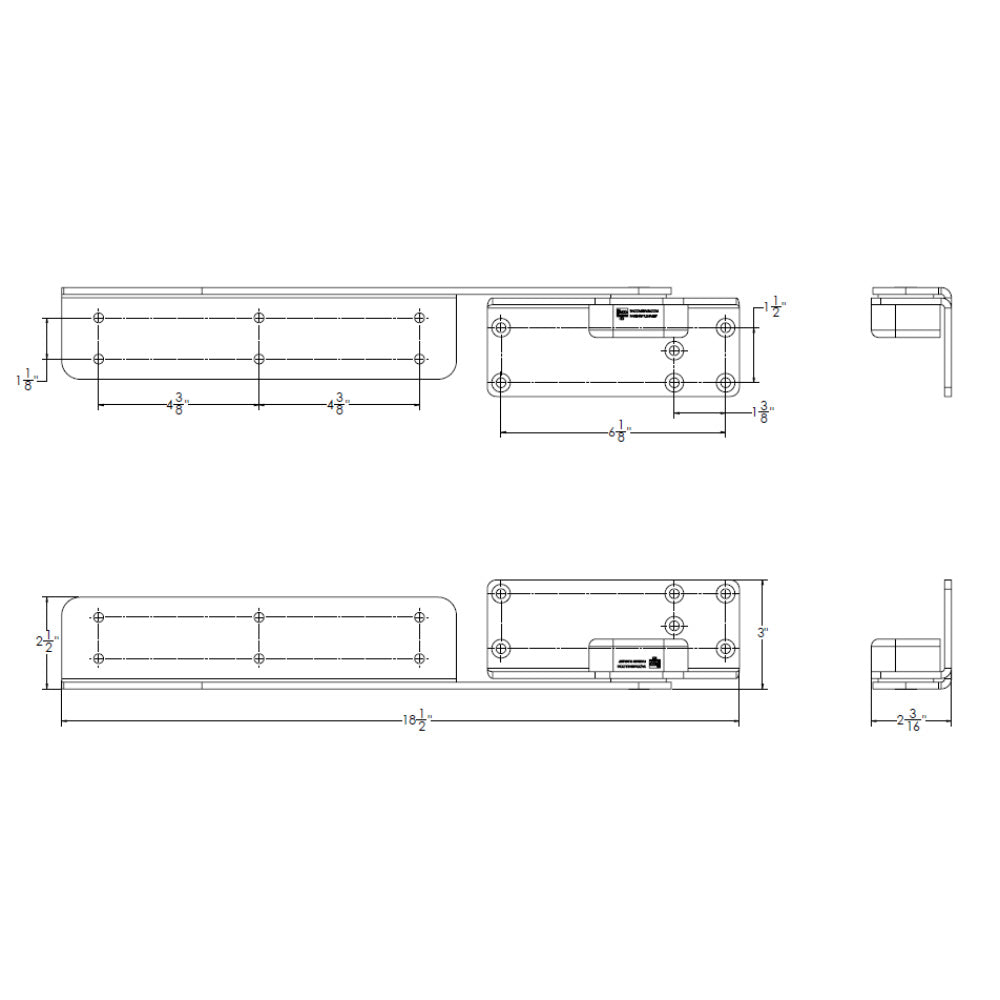

• Length: 18-1/2"
• Width: 3"
• 5-year limited warranty
