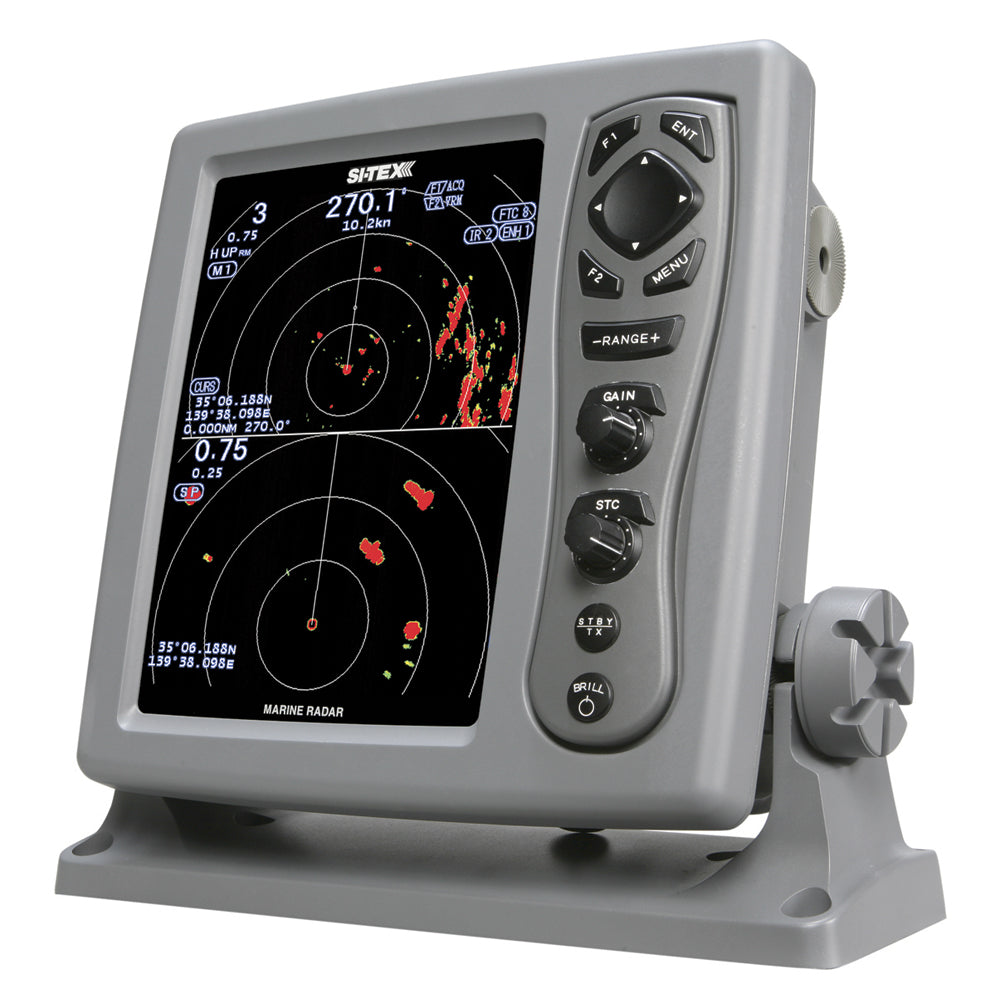

SI-TEX 8.5" Color LCD Radar with 4kW Output

SI-TEX's 8.5" Color LCD Radar offers exceptional target detection tailored for serious mariners and boating enthusiasts. Designed to improve navigation and safety, this radar features a 1/16-36nm range and a powerful 4kW output, ideal for both coastal and offshore use.

Key Features:

• Brilliant Display: The 8.4" TFT color LCD with 480 x 640 pixels provides a daylight-viewable screen, ensuring clear visibility in all conditions.
• Advanced Target Tracking: Dual Range Radar function allows simultaneous monitoring of short and long-range targets, enhancing your situational awareness.
• Superior Processing Technology: Equipped with Hyper-Digital Processing™ (HDP) for real-time presentations and refined target discrimination, making it easier to identify smaller vessels and objects.

Ideal for professional sailors and recreational boaters, this radar unit is supported by a reliable waterproof design (IPX5 rating) and easy installation features, ensuring quality and satisfaction in any maritime environment.

Upgrade your navigational capabilities today with the SI-TEX 8.5" Color LCD Radar. Experience safety and clarity on the water like never before!

8.5" Color LCD Radar with 4kW Output - 1/16-36nm Range - 25" Radome

SI-TEX's T-941 Radars feature sophisticated Hyper-Digital Processing™ (HDP) Technology for real-time presentation and superior target discrimination.

Features:

• It virtually eliminates unwanted noise to provide a clearer detailed image of targets and enhances the detection of smaller targets
• Radome: 4kW, 36NM, 25" Display
  • Brilliant 8.4" color LCD daylight viewable display
  • 480 x 640-pixel resolution and anti-reflective glare coating for outstanding viewing
  • True-color radar feature displays echoes in different colors depending on signal strength
  • The real-time presentation offers smooth movement as bearing changes
  • The T-941 has two-speed antenna rotation for tracking of quick-moving, close-in targets:
    • 48 RPM
    • 24 RPM (Requires 24 Volt DC input)
  • Selectable range scales from 1/16 NM
  • Warning Zone alerts you to "incoming" and "departing" targets breaking your preset guard zone
  • Automatic hands-off tuning maintains maximum sensitivity at all times with manual override for the experienced use
  • RGB output for connecting (2) optional external monitors
  • Easy access to all system functions with simply arranged keypad, programmable function keys, comprehensive menus and dedicated rotary knobs for instant control of Gain and STC
  • Built-in flush mounting system makes installation easy
  • All this advanced radar technology is housed in a sleek, waterproof (IPX5 rating) case design that can be mounted almost anywhere
  • Dual Range Radar function lets you view split-screen displays of both long and short-range targets simultaneously
    • Monitor a nearby buoy and a far off island at the same time
  • True Trail function clearly identifies moving targets from stationary targets
  • The display shows the exact movement of other vessels like drawing tails, while land and buoys are shown as stationary objects even while your vessel is moving
  • Accepts CCD camera input, to display split-screen Radar and Camera
    • Allows you to monitor important areas of your vessel while shill keeping watch of your surroundings
  • Optional ATA (Automatic Tracking Aid) allows you to tracks up to 50 user designated targets
  • Designate the target and the radar will automatically provide the target distance, speed, bearing, course, and closest point of approach on all user targets selected.
  • Optional AIS interface displays information on up to (100) AIS targets including the vessel's MMSI number, name, course, and speed of each vessel with an AIS transmitter
    • This information is sent continuously and is useful in navigating, traffic monitoring, and collision prevention

Specifications:

Antenna Unit:

• Scanner 25" Radome
• Peak Power Output 4kW
• Output Frequency 9410 + 30MHz
• Beam Width:
• Horizontal 3.9°
• Vertical 25°
• Rotation 24 or 48 rpm (48 rpm; 24V DC or more
• Pulse Width .08, 0.15, 0.3, 0.5, 1 use
• IF Frequency 60 MHz
• Range Accuracy Better than 8m
• Min. Detecting Distance: Within 25m

Display Unit:

• Display Size/Type 8.4" TFT Color LCD (480 x 640 pixels)
• Off Centering Max 66%
• Display Modes Heads up, North up*, Course up* WPT up**, True motion*
• Indication System PPI, PPI/PPI, PPI/NAV
• Range Scales NM 1/16, 1/8, 1/4, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 7, 12, 16, 24, 32, 48 (T -- PNEW to 24,T -- 941 to 32, T -- 940 to 48)
• Range Rings NM 1/32, 1/16, 1/8, 1/4, 1/2, 3/4, 1/1.5, 2, 3, 4, 6, 8 12
• Bearing Accuracy Better than + 1°
• Video Level 8 colors
• Distant Unit (VRM unit) NM, SM, KM
• Alarms Entry or Breakaway (In and Out)
• Other Functions Interference rejection, Target expansion, VRM, EBL, Parallel index, Course position (Lat/Lon), Bearing (true/relative), Trail*, RGB Monitor output, Slave display monitor input/output, External buzzer. Accepts CCD camera input
• AIS Interface Option (100 targets)
• ATA Option (Auto/Manual, 50 targets)
• Input Data Format BEC, BWC, BWR, DPT, DBT, GGA, GLL, GNS, HDG, HDM, HDT, MTW, MWD, MWV, RMA, RMB, RMC, VHW, VTG, XTE
• Output Data Format TTM, TLL
• Power Requirements 10.8 - 31.2 Volt DC
• Power Consumption 55 Watt
• Water Protection
  • Display: IPX 5
  • Antenna CFR 46 IPX

What's In The Box?

• Display Unit MRD-103 with hardcover
• Connecting Cable 242J158055A -10 M with 2 connectors
• DC Power Cable CW265-2M 2m
• CCD Camera Cable CW-405-0.3M
• Operation manual, Quick reference
• Fuse (8A)
