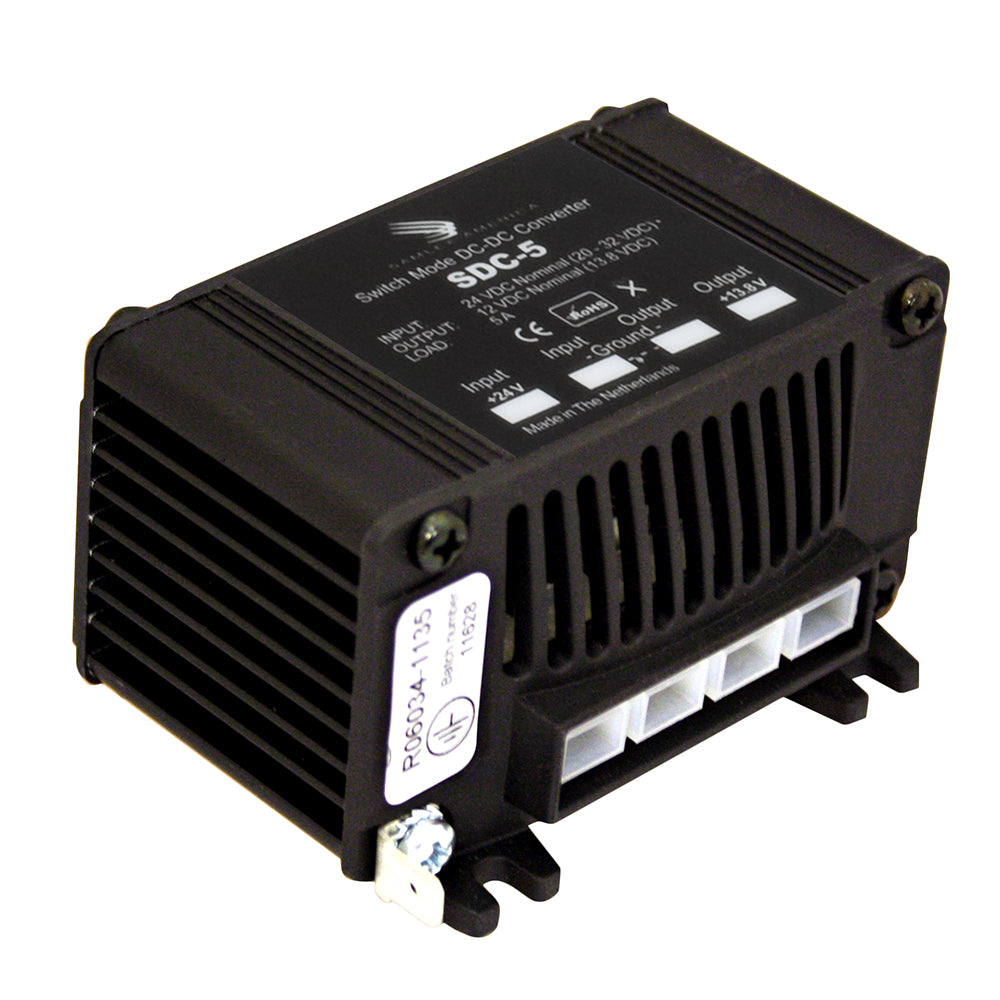

Samlex 5A Non-Isolated Step-Down 24VDC-12VDC Converter

Samlex 5A Non-Isolated Step-Down 24VDC-12VDC Converter offers exceptional efficiency and reliable performance tailored for heavy-duty applications such as earth-moving equipment, heavy trucks, buses, and marine vehicles.

Key Features:

• Advanced switch-mode design: Ensures high efficiency by converting 24 VDC to a regulated 12 VDC output.
• Compact and lightweight: With dimensions of 3.5 x 2.75 x 1.75 inches (8.9 x 7 x 4.4 cm) and weighing only 0.4 lbs (0.18 kg), it can fit into various spaces.
• Robust protection mechanisms: Features like overvoltage protection, short circuit protection, and reverse polarity protection enhance safety and reliability.

Ideal for use in marine vehicles and 12 Volt lighting systems, this product is supported by a 2-Year Limited Warranty, ensuring quality and satisfaction with every use.

5A Non-Isolated Step-Down 24VDC-12VDC Converter

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 20 Amps. The SDC-23 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-23 DC-DC converter is designed for heavy duty applications.

Features:

• Advanced switchmode design
• Mount in almost any location
• Compact and light weight
• Reverse polarity protection
• High efficiency
• Cycle by cycle current limiting circuit
• Overvoltage protection
• Short circuit protection

Specifications:

• Input: 20-32 VDC
• Output: 13.8 VDC
• Amps: 5 Amps
• Weight: 0.4 (lbs)
• Weight: 0.18 (kg)
• Dimensions: 3.5 x 2.75 x 1.75 (in)
• Dimensions: 8.9 x 7 x 4.4 (cm)
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems
