Samlex 50A Battery Charger - 12V - 2-Bank - 3-Stage

Samlex 50A Battery Charger by Samlex America offers efficient and reliable charging tailored for automotive, marine, and recreational vehicle applications. This advanced charger is designed for all types of 12 Volt lead-acid batteries, including Flooded, AGM, and Gel Cell.

Key Features:

• Three-Stage Charging: Ensures rapid and safe charging, prolonging battery life and performance.
• DIP Switch Configuration: Switch between two-stage and three-stage algorithms for flexibility in charging needs.
• Dual Bank Capability: Charge up to two separate battery banks simultaneously without the need for isolators.

Ideal for automotive and marine enthusiasts, this product is supported by a 2-Year Limited Warranty, ensuring quality and satisfaction in every charge. With its built-in protections against short circuits, overloads, and temperature extremes, the Samlex 50A Battery Charger stands out in the battery charging category.

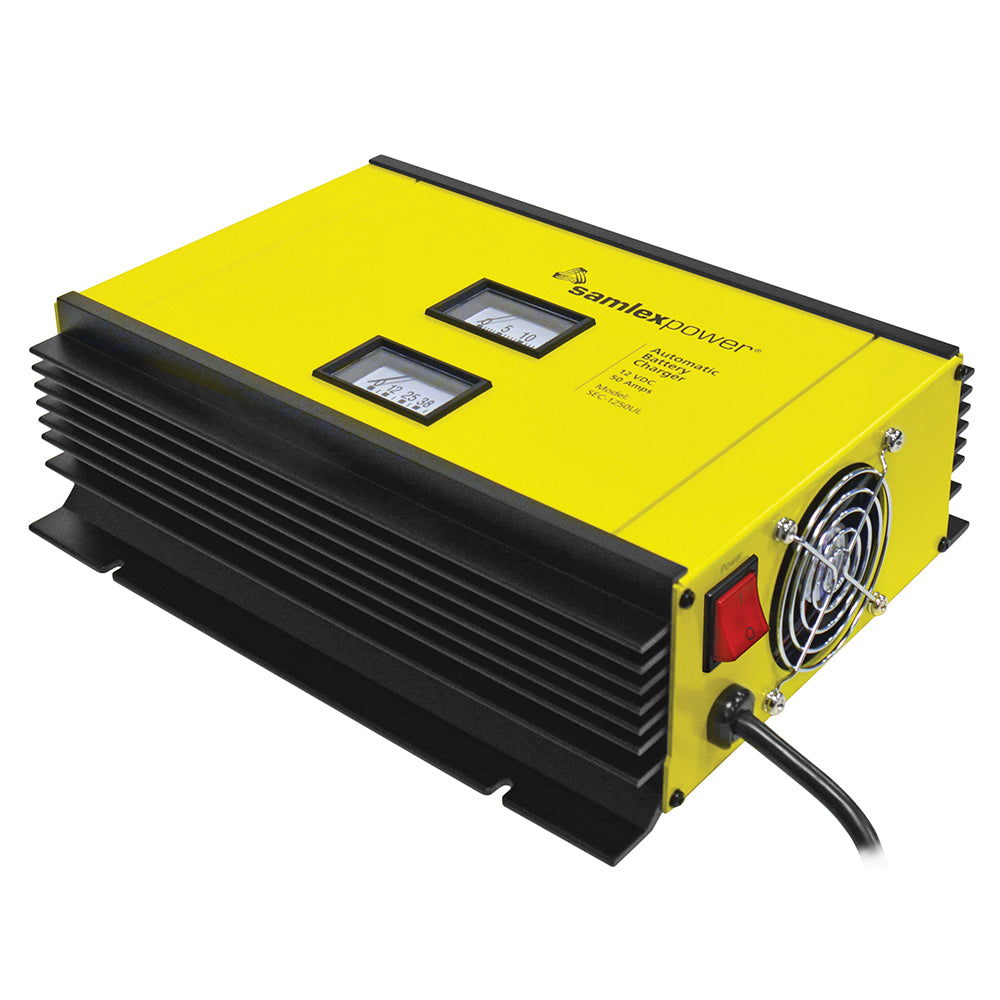

50A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor

This advanced fully automatic three-stage 50 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks.

Features:

• Switch mode technology for high efficiency, lightweight and quiet operation
• Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell
• Can charge 2 banks of batteries simultaneously, no isolator necessary
• Can be used as a power supply or DC UPS when used in conjunction with a battery
• User Configurable AC Input voltage 120 or 230 VAC, 50 / 60 Hz
• User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of stand-alone and loaded Lead Acid Batteries
• “Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries
• Voltmeter and Ammeter for monitoring
• Fan cooled based on output current
• Protections: Short circuit, overload, reverse battery connection and over temperature
• Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively

Specifications:

• Input: 120 VAC 60 Hz or 230 VAC 50 Hz
• Output: 12 VDC
• Amps: 50
• Remote Control: 900-RC
• Weight: 9.0 (lbs)
• Weight: 4.1 (kg)
• Dimensions: 13.03 x 9.60 x 3.82 (in)
• Dimensions: 331 x 244 x 97 (mm)
• Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
• Warranty: 2 Year Limited

Applications:

• Automotive
• Recreational vehicles
• Marine
• Communications sites
• Battery back-up systems
