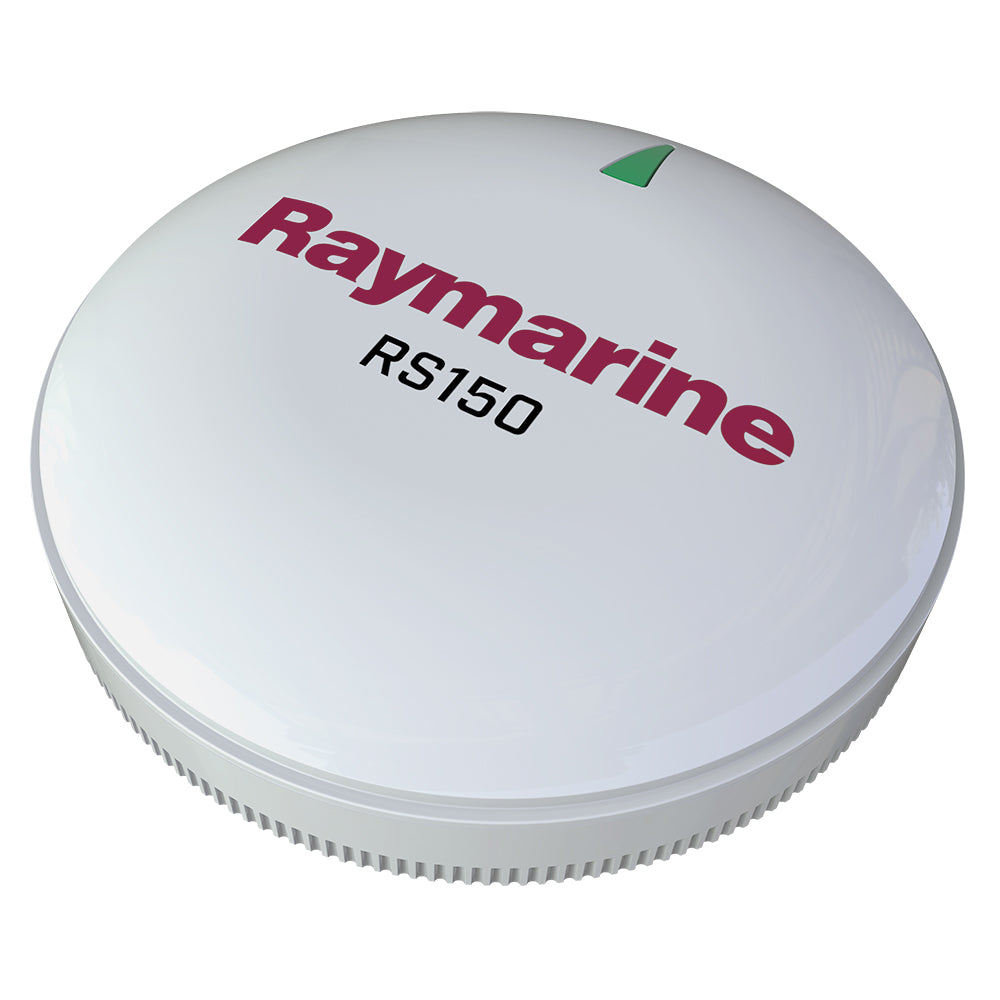

Raymarine RS150 GPS Sensor

Raymarine RS150 GPS Sensor offers exceptional positioning accuracy tailored for marine navigation enthusiasts. This high-performance, 72-channel GPS sensor is designed to seamlessly integrate with Raymarine navigation systems, ensuring you stay on course with confidence.

Key Features:

• 72-channel GPS Receiver: Provides enhanced accuracy and faster updates, even in challenging environments.
• 10Hz Position Updates: Experience rapid position tracking with updates ten times per second for superior navigation reliability.
• GNSS Compatibility: Supports GLONASS, ensuring you receive signals from multiple satellite systems for improved coverage.

Ideal for boaters and marine professionals, this product is supported by Raymarine's commitment to quality, ensuring you have a reliable navigation tool for all your maritime adventures.

Don’t compromise on accuracy; equip your vessel with the Raymarine RS150 GPS Sensor and navigate with confidence!

RS150 GPS Sensor

The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.

Features:

• 72-channel GPS receiver
• Fast 10Hz position updates
• Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
• A GNSS receiver with GLONASS compatibility
• Low power consumption: 30mA (1 LEN)
• SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
• Designed for low profile surface mounting or optional pole mounting

Specifications:

• Nominal supply voltage: 12V D.C. Powered by N2K bus
• Operating voltage range: 8 - 32V DC
• Power consumption: 30 mA max (NMEA LEN = 1)
• Operating temperature: -13ºF to 131ºF (-25ºC to +55ºC)
• Relative humidity: max 93%
• Waterproof: IPx6/7
• Supported connection protocols: SeaTalk^ng: NMEA 2000 (certified) (via DeviceNet adaptor)
• Sensitivity: High sensitivity - acquisition down to -163dBm
• No. of channels: 72
• Positioning System: GPS & GLONASS
• Satellite Differential Type: WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)
• Differential acquisition: Automatic
• Position accuracy (95%): <15M
• Position accuracy with SDGPS (95%): <5M
• Speed accuracy (95%): <0.3kt
• Time to first fix from cold start: <2 minutes (< 45 seconds typical)
• Time to first fix from hot start: < 8 seconds -72 hour hold up battery allows for hot start
• Geodetic Datum: WGS84
