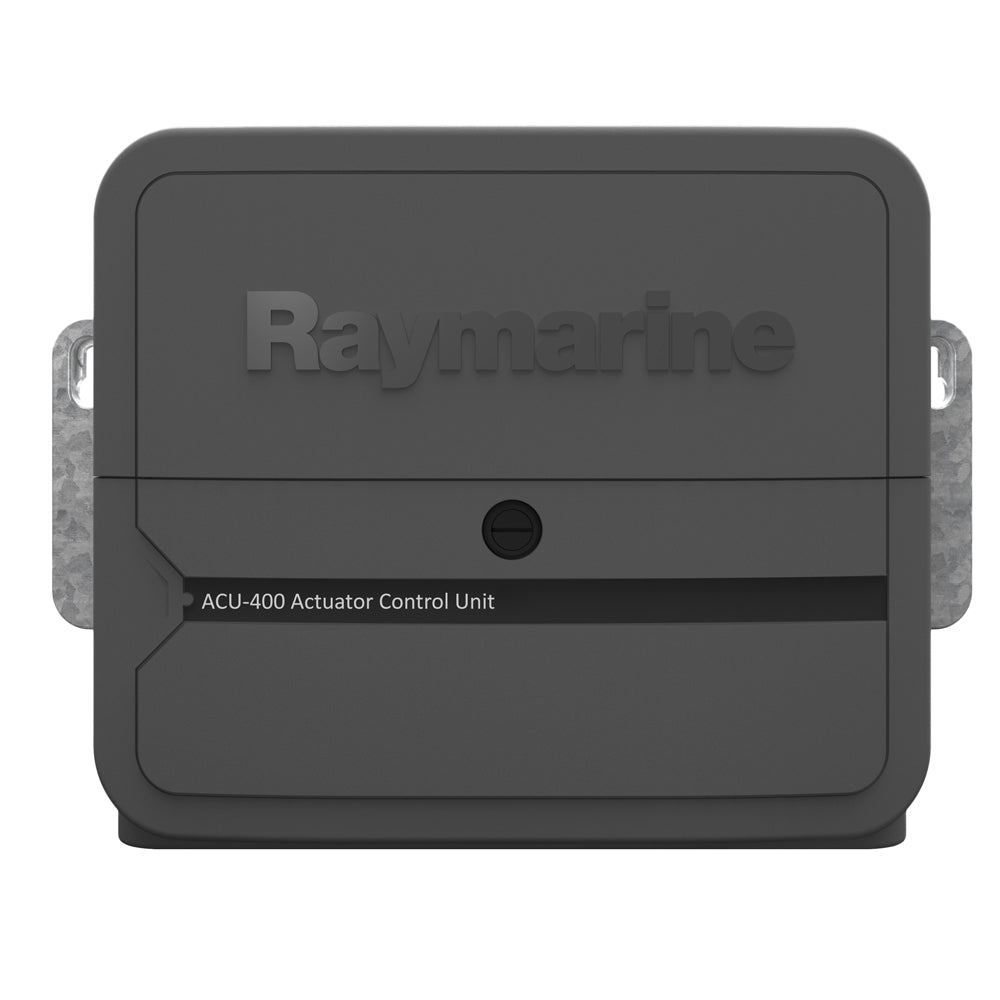

Raymarine ACU-400 Actuator Control Unit
Raymarine ACU-400 Actuator Control Unit offers reliable autopilot control tailored for Type 2 & 3 hydraulic, linear, and rotary mechanical drives. This robust unit delivers dependable drive power while supporting the SeaTalkng bus, ensuring seamless navigation on your vessel.
Key Features:
- Powerful Drive Current Output: Delivers a maximum continuous power of 30 Amps at supply voltage for efficient performance.
- Versatile Voltage Compatibility: Operates on nominal supply voltages of 12V or 24V, with a broad operating voltage range of 10.8V to 31.2V DC.
- Rugged Design: Designed to withstand harsh marine environments with an operating temperature range of -20°C to +55°C and a waterproof drip-resistant rating.
Ideal for marine enthusiasts and professionals, this product is supported by stringent compliance standards, ensuring quality and satisfaction. Upgrade your autopilot system with the Raymarine ACU-400 for enhanced reliability and performance on the water!
Autopilot Control Unit (ACU)The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.
Drive Current Output
Maximum continuous 30 Amps at supply voltage
Drive Clutch Output
- Up to 4 Amp continuous at 12V on 12V systems
- Up to 4 Amp continuous at 24V on 24V systems
- Up to 4 Amp continuous at 12V on 24V systems
Connections
- Includes the M81105 Rotary Rudder Reference
- Sleep switch
- Power
- Drive motor
- Drive clutch
- Ground
- Digital Input / Output (DIO)
Nominal supply voltage
12 V or 24 V
Operating voltage range
10.8V to 31.2V dc
Power Consumption (standby) - Main Power Supply
300 mA (12/24V)
Power Consumption (standby) - SeaTalkng Power Supply
20 mA (12V)
SeaTalkng LEN (Load Equivalency Number)
1
SeaTalkng Power Out
3 Amp at 12V (fuse protected at 3 Amp)
Data Connections
SeaTalkng
Installation Environment
- Operating Temperature: -20°C to +55°C (-4°F to +131°F)
- Storage Temperature: -30°C to +70°C (-22°F to +158°F)
- Relative Humidity: MAX 93%
Waterproof rating
Drip resistant
Dimensions (W x H x D)
285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in)
Weight
2.2kg (4.84lbs)
Conformance
- Europe: 2004/108/EC
- Australia and New Zealand: C-Tick, Compliance Level 2
