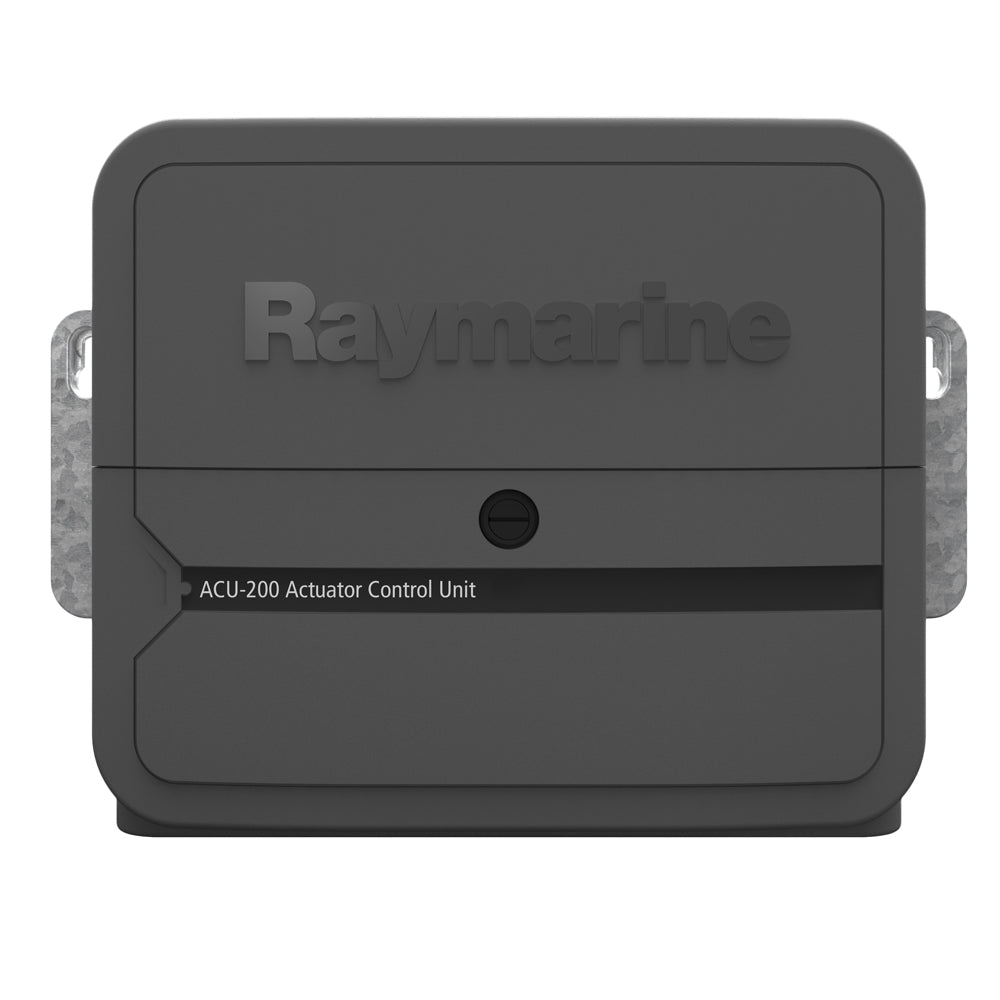

Raymarine ACU-200 Actuator Control Unit
Raymarine ACU-200 by Raymarine offers reliable autopilot drive power tailored for Type 1 hydraulic, linear, and rotary mechanical drives. This robust actuator control unit ensures seamless performance for your marine autopilot system, making your navigation easier and more efficient.
Key Features:
- Max Drive Current Output: Delivers a maximum continuous output of 15 Amps, ensuring powerful performance for a variety of steering systems.
- Versatile Voltage Options: Selectable between 12V and 24V, making it adaptable to various setups.
- Durable Design: Operating temperature range from -20°C to +55°C, and a waterproof rating ensures reliability in challenging marine environments.
Ideal for avid sailors and marine professionals, this product is supported by Raymarine's trusted engineering, ensuring quality and satisfaction. Upgrade your vessel’s autopilot capabilities with the Raymarine ACU-200 and experience unparalleled steering control on the water.
Autopilot Control Unit (ACU)The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.
Drive Current Output
Maximum continuous 15 Amps at supply voltage
Drive Clutch Output
Up to 2.0 A continuous, selectable between 12 /24 V
Connections
-
Includes the M81105 Rotary Rudder Reference
- Sleep switch
- Power
- Drive motor
- Drive clutch
- Ground
Nominal supply voltage
12 V or 24 V
Operating voltage range
10.8V to 31.2V dc
Power Consumption (standby) - Main Power Supply
300 mA (12/24V)
Power Consumption (standby) - SeaTalkng Power Supply
20 mA (12V)
SeaTalkng LEN (Load Equivalency Number)
1
SeaTalkng Power Out
3 Amp at 12V (fuse protected at 3 Amp)
Data Connections
SeaTalkng
Installation Environment
- Operating Temperature: -20°C to +55°C (-4°F to +131°F)
- Storage Temperature: -30°C to +70°C (-22°F to +158°F)
- Relative Humidity: MAX 93%
Waterproof rating
Drip resistant
Dimensions (W x H x D)
285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in)
Weight
2.2kg (4.84lbs)
Conformance
- Europe: 2004/108/EC
- Australia and New Zealand: C-Tick, Compliance Level 2
