Quick AL3 Vertical Windlass w/Drum - 1500W - 12 V - 5/16" Drum
-
Estimated Delivery:Nov 09 - Nov 13
-
Free Shipping: On all orders over $150
Guarantee safe & secure checkout
Quick AL3 Vertical Windlass w/Drum - 1500W - 12 V - 5/16" Drum
Stories
Stories
Stories

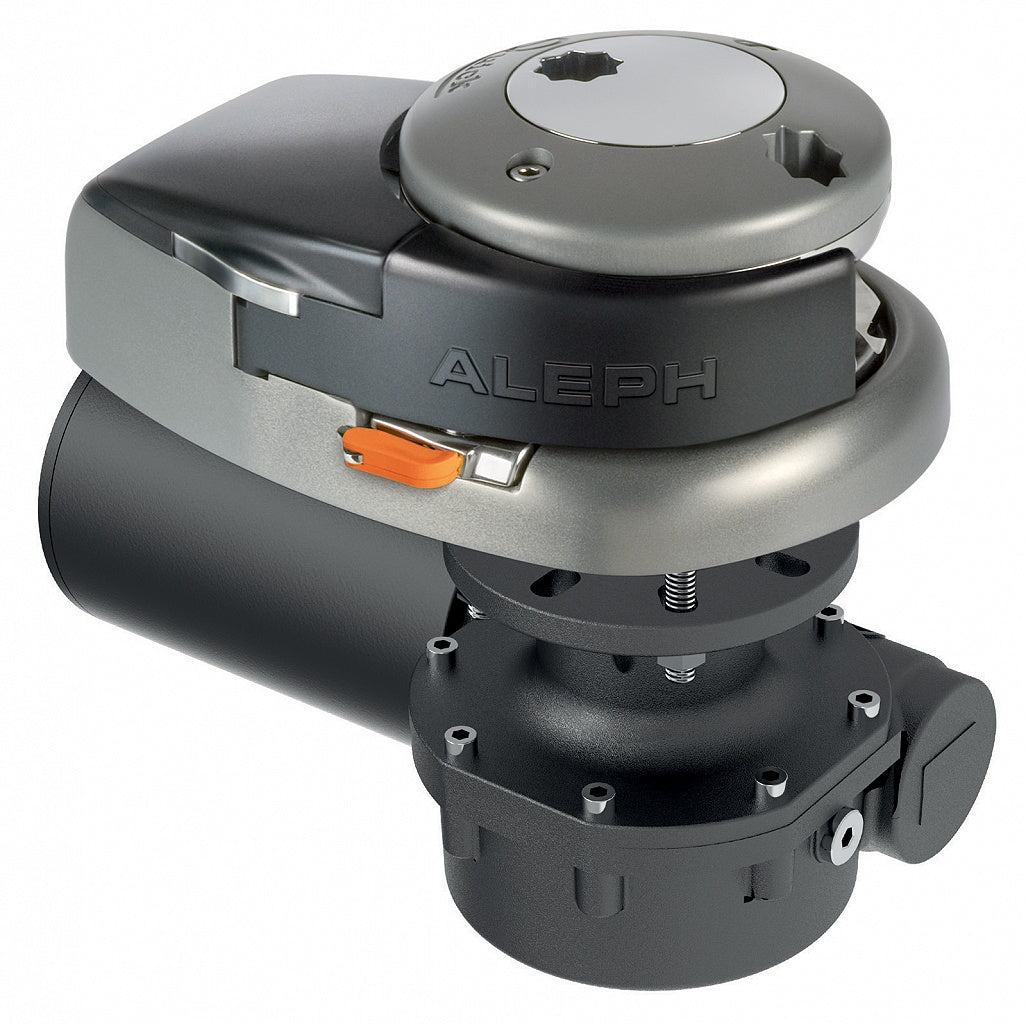

AL3 Vertical Windlass with Drum - 1500W - 12 V - 5/16" Drum
The AL3 is a vertical application windlass with a drum, perfect for boats with limited deck space. This unit is composed of anodized aluminum in hard oxide, which is a durable element when dealing with harsh marine environments. It comes in different variations, such as with or without the drum capstan for rope retrieval, as well as various gypsy sizes for rope and chain retrieval. Equipped with an emergency manual lift system, you can easily retrieve your anchor during instances when you may lose battery power on your boat.
Features:
- Include an IP67 watertight motor
- An anodized aluminum gearbox
- An easy-to-open inspection lid
- This package is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware
Specifications:
- Weight: 54 lbs.
- Dimensions: 17 × 17 × 12 in.
- Drum: Yes
- Gypsy Size: 5/16 in. (8 mm)
- Series: Aleph
- Voltage: 12V
- Wattage: 1500W
- Motor Supply Voltage: 12 V
- Maximum Pull: 2426 lb.
- Maximum Working Load: 1191 lb.
- Working Load: 397 lb.
- Current Absorption at Working Load (1): 85 A
- Maximum Chain Speed (2): 98 ft/min
- Maximum Chain Speed at Working Load (2): 63 ft/min
- Weight – Mini Genius with Drum: 49 lb.
