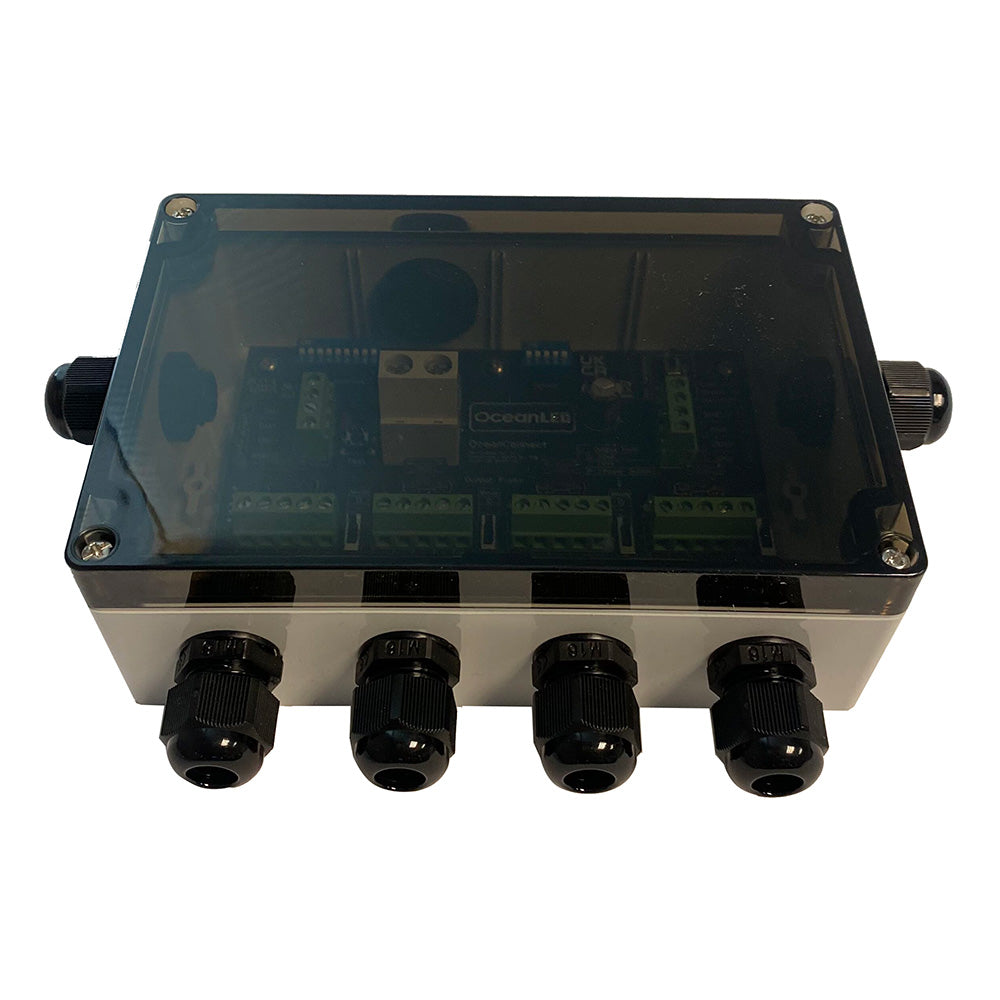

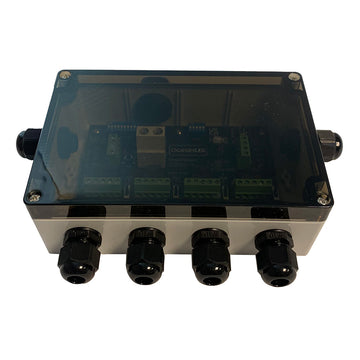

OceanConnect Junction Box
The OceanConnect is a waterproof (IP66) DMX-controlled, low-voltage DC (9–32V) junction box.
The OceanConnect provides one power unit and four individually switched fused power outputs (6 amps per output) to connect DC-powered lights or other DC-switched units. The unit also supports powering and individual addressing of up to four DMX-controlled OceanLED X-Series lights.
Contents:
- 1x OceanConnect unit, including 4x 7.5A blade fuses
- 4x mounting screws
- 1x twin entry cable grommet
- 4x blanking plugs
Specifications:
- Voltage: 12/24V DC (max 32V DC)
- Input/Output Cable Glands: 1x M20-Power In, 4x M16 - DMX In/Out, and Lights Out
- Power Input Terminals Wire Gauge: 8-20 AWG
- DMX In/Out, and Lights Out Terminals Wire Gauge: 12-28 AWG
- Light Outputs: DMX & Power- 4 x individual fused 6 Amp each max
- DMX Input: 1x DMX Input (to connect the DMX controller)
- DMX Output: 1x DMX Output (to link junction boxes in the chain)
- DMX Terminator: Onboard DMX terminator with an on/off switch
Physical Specifications
- Dimensions (Including Cable Glands): 228mm x 174mm x 60mm (9" x 6.8" x 2.3")
- Enclosure: IP66-robust polycarbonate
- Weight: 270g
