PTM-24-22 Charge Module - Only Use with PTMS
The PTM charger provides a significant improvement in system reliability by utilizing multiple independent charger modules that plug into the unit, and should a fault occur in one module, the system continues to operate, thus being considered a “fault”.

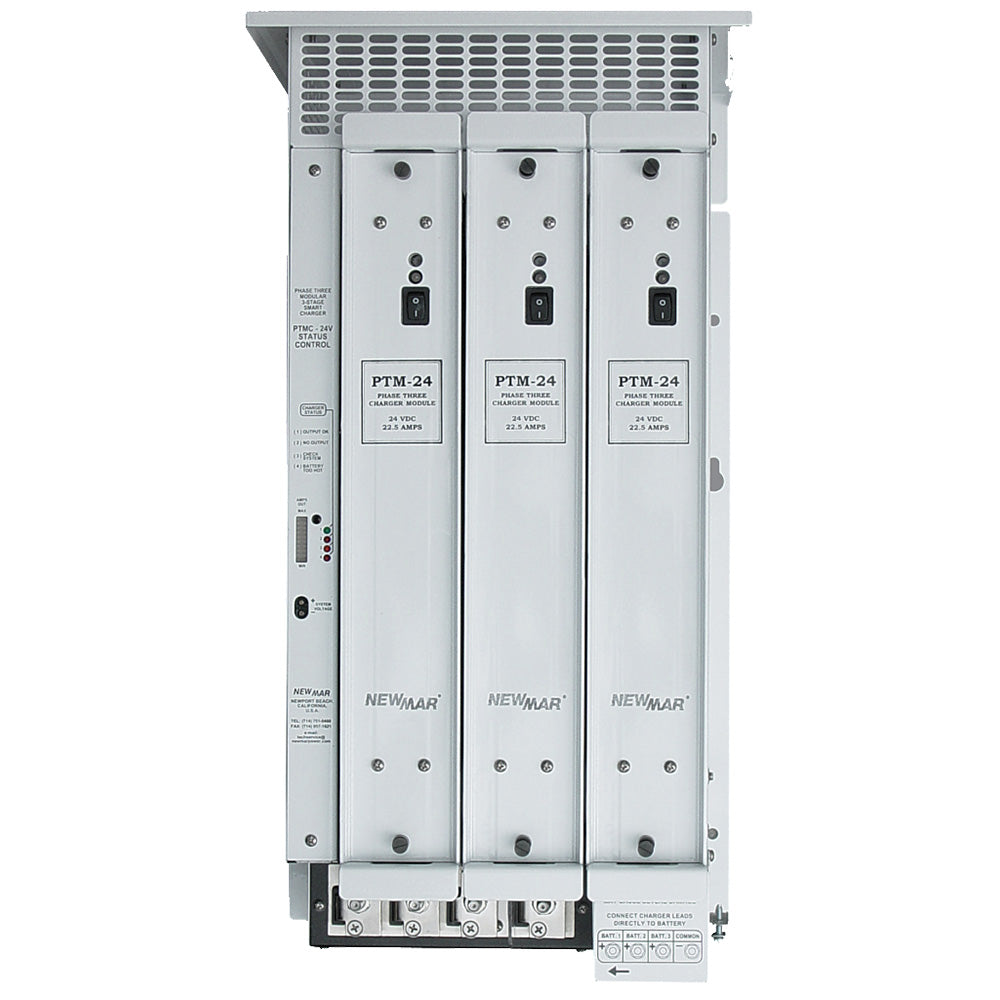

The system consists of a wall-mount case that serves as a connection point to AC input and battery output (3 banks) and contains three front-facing power bays, each accommodating a 22.5-amp charger module that slides and locks in place, creating a 24V, 67-amp charger.
Features:
- Individual Module (24 volt)
Individual Module Specifications:
- Input Voltage/Frequency: 90-264 VAC; 47-63 Hz; derate linearly from 100% output @ 105
- VAC to 80% output @ 90 VAC
- Input Current: 3 amps @ 230VAC; 6 amps @ 115 VAC
- Output Current: 22.5 amps max in Bulk Phase; 20 amps max in Absorption/Float Phases
- Power Factor: .96-.99
- Efficiency: 85% typical
- Protection Features: Input Fuse, Output Fuse, Current Limiting, Over Voltage Protection, Cooling Fan, Automatic Thermal Shutdown/Recovery
- Status Indicators: Output OK/FAULT
- Weight: 6 lbs.
