Newmar PT-80 Battery Charger - The Ultimate Smart Charging Solution for Marine Applications

The Newmar PT-80 Battery Charger delivers advanced charging capabilities for 12-volt systems in various marine applications including workboats, military vessels, commercial vessels, and recreational craft. With its innovative “Smart” battery charging technology, this charger ensures optimal battery performance, making it a reliable choice for automotive/RV users and marine enthusiasts alike.

Featuring:

• Smart Charging Technology: Interacts with batteries to provide precise charging based on individual needs, extending battery life and performance.
• Robust Build Quality: Constructed for durability, it withstands harsh marine environments, ensuring long-lasting reliability.
• Efficient Power Management: Prevents overcharging and optimizes energy use, making it an environmentally friendly choice for marine and RV applications.

Perfect for marine enthusiasts, commercial operators, and military vessels, the Newmar PT-80 is backed by a commitment to quality and performance. With its advanced features and reliable performance, you can trust this battery charger to keep your systems running smoothly, whether you're out on the water or on the road. Experience peace of mind with a 2-year warranty that guarantees satisfaction.

Upgrade your charging experience today with the Newmar PT-80 Battery Charger!

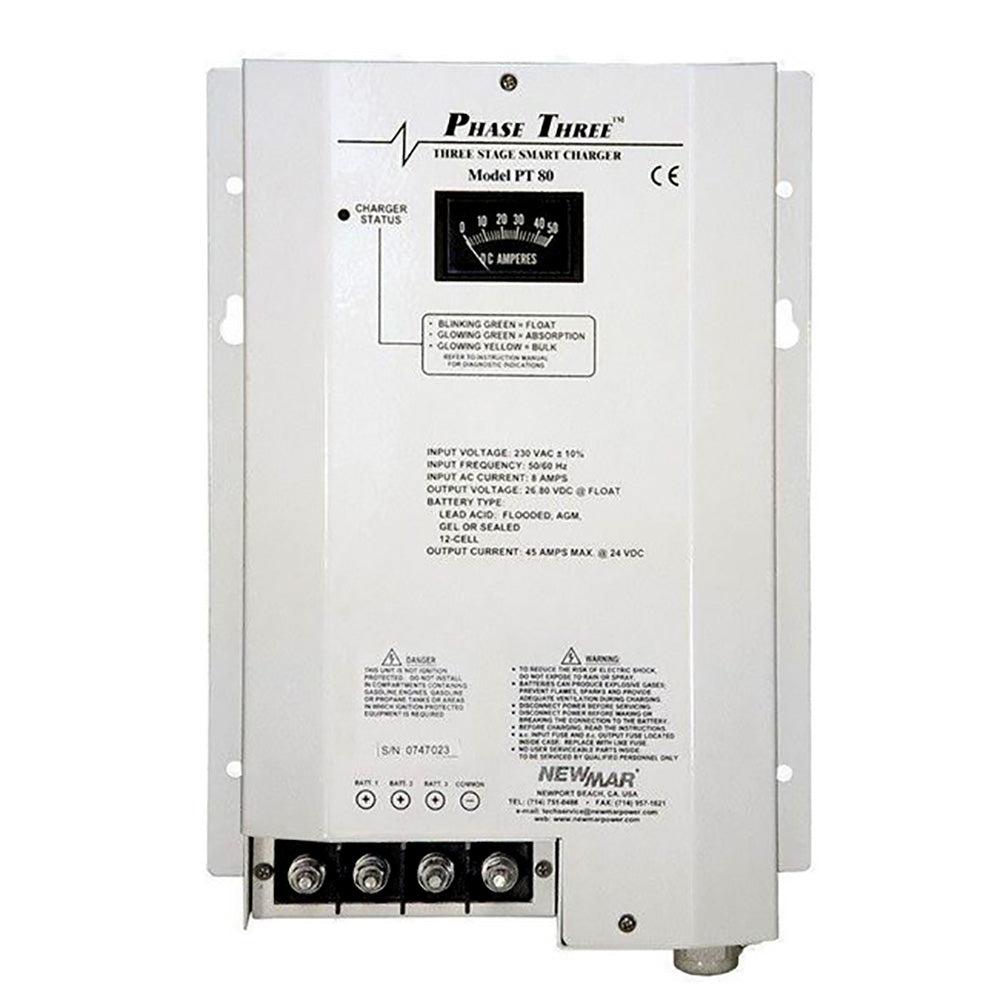

PT-80 Battery Charger

Newmar’s Phase Three Series Battery Chargers employ “Smart” battery charging technology for 12-volt systems aboard marine applications including workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.

A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. This model is housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.

Features:

• 12-volt model
• “Smart” circuitry provides three-stage charging – bulk, absorption, and float
• Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages
• Multiple isolated output banks; ammeter indicates total output current. (Except PT-7)
• The optional sensor adjusts the output voltage based on battery temperature. (Except PT-7)
• Current limitations prevent damage from overloading
• Clean well-regulated output can be used as a power supply; can power loads directly without a battery in line
• Built to last – rugged stainless steel case with a durable white powder coat finish, an optional drip shield, and marinized internal circuitry
• Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield
• ABS-type approval for battery charging and power supplies

Specifications:

• Input VAC (50-60 Hz.): 90-264
• Input Amps @ Full Load: @ 115 VAC: 12, @ 230 VAC: 7
• Power Factor: .95@230V or .98@115V
• Max Output Amps: 80
• Output Banks: 3
• Battery Capacity (Amp-Hours): 160-800
• Operating Temp. Rating Reference: T-7
• Case Size Reference: A-5
• Case Size (H x W x D): 16.8C x 9.6 x 6.1C inches (42.7C x 24.4 x 15.5C centimeters) *Note with Dripshield installed C add 1” (2.54 cm) to height and .5” (1.27 cm) to depth
• Weight Lbs./Kg: 15.2/7
• Optional Temp. Sensor Model: TCS-12/24
• Remote Panel Model: RP
• Equalize Option: Yes
• Output Indicator Reference: M-3
• Compliance Reference: CE

Temperature Rating References:

• Temperature: -10 degrees C to +60 degrees C
• Derate Linearly From 100% @ 50 degrees C to 80% @ 60 degrees C

Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation):

• Gel-Cell: 14.0 VDC Charge @ 50% load and 13.6 VDC Float @ .5 amp load
• Flooded/AGM: 14.2 VDC Charge @ 50% load and 13.4 VDC Float @ .5 amp load

Compliance References:

• CG: USCG CFR 183.410 (Ignition protected)
• CE: Carries the CE mark
• ABS: PT Series meet SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13

Options:

• Remote Panel, model RP, for use with all models except PT-7 and PT-40U (LEDs indicate charger output stage. Manual re-initialization of three-stage charge cycle. With 25′ of cable. Panel dimensions: 3″ H x 4.75″ W)
• Temperature Compensation Sensor, Model TCS 12/24, for use with all models except PT 7 (-5 mV per cell degrees C, 25′ cable (40’cable optional)
