Reliable Power with the Newmar 115-24-35CD Power Supply

The Newmar 115-24-35CD Power Supply delivers superior power reliability for 24-volt communication and navigation equipment onboard commercial vessels. Designed for rugged environments, this power supply ensures your essential devices operate smoothly, even under demanding conditions.

Featuring:

• Robust Construction: Built with a super-rugged design, this power supply withstands harsh marine environments.
• Pure Noise-Free Output: The proven linear circuit design guarantees a clean power supply, minimizing interference for your critical systems.
• Long Service Life: Engineered for durability, the 115-24-35CD promises extended operational life, making it a reliable choice for long-term use.

Perfect for commercial vessels and marine applications, this power supply is backed by Newmar's commitment to quality and performance. With its excellent regulation and high-efficiency features, you can trust that your navigation and communication systems will function flawlessly. Experience the peace of mind that comes with reliable power—order your Newmar 115-24-35CD today!

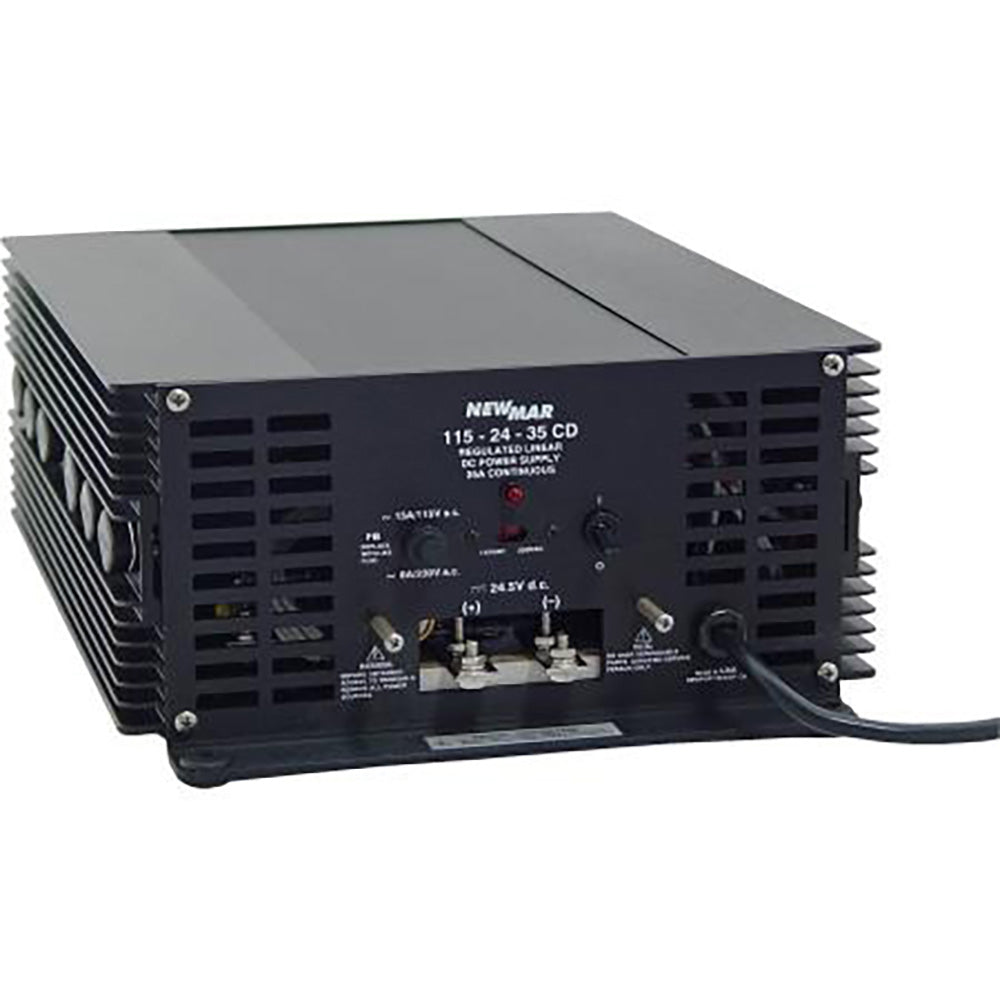

115-24-35CD Power Supply

This super-rugged DC power supply is ideal for powering 24-volt communication and navigation equipment onboard commercial vessels where reliability is essential. The proven linear circuit design provides pure noise-free output and a long service life.

Features:

• Excellent Regulation and Ripple Spec (output voltage maintained within 1% under all rated line and load conditions)
• Polyurethane conformal coated PC board and corrosion-resistant heavy-duty aluminum case with integral shock mounts assure survival in hostile environments
• The heat generated by semi-conductors is extracted and dissipated by large heat sink fins for cool operation
• Protection: overvoltage, current limit; (set @ 105% of intermittent rating), thermal overload, and input/output fusing
• Thermally activated cooling fan on “CD” units

Specifications:

• Nominal Input/VAC: 115/230
• Maximum Input Current @115: 5.5
• Maximum Input Current @230: 2.5
• Output Amperage (Intermittent): 10
• Output Amperage (Continuous): 4
• Weight: 20 lbs. / 9.1 kg

Case Size:

• H x W x D (inch): 5.7” x 4.8” x 16.3”

Input Range

105-125/210-250 VAC (selectable), 50-60 Hz; Derate to 50% output below 110 and 220 VAC

Operating Temperature

C.D. Units - 0-65 degrees C, Derate linearly from 100% @ 50 degrees C to 50% @ 65 degrees C thermal Shutdown @ 85 degrees C case temperature

Duty Cycle:

• Intermittent: 20 minutes max on time, 20% duty
• Continuous: 24 hours/day 100% Duty

Options:

• Modify for use as a battery charger
• The output voltage is adjusted (see Output Voltage for range)
• Transfer relay for back-up battery in event of power failure (ERC option)

Output Voltage:

• 24.5 VDC (Internally adjustable 21-27.5 VDC)
• Ripple: 70mV P-P (@ 110-125 / 220-250 VAC input)
• 1% Line and Load (@ 110-125 / 220-250 VAC input)

Mechanical:

• Powder-coated aluminum heat sink case
• Front panel terminal block
• Heavy-duty mounting flange
• Conformal-coated PC board
