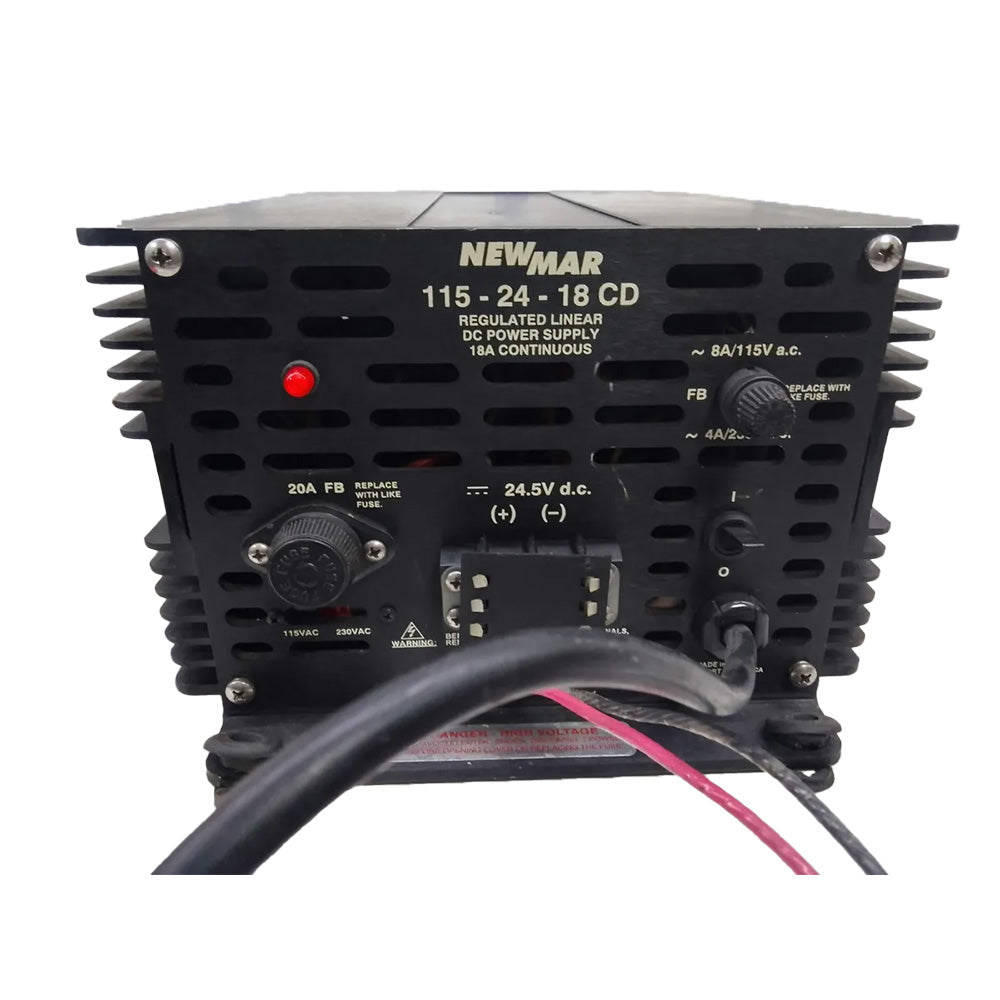

Newmar 115-24-18CD Power Supply

Regular price $2,190.33
Sale price $2,190.33 Regular price
Unit price

Stories

Stories

Stories

Product description
Shipping & Return

Newmar 115-24-18CD Power Supply

The Newmar 115-24-18CD Power Supply delivers superior reliability for commercial vessels requiring robust 24-volt communication and navigation equipment. This high-performance power supply is designed specifically for the Automotive/RV market, ensuring stable and efficient power delivery.

Featuring:

  • Excellent Regulation and Ripple Spec: Output voltage is maintained within 1% under all rated line and load conditions, ensuring consistent performance.
  • Durable Construction: Engineered for long-lasting use in demanding marine environments, protecting against harsh conditions.
  • Compact Design: Space-efficient structure allows for easy installation in various settings, making it ideal for tight spaces on your vessel.

Perfect for marine professionals who rely on dependable power for navigation and communication equipment, this power supply is backed by Newmar’s reputation for quality and performance. Experience peace of mind knowing you have a robust solution for your power needs.

Order the Newmar 115-24-18CD Power Supply today and equip your vessel with the best in power supply technology!

Newmar 115-24-18CD Power Supply

Newmar 115-24-18CD Power Supply offers superior reliability tailored for commercial vessels needing robust 24-volt communication and navigation equipment.

Key Features:

  • Excellent Regulation and Ripple Spec: Output voltage is maintained within 1% under all rated line and load conditions for optimal performance.
  • Rugged Build: Equipped with a polyurethane conformal coated PC board and corrosion-resistant aluminum case, ensuring durability in hostile marine environments.
  • Advanced Protection Features: Includes overvoltage, current limit, thermal overload, and input/output fusing to safeguard your equipment.

Ideal for marine professionals and navigators working in demanding conditions, this power supply is supported by a thermal shutdown guarantee and long service life, ensuring you stay powered even in the toughest environments.

115-24-18CD Power Supply

This super-rugged DC power supply is ideal for powering 24-volt communication and navigation equipment onboard commercial vessels where reliability is essential. The proven linear circuit design provides pure noise-free output and a long service life.

Features:

  • Excellent Regulation and Ripple Spec (output voltage maintained within 1% under all rated line and load conditions)
  • Polyurethane conformal coated PC board and corrosion-resistant heavy-duty aluminum case with integral shock mounts assure survival in hostile environments
  • The heat generated by semi-conductors is extracted and dissipated by large heat sink fins for cool operation
  • Protection: overvoltage, current limit; (set @ 105% of intermittent rating), thermal overload, and input/output fusing
  • Thermally activated cooling fan on “CD” units

Specifications:

  • Nominal Input/VAC: 115/230
  • Maximum Input Current @115: 5.5
  • Maximum Input Current @230: 2.5
  • Output Amperage (Intermittent): 10
  • Output Amperage (Continuous): 4
  • Weight: 20 lbs. / 9.1 kg

Case Size:

  • H x W x D (inch): 5.7” x 4.8” x 16.3”

Input Range

105-125/210-250 VAC (selectable), 50-60 Hz; Derate to 50% output below 110 and 220 VAC

Operating Temperature

C.D. Units - 0-65 degrees C, Derate linearly from 100% @ 50 degrees C to 50% @ 65 degrees C thermal Shutdown @ 85 degrees C case temperature

Duty Cycle:

  • Intermittent: 20 minutes max on time, 20% duty
  • Continuous: 24 hours/day 100% Duty

Options:

  • Modify for use as a battery charger
  • The output voltage is adjusted (see Output Voltage for range)
  • Transfer relay for back-up battery in event of power failure (ERC option)

Output Voltage:

  • 24.5 VDC (Internally adjustable 21-27.5 VDC)
  • Ripple: 70mV P-P (@ 110-125 / 220-250 VAC input)
  • 1% Line and Load (@ 110-125 / 220-250 VAC input)

Mechanical:

  • Powder-coated aluminum heat sink case
  • Front panel terminal block
  • Heavy-duty mounting flange
  • Conformal-coated PC board
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
