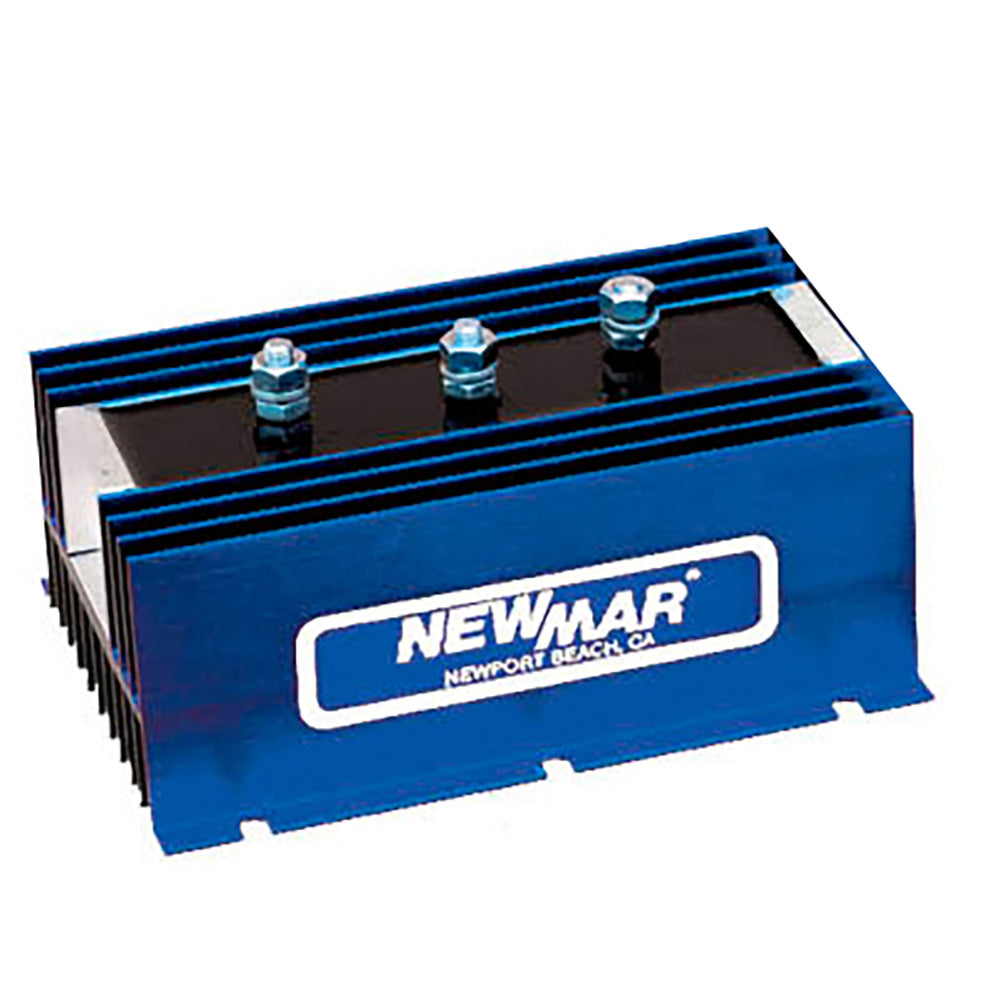

Newmar 1-2-120 Battery Isolator
Newmar 1-2-120 Battery Isolator by Newmar offers efficient battery management tailored for marine and automotive applications. This heavy-duty isolator enables multiple batteries to charge automatically from one or two alternators while preventing the unwanted discharge of one battery into another.
Key Features:
- Heavy-duty construction: Built to withstand harsh environments, ensuring durability and longevity.
- Rust-proof anodized aluminum case: This protective casing enhances heat dissipation and prevents corrosion.
- Rated for up to 48 volts DC: Versatile compatibility with various negative ground systems, perfect for any setup.
Ideal for marine enthusiasts, RV users, and off-road adventurers, this product is supported by a continuous duty cycle guarantee, ensuring quality and satisfaction. Upgrade your battery management system with the Newmar 1-2-120 Battery Isolator and experience unmatched performance!
1-2-120 Battery Isolator
This heavy-duty isolator allows multiple batteries to charge automatically from one or two alternators and prevents the discharge or ‘dumping” of one battery into another. Each battery is charged according to its need without overcharging and is rated for 12-, 24-, or 36-volt, negative ground DC systems. This model is a 120-amp alternator.
Features:
- Conservatively rated diodes and a rustproof anodized aluminum heat sink case
- Heavy duty construction
- Rated for systems up to 48 volts DC, negative ground
- Rust-proof anodized aluminum case
- Stainless steel mounting hardware provided
- Protective covers provided for terminals
Specifications:
- Operating Temperature: -40 to +80°
- Duty Cycle: Continuous rating to 50° C Derate linearly to 70% @ 80° C
- Temp. Rise: 5° C at full rated current (mount vertically for optimum cooling)
- Voltage Drop: 0.7V @ 50% load, 0.9V @ full load
- Alternator Sources: 1
- Battery Bank: 2
- Max. Amperage Input Capacity: 120
- Stud Terminal Size: 6mm
- Dimensions (L x W x H): 6.5" x 4.5" x 3.1"
- Weight: 3 lbs.
Note: These battery isolators are not compatible with self-exciting alternators. The alternator must have an external excitation lead. Please consult the manufacturer of your alternator if you are unsure of your configuration
