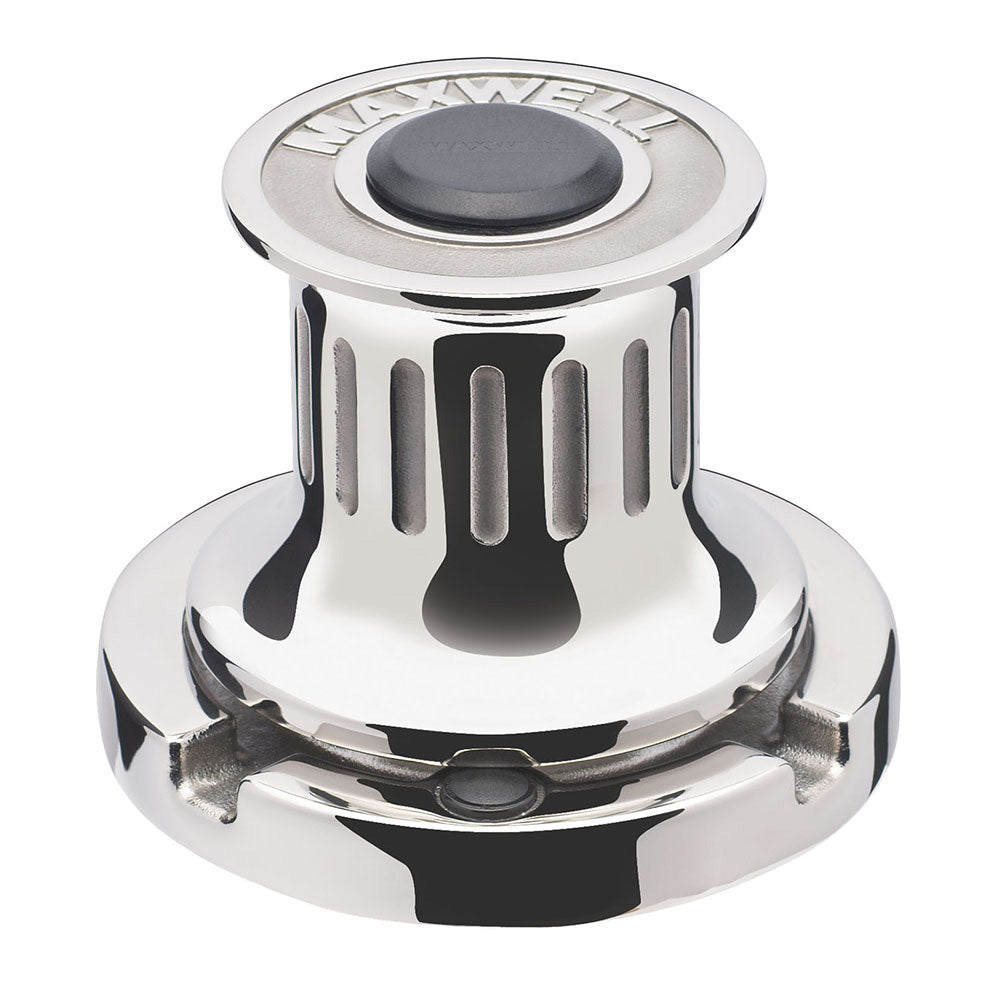

VC 1000 12V Vertical Capstan Windlass
The stainless steel (AISI 316) fluted capstan VC series is designed for simple, low-cost anchor recovery on smaller boats and rope hauling on larger vessels.
Features:
- The vertical design suits smaller powerboats or sailboats and can be utilized for anchor rodes, as a docking capstan on larger craft, or as auxiliary line hauling from any direction
- High-quality, hard-wearing stainless steel (AISI 316) above deck components
- Functional rope hauling from any direction using a fluted, snag-free warping drum for positive control of all ropes
- Simplified through deck installation by modular design and precise alignment of the gearbox to the top works
- Alternative gearbox/motor positions accommodate virtually all installation situations
- Anodized aluminum gearbox and spacer on VC 500 and VC 1000 models
- Heavy-duty, dual-direction motors, designed for marine operations
- Easily disassembled for servicing
- Can be mounted horizontally for use as a pot hauler or Davit winch
Specifications:
- Maximum Pull: 700 kg (1540 lbs)
- Static Hold: 1200 kg (2640 lbs)
- Line Speed (Normal Working): 20m/min (65ft/min)
- Power Supply (DC): 12V
- Motor (Watt): 1000 W
- Net Weight (DC): 18 kg (40 lbs)
- Hydraulic Pressure: 100 bar (1450 psi)
- Hydraulic Flow: 20 l/min (5.3 US gal/min)
- Net Weight (Hydraulic): 11 kg (24 lbs)
