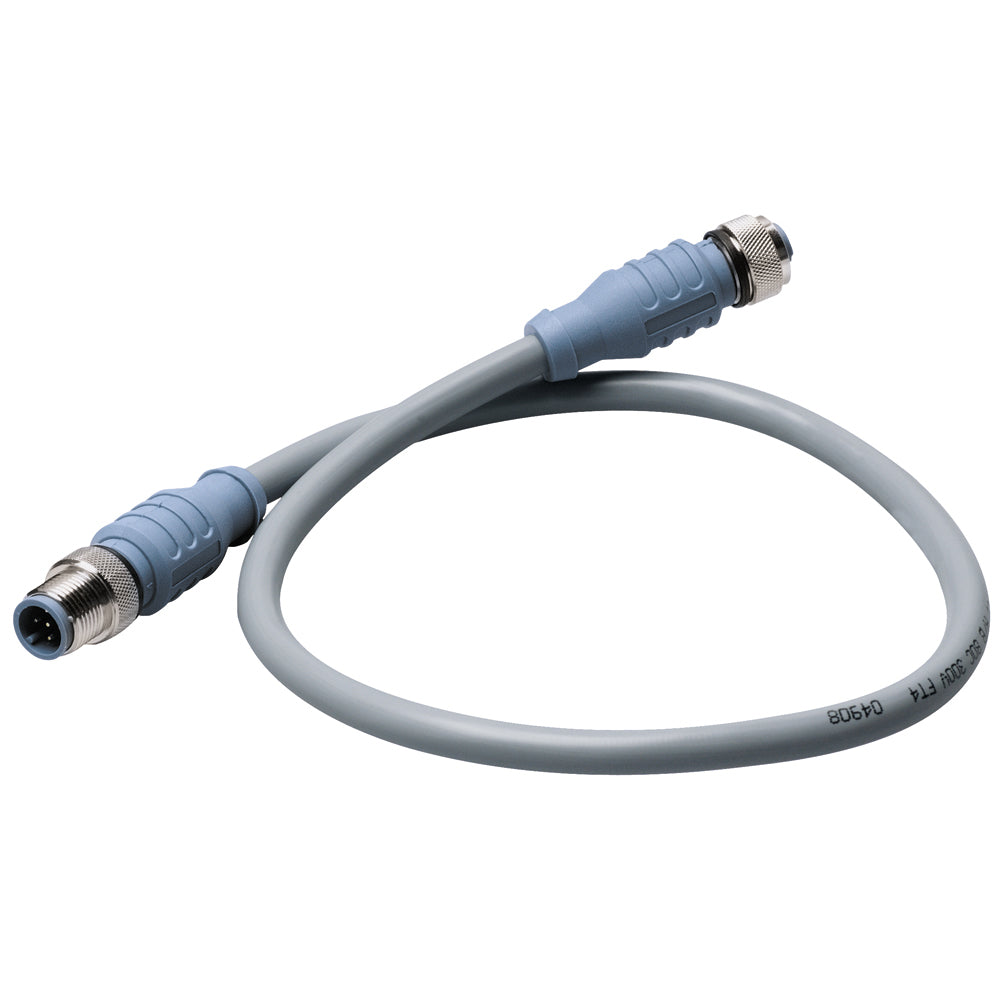

Maretron Micro Double-Ended Cordset - 3M
Maretron Micro Double-Ended Cordset - 3M offers exceptional connectivity and reliability tailored for marine and industrial applications. This high-performance cordset is designed to withstand harsh environments while delivering optimal electrical performance.
Key Features:
- Durable Construction: Made with thermoplastic PUR and PVC, this cordset ensures longevity and resistance against wear and tear.
- High Electrical Ratings: With a current rating of 4.0 Amps and voltage rating of 250V, it efficiently handles demanding power needs.
- Advanced Shielding: Features three levels of foil shielding for both power and data pairs, ensuring minimal interference and reliable data transmission.
Ideal for marine electronics and industrial setups, this product is supported by NMEA 2000 approval, ensuring quality and satisfaction with every use.
Micro Double-Ended Cordset - 3M
Mechanical
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Connector Outside Diameter: 0.59"
Electrical
- Current Rating: 4.0 Amps
- Voltage Rating: 250 V
Cable - Outer Jacket Mat/Color: PVC/Gray
- Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
- Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
- Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Environmental
- Protection Class: IEC IP68, NEMA 1,3,4,6P
- Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
Approvals - (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
AWM 80 deg C 300V - (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
AWM I/II A/B 80C 300V FT4 - NMEA: NMEA 2000 Approved
