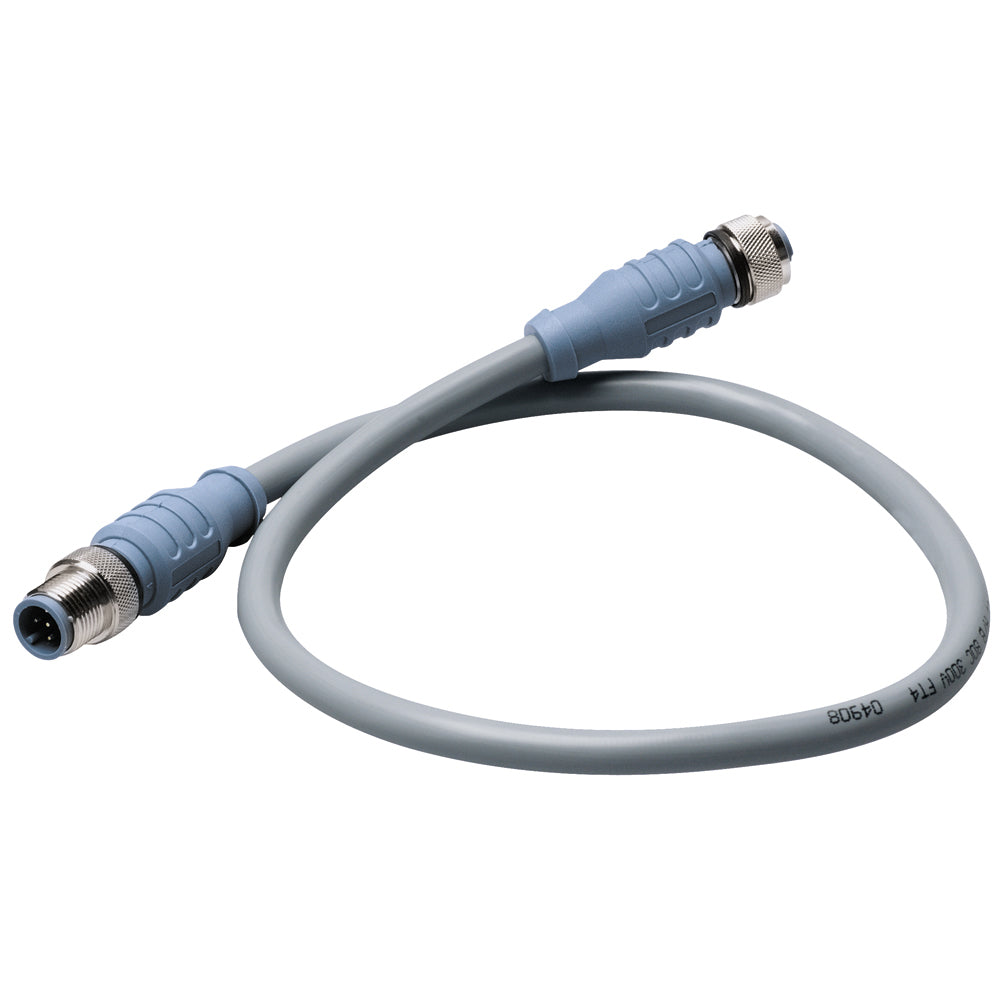

Maretron Micro Double-Ended Cordset - 1 Meter
Maretron Micro Double-Ended Cordset - 1 Meter offers reliable electrical connectivity tailored for marine and industrial applications. This top-quality cordset features a robust design, ensuring secure connections in challenging environments.
Key Features:
- Durable Construction: Made from thermoplastic PUR with a blue-gray molded body, ensuring longevity in harsh conditions.
- Outstanding Electrical Performance: Rated for 4.0 Amps and 250 Volts, suitable for various electrical systems.
- Excellent Environmental Protection: With an IEC IP68 and NEMA ratings, this cordset is water and dust resistant, operating effectively from -40°F to 176°F.
Ideal for marine technicians and outdoor applications, this product is backed by NMEA 2000 approval, ensuring quality and satisfaction. Upgrade your connectivity solutions today with the Maretron Micro Double-Ended Cordset, and experience unmatched reliability and performance!
Micro Double-Ended Cordset - 1M
Mechanical
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Connector Outside Diameter: 0.59"
Electrical - Current Rating: 4.0 Amps
- Voltage Rating: 250 V
Cable - Outer Jacket Mat/Color: PVC/Gray
- Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
- Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
- Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Environmental
- Protection Class: IEC IP68, NEMA 1,3,4,6P
- Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
Approvals - (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
AWM 80 deg C 300V - (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
AWM I/II A/B 80C 300V FT4 - NMEA: NMEA 2000 Approved
