Lenco 9 Inch by 9 Inch Edgemount Trim Tab Kit with LED Indicator Switch Kit 12 Volt

Enhance your boating experience with the Lenco 9 Inch by 9 Inch Edgemount Trim Tab Kit. Designed for superior performance, this trim tab kit features an edge mount that allows for easy installation at the trailing edge of your boat, significantly requiring 4 inches less transom height compared to standard mount options. This innovative design makes it an essential addition to your vessel.

The Lenco brand is synonymous with quality, providing marine products that are engineered for performance and reliability. This trim tab kit not only enhances the ride quality of your boat but also improves overall handling, making it a must-have for any serious boater.

• Easy Installation: The edge mount design simplifies the setup process.
• Improved Performance: Experience better ride quality and handling on the water.
• LED Indicator Switch: The included 12-volt LED indicator switch provides easy monitoring.
• Quality Assurance: Manufactured by Lenco Marine, known for their high standards in marine technology.

Don’t settle for less when it comes to your boating experience. Upgrade to the Lenco 9 Inch by 9 Inch Edgemount Trim Tab Kit and transform the way your boat rides and performs. Whether you’re cruising or navigating rough waters, this kit is designed to deliver unmatched stability and control.

Order now and experience the difference that quality trim tabs can make on your next boating adventure!

Edge Mount

Mounts the actuator at the trailing edge of the plane, requiring 4" less transom height than standard mount

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious.

• Instant response electric actuators for precise control

• Everything is fully submersible, maintenance-free and sealed for life

• Self-locking ballscrew will not drift, even while backing down

• 12-gauge laser cut stainless steel trim tab planes

• High-impact corrosion-proof mounts look great through years of abuse

• Clean, time and space-saving installation

• Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

• 316 super buff stainless steel rams

Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab Systems
Features:

• Self-contained, sealed keypad

• Self-contained, sealed control box module

• Fade/smudge-proof, laser engraved graphics

• Plug & play switch wiring harness connector

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75"

• Built-in retract feature returns tabs to a fully retracted position when power is removed

• 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times

• Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight

• 12 & 24-volt compatibility

• Includes Self-Check Feature

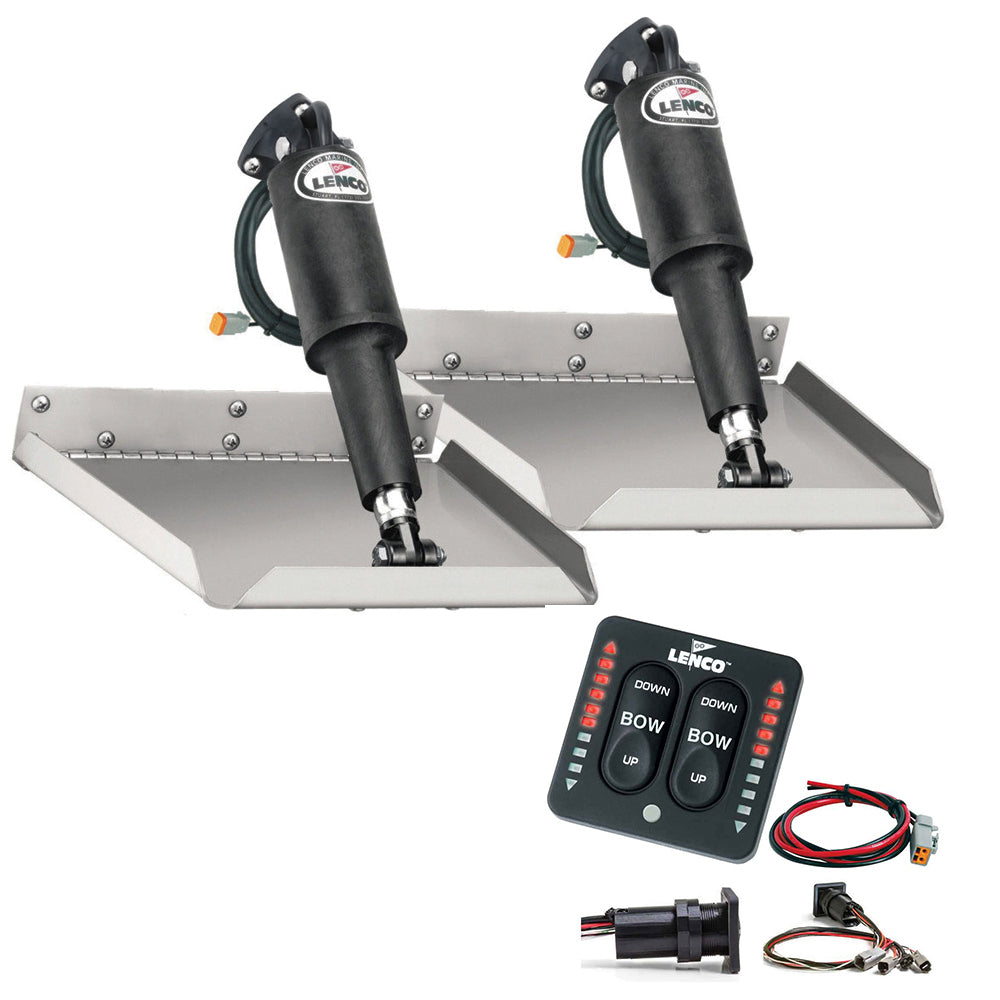

Each Kit Includes:

Tactile LED Indicator Switch Kit

2 Actuators with 6' lead & Deutsch Plugs

2 20' Actuator Extension Wiring Harness

2 12 gauge Stainless steel trim tab planes

2 Upper Mounting Bracket with Gland Seal

2 Lower Mounting Bracket

All stainless steel mounting hardware
