Lectrotab XKA Trim Tab Kit With ALC1 Control 12 x 9

Upgrade your vessel’s performance with the Lectrotab XKA Trim Tab Kit featuring the ALC1 control. Built from durable stainless steel, these trim tabs deliver unmatched strength and reliability for smooth, confident handling in a variety of water conditions.

The 12 x 9 inch trim tabs are designed to provide precise lift and stability, helping you achieve faster planing, reduced bow rise, and improved tracking at speed. The continuous rolled and pinned hinge eliminates welding, delivering a stronger, more durable construction that resists corrosion in harsh marine environments.

Key Benefits

• Stainless steel construction for superior strength and long-lasting performance.
• Continuous rolled and pinned hinge eliminates welding for enhanced durability and reliability.
• ALC1 control delivers intuitive, precise trim adjustments for optimum handling.
• 12 x 9 inch tabs sized to deliver balanced lift and improved stability on a wide range of boats.
• Corrosion-resistant hardware designed to withstand demanding saltwater and freshwater use.

Whether you’re cruising, pulling skiers, or navigating choppy conditions, the Lectrotab XKA Trim Tab Kit with ALC1 control helps you maintain optimal trim, reduce porpoising, and enjoy a smoother, more confident ride. This kit is engineered for straightforward installation with Lectrotab’s proven engineering and quality.

Upgrade your boat today with the Lectrotab XKA Trim Tab Kit and experience enhanced control, stability, and performance on every voyage.

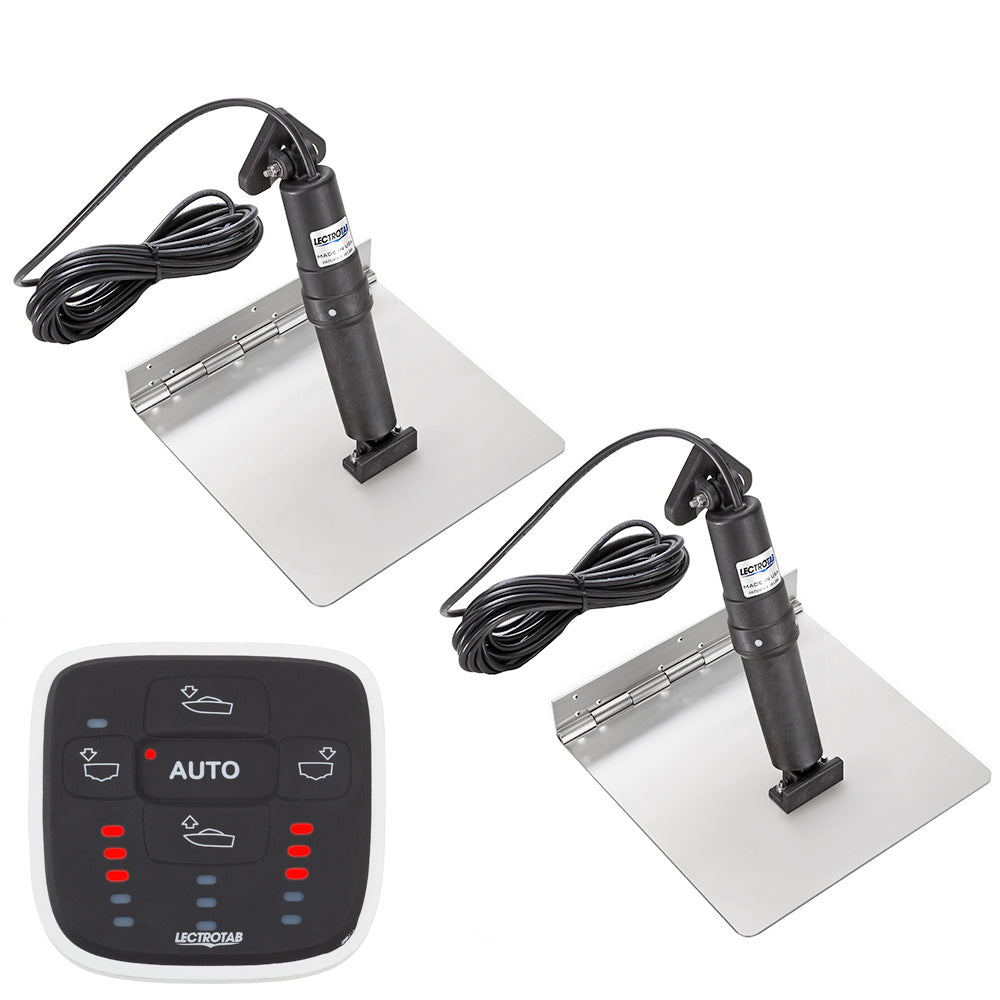

XKA Stainless Steel Trim Tab Kit with ALC-1 Control - 12 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm)
• Boat Length - 18' to 29' (5.5 to 8.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit
